EDGE EVO Hi-O Networked Controller
EH400
82000-920 C.0
INSTALLATION GUIDE 6 ©2009 - 2011 HID Global Corporation. All rights reserved.

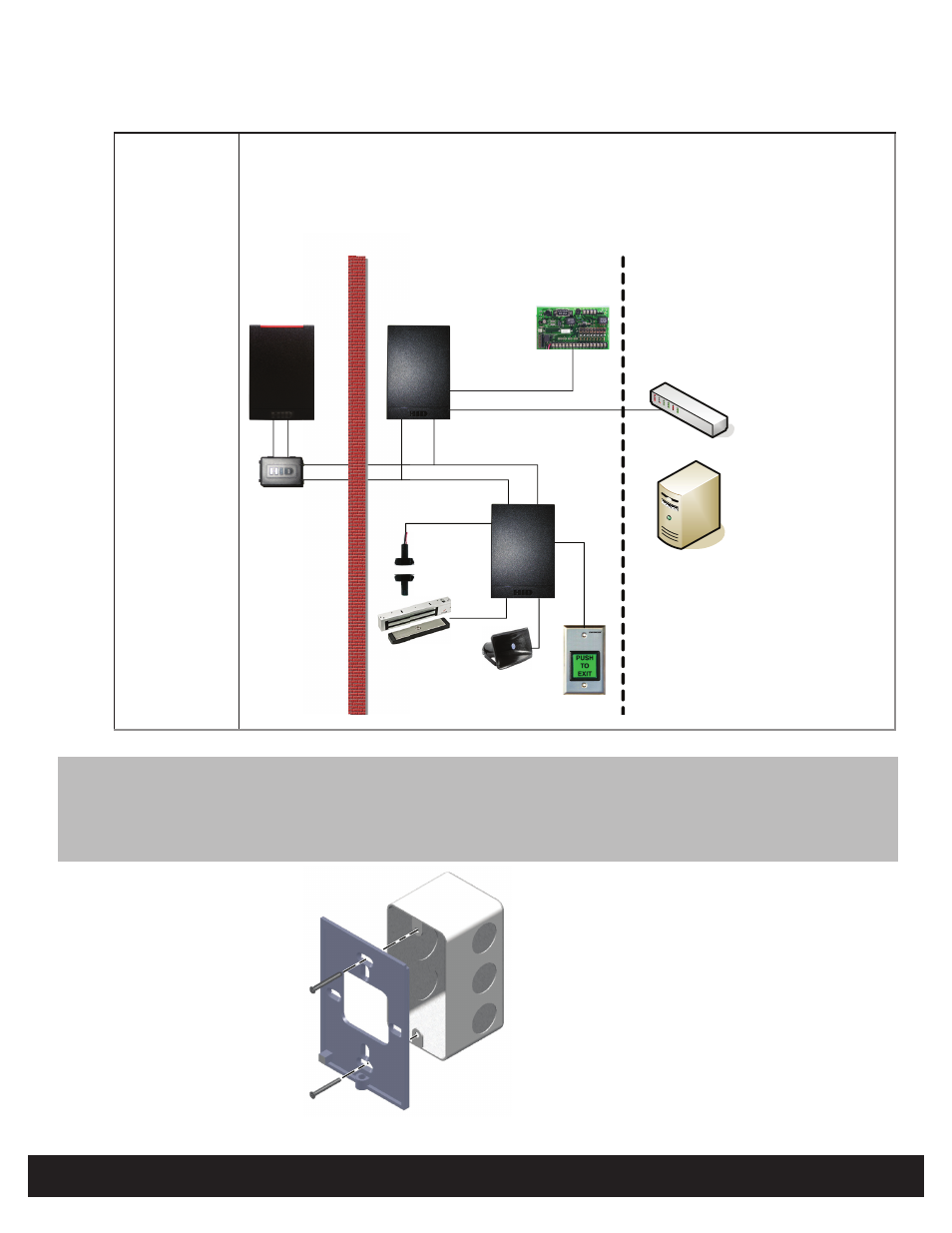

2 The Hi-O Networked Controller power is derived from an external +12VDC or +24VDC power supply.
• Hi-O CANbus connections to the Hi-O Networked Controller includes the CAN V+ and CAN GND
output connections.
• Insert a voltage converter module between the CANBus and Hi-O iCLASS reader.
• The Hi-O Networked Controller is connected directly to the Ethernet switch without a PoE injector.
Unprotected
Area
Protected Area
Physical Access
Control Server
(real-time functions
not required )
Remote Area
CANbus Data
Ethernet Switch
Ethernet Data
Door Position
Switch
Magnetic Lock
REX Switch
Hi-O iCLASS
Reader
Door
Module
Local Sounder
Exit Alarm
Hi-O Networked
Controller
ted
Magne
SS Hi-O N
Co 12 - 24VDC
Power Supply
Voltage
Module
CANbus Power
Mounting
Junction box not included.
2
