6

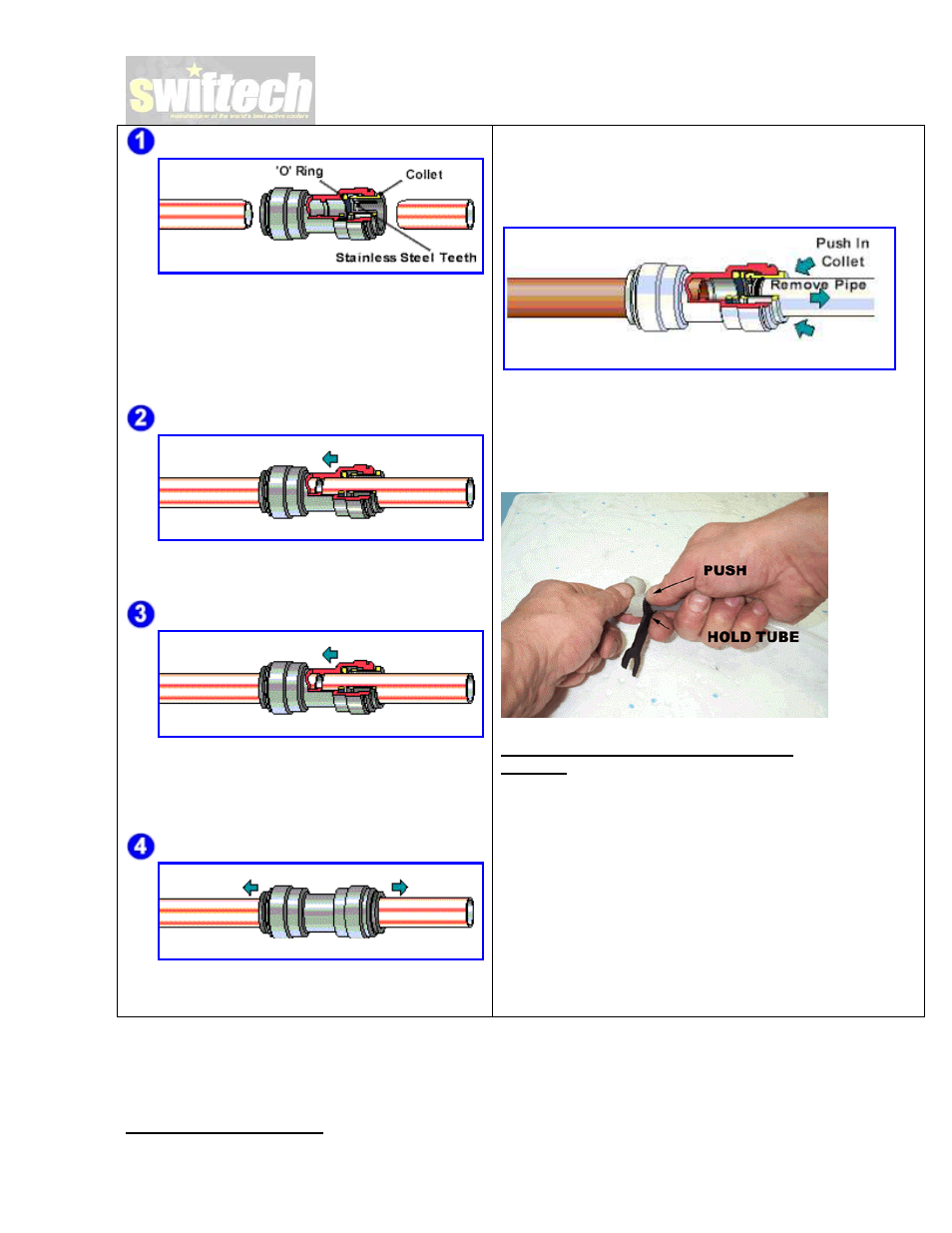

Cut tube square

Cut the tube square. It is essential that the
outside diameter be free of score marks and
that burrs and sharp edges be removed before
inserting into fitting. For soft or thin walled
plastic tubing we recommend the use of a
tube insert.

Insert tube

Fitting grips before it seals. Ensure tube is
pushed in to the tube stop.

Push up to tube stop

Push the tube into the fitting, to the tube stop.
The collet (gripper) has stainless steel teeth
which hold the tube firmly in position while the
'O' ring provides a permanent leak proof seal.

Pull to check secure

Pull on the tube to check it is secure. It is good
practice to test the system prior to leaving site
and/or before use.

Disconnecting a fitting


Ensure system is depressurised before removing fitting.

Push in collet squarely against face of fitting.
With the collet held in this position, the pipe can be removed. The


Your kit also contains a release aid tool which you can
place over the collet, and helps pushing the collet squarely
while removing the tube:

General guidelines with regards to tube
bending:

In general, you should avoid sharp bends. A sharp
bend may result in kinking the tube, and restrict or
completely prevent the flow.

Once all the elements are in place, you can install
your motherboard inside the case and proceed, with
the water block installation.




7/ Water block installation:
