1/ Find a suitable placement for the radiator and fans

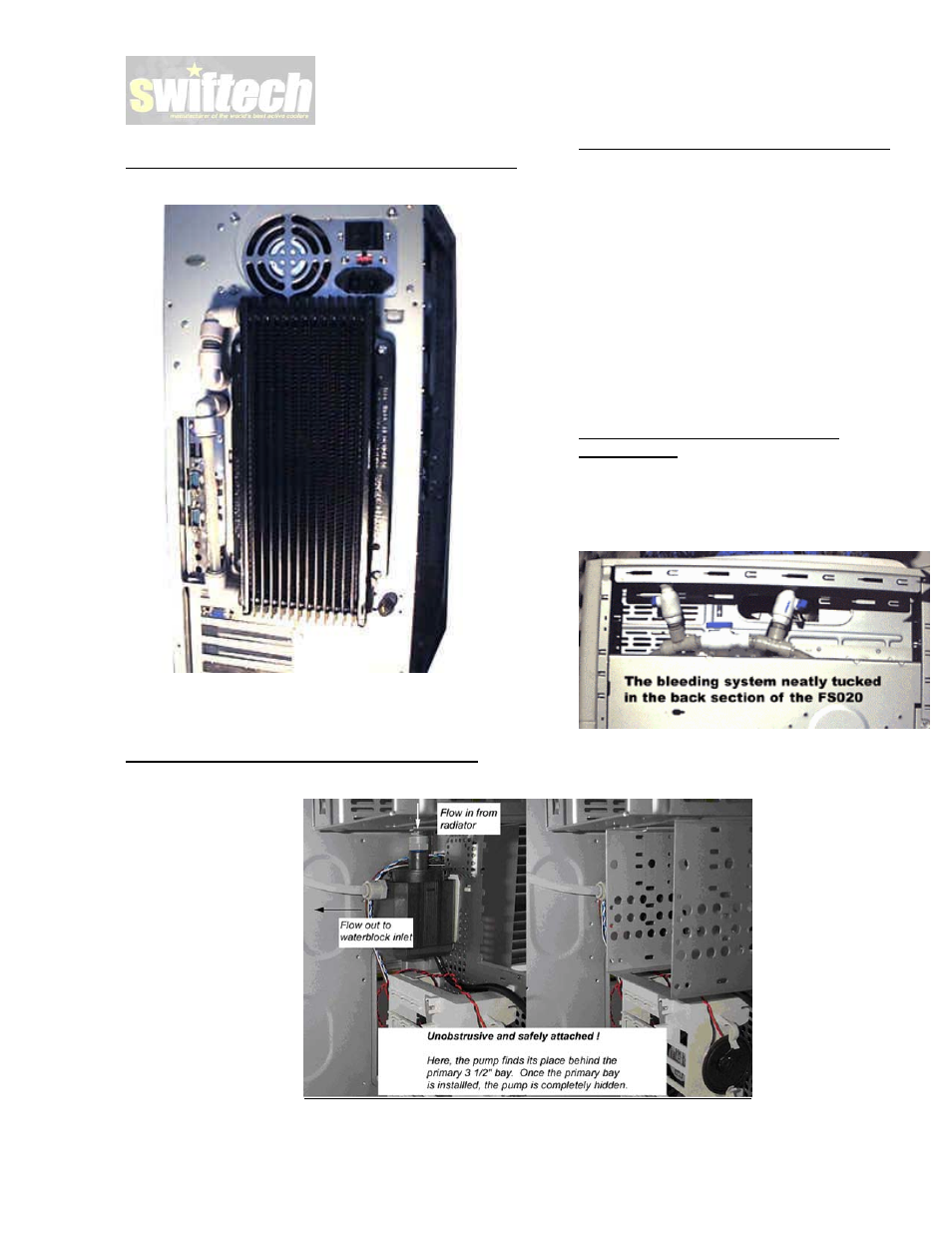

Radiator placement example

The radiator installed to the back of this LiteOn's FS020 server

case. It sits on our custom 3/8" thick gasket for perfect sealing.

Radiator & fans placement recommendations

The radiator can be installed wherever you find suita
room for it, including: top, backside- panel, front or b
the case. However, you should avoid installing it on
removable panel, such as the side-access panel. Th
could cause the tubes to exert uncontrolled pressure
the water-block assembly when the panel is fastene
removed from the case.

Once you have located a suitable placement, use
the enclosed schematic (appendix A) as a
template to drill the radiator, and fan mounting
holes.

:

2/ Find a suitable placement for the
Fill&Bleed kit

To facilitate bleeding, the fill-and-bleed kit
should always be installed at the highest point

of the circuit, typically at the top of the computer
case. Here is an example:

3/ Find a suitable placement for the water pump : The pump can be installed anywhere. It can be mounted
vertically or horizontally, using the heavy duty Velcro harness provided with your kit
