AT-8216FXL, AT-8224XL, and AT-8288XL Series Installation Guide
17

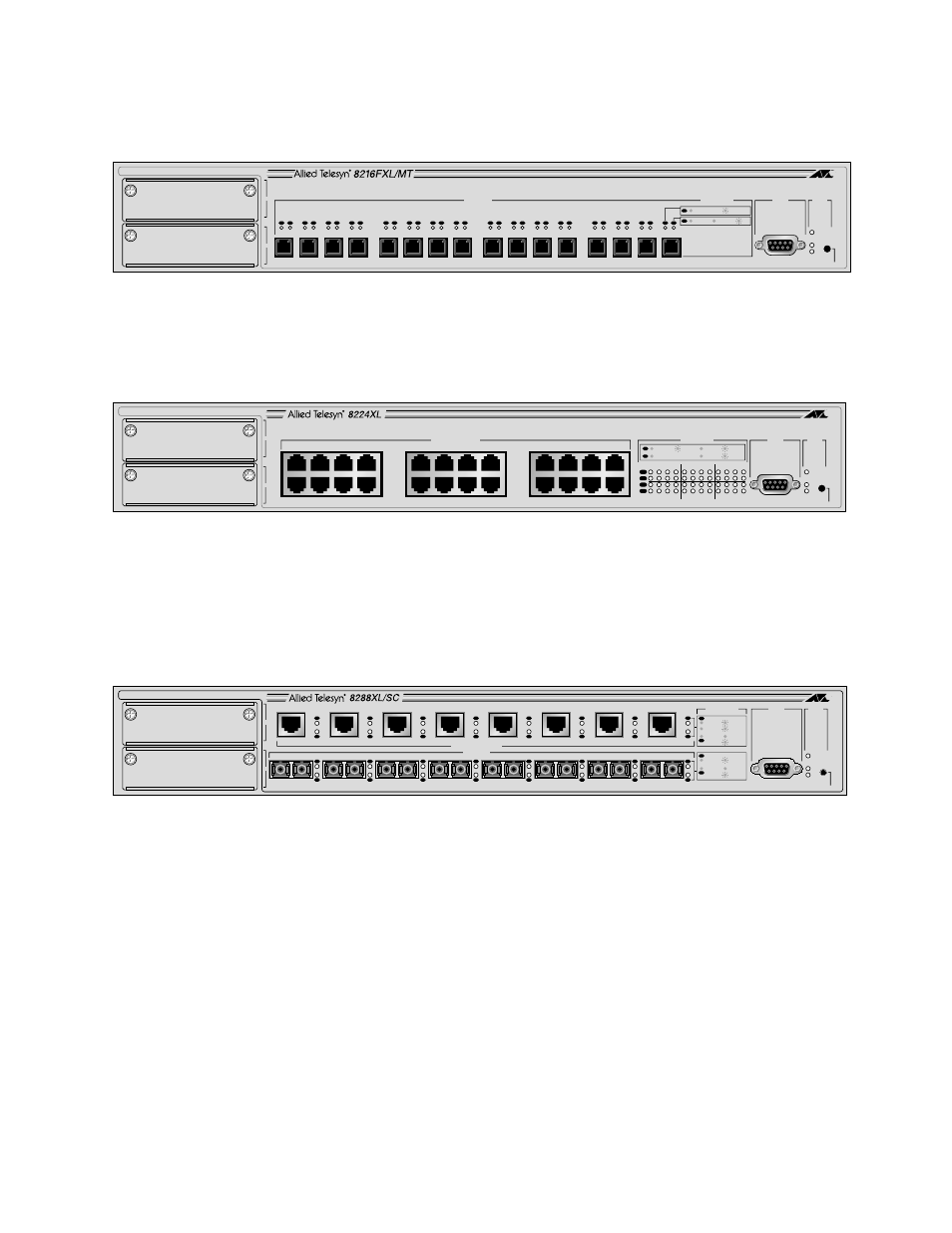

Figure 1 shows an example of a front panel of an AT-8216FXL Series Fast
Ethernet Switch. This switch features 16 fiber optic ports with either SC,
MT-RJ, or VF-45 connectors, depending on the model.
Figure 1 AT-8216FXL Switch (Model 8216FXL/MT)
Figure 2 shows the front panel of the AT-8224XL and AT-D8224XL Fast
Ethernet Switches. These switches have 24 ports with RJ-45 connectors.
Figure 2 AT-8224XL Switch
Figure 3 is an example of a front panel of an AT-8288XL Series Fast
Ethernet Switch. This switch features eight twisted pair ports with RJ-45
connectors and eight fiber optic ports with either SC or MT-RJ
connectors, depending on the model.
Figure 3 AT-8288XL Switch (Model AT-8288XL/SC)
