Chapter 8: VLANs
78
Changing a Port’s VLAN Mode
The switch can operate in only one VLAN mode at a time: tagged VLAN
mode (802.1Q), or port-based VLAN mode.
To change the VLAN mode of a port on the switch, perform the following
procedure:
1. From the main menu, select Bridge > VLAN > VLAN Mode.
The VLAN Mode page is shown in Figure 27.

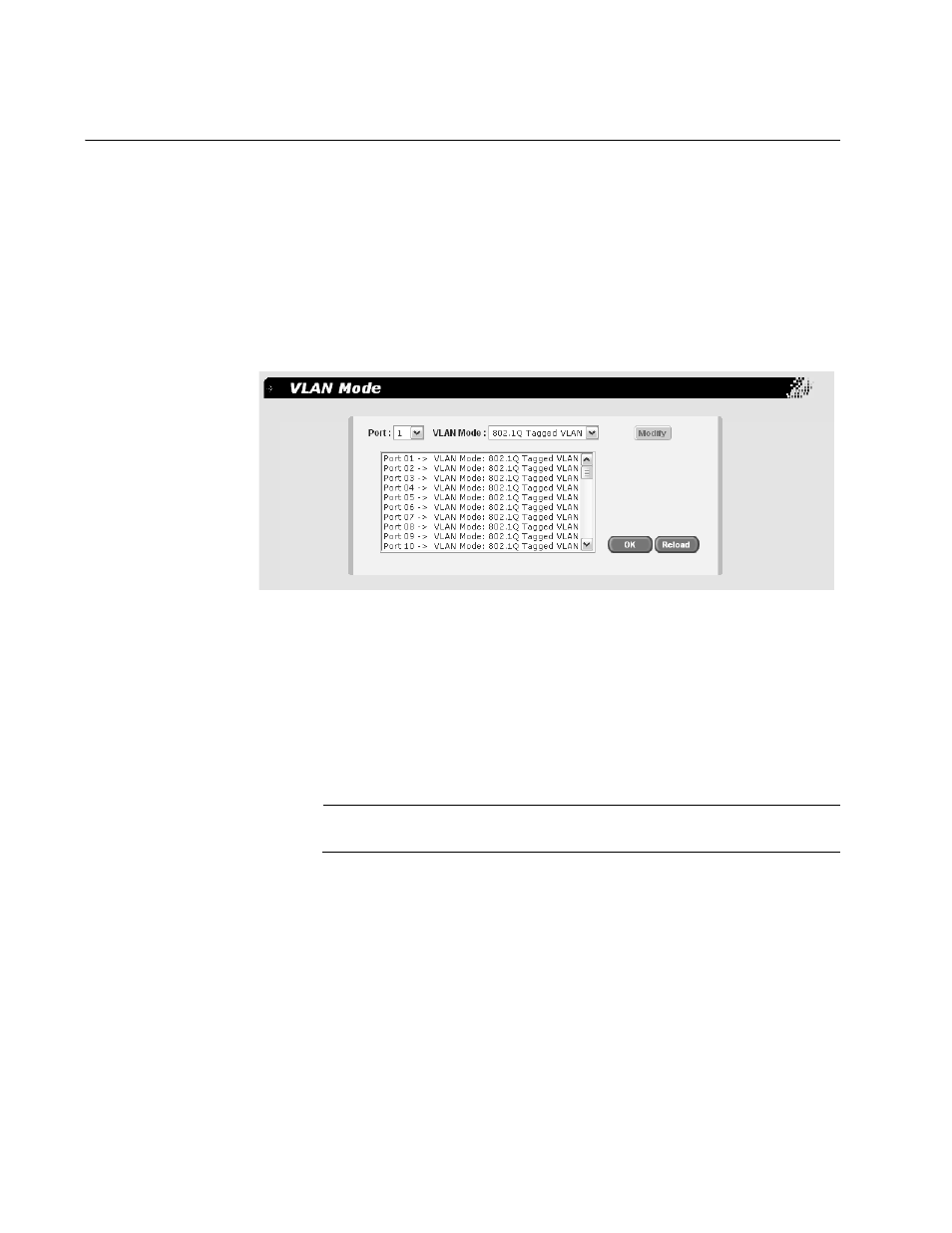

Figure 27. VLAN Mode Page
2. In the Port List, select the port you want to configure, or scroll through
the list below.
The port is highlighted in the port list.
3. From the VLAN Mode list, select either 802.1Q Tagged VLAN or
Port-Based VLAN. The default is 802.1Q tagged VLAN mode.
Note
The default VLAN mode is 802.1Q Tagged VLAN.
4. To view the ports that are set to a particular mode, in the VLAN Mode
list, select the type of VLAN you want to view, either
5. Click Modify.
6. Do one of the following:
ˆ Click OK to save the changes.
ˆ Click Reload to reload the previous configurations.
