AT-S88 Management Software User’s Guide
127
Viewing the Traffic Comparison Statistic
To compare a specific type of traffic between all ports on the switch,
perform the following procedure:
1. From the main menu, select Statistics Chart > Traffic Comparison.
The Traffic Comparison Chart page is shown in Figure 40.

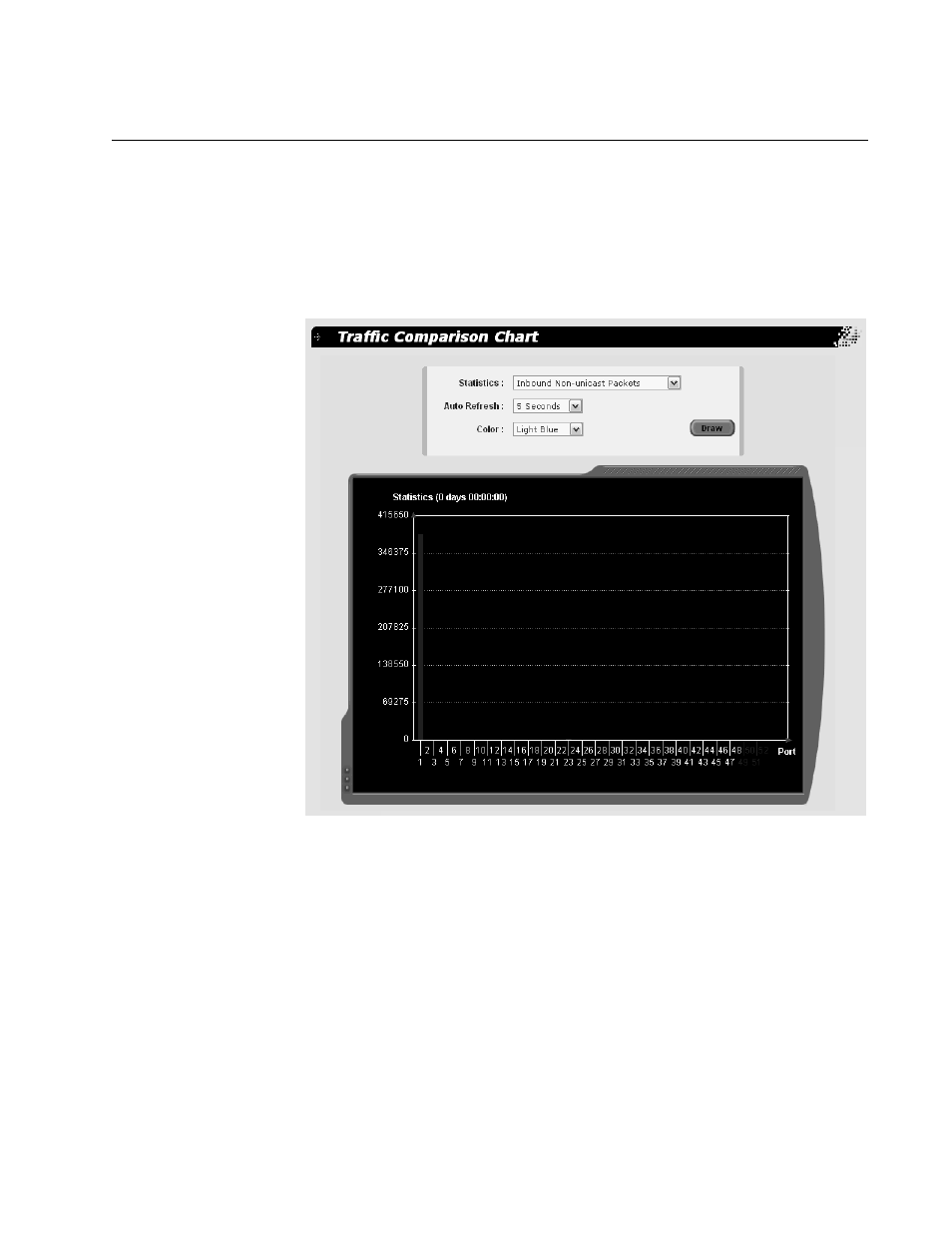

Figure 40. Traffic Comparison Chart Page
2. In the Statistics list, select the statistic you want to view, one of the
following:
Inbound Octet Rate
The sum of lengths of all good Ethernet frames received per unit of
time (specified by the Auto Refresh parameter) that are neither bad
Ethernet frames nor MAC Control packets.
Inbound Unicast Packet Rate
The number of good packets received per unit of time (specified by the
Auto Refresh parameter) that were not directed to the broadcast
address or multicast address.
