AT-8000GS Series Gigabit Ethernet Switch Installation Guide
21
RJ-45 Port LEDs
AT-8000GS/
24POE

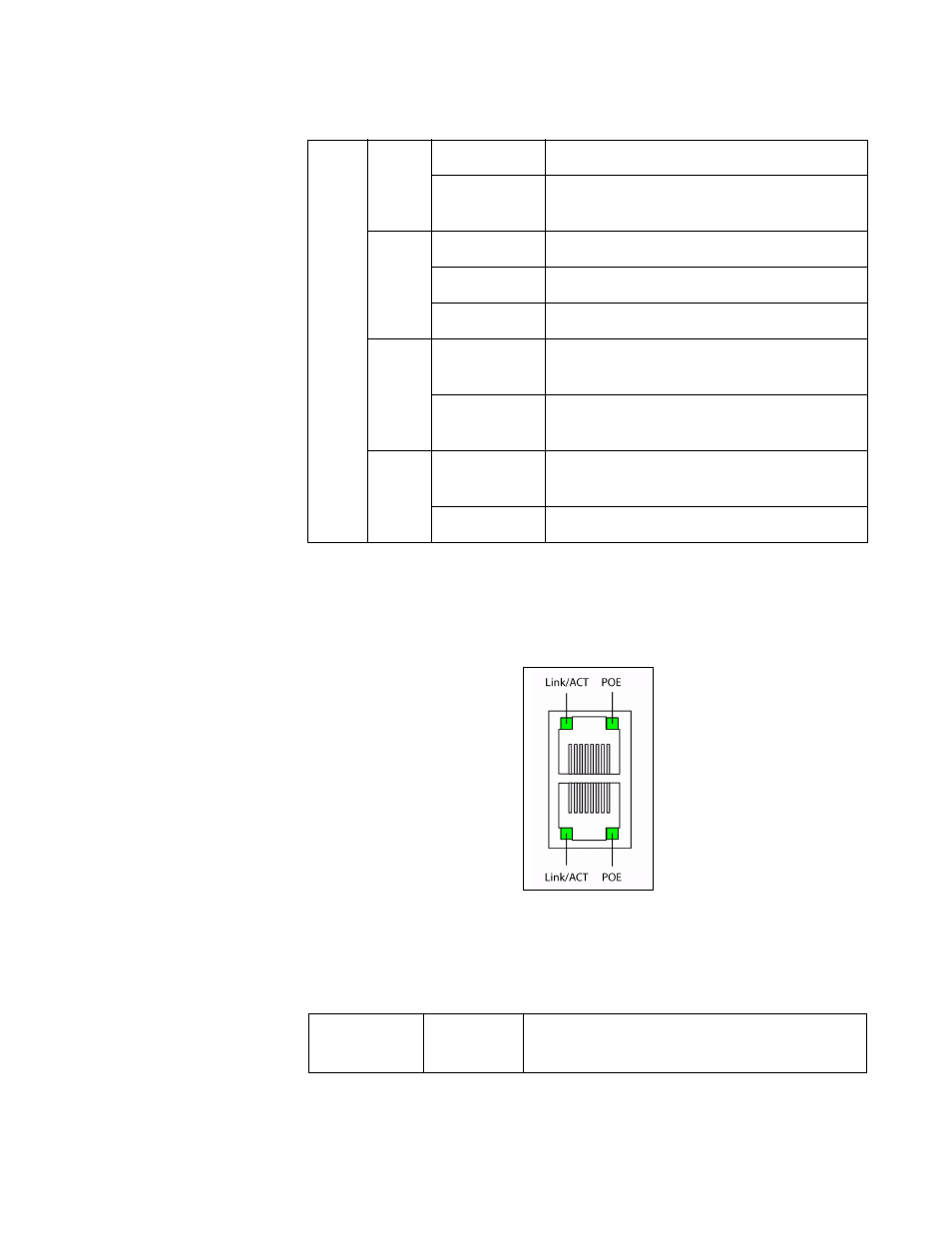

Figure 11 on page 21 illustrates the 10/100/1000 Base-T RJ-45 port LEDs
for the AT-8000GS/24POE Gigabit Ethernet Switch.
Figure 11 RJ-45 Port LEDs for the AT-8000/24POE
Each RJ-45 port on the AT-8000GS/24POE Gigabit Ethernet Switch has
two LEDs, one for Link/Activity and one for POE status. The LED
indications are described in the following table:
Right
LED
COL
Solid Green Data collisions are occurring on the port.
Off No data collisions are occurring on the
port.
SPD
Solid Green Link is established at 1000Mbps.
Solid Amber Link is established at 100Mbps.
Off Link is established in 10Mbps.
FDX
Solid Green A Full Duplex mode connection is
established.
Off A Half Duplex mode connection is
established.
ACT
Solid Green Port is transmitting and/or receiving
data (default mode).
Off No activity is established.
Table 6 Port LED Mode/Indications for AT-8000GS/24 & AT-8000GS/48
Table 7 RJ-45 Port LED Indications for AT-8000/24POE
Port
Description
LED
Indication
Description
