At-8000gs/ 24poe, At-8000gs/24poe, Figure 3 – Allied Telesis AT-8000GS/48 User Manual
Page 13: Figure 4
AT-8000GS Series Gigabit Ethernet Switch Installation Guide
13
AT-8000GS/
24POE

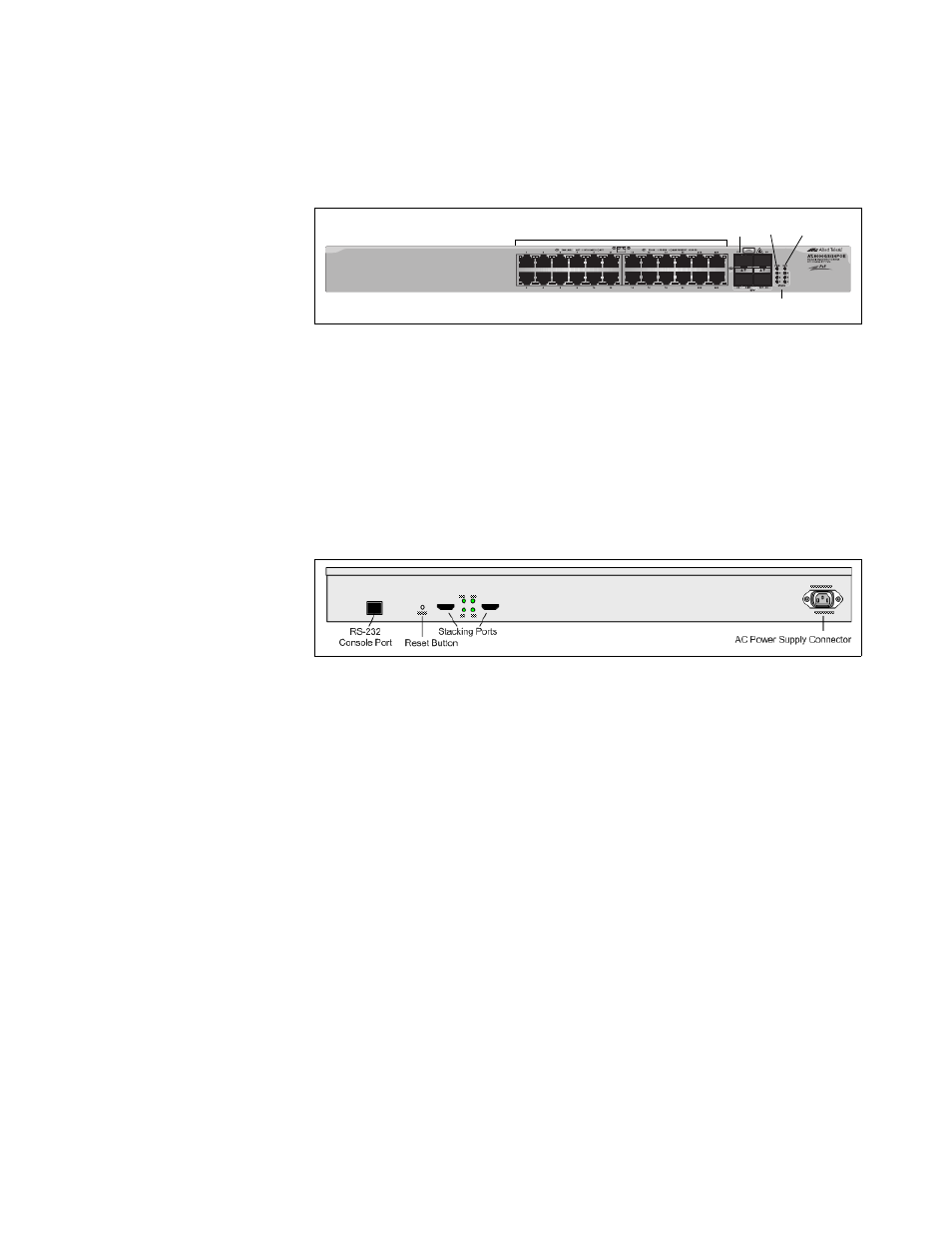

The following figure illustrates the AT-8000GS/24POE front panel.
Figure 3
AT-8000GS/24POE Gigabit Ethernet Switch Front Panel
The AT-8000GS/24POE front panel is configured as follows:
24 10/100/1000Mbps ports — RJ-45 ports designated as 10/100/
1000Base-T. The RJ-45 ports are designated as Ports 1-24.
4 SFP Ports — There are four 1000Base-X SFP combo ports. These
ports are associated with the RJ-45 copper ports: 21, 22, 23 and 24.
The following figure illustrates the AT-8000GS/24POE back panel.
Figure 4
AT-8000GS/24POE Gigabit Ethernet Switch Back Panel
The AT-8000GS/24POE device back panel is configured as follows:
Power Connector — AC power supply interface.
2 Stacking Ports — Two HDMI connector stacking ports .
Console Port — An RJ-45 connector supporting the RS-232 electrical
specification.
Reset Button — Button to reset the device.
1337
Diagnostic
SFP Ports
LED
LED
Stacking
LEDs
10/100/1000Base-T Ports
Power
