AT-8000GS Series Gigabit Ethernet Switch Installation Guide

19

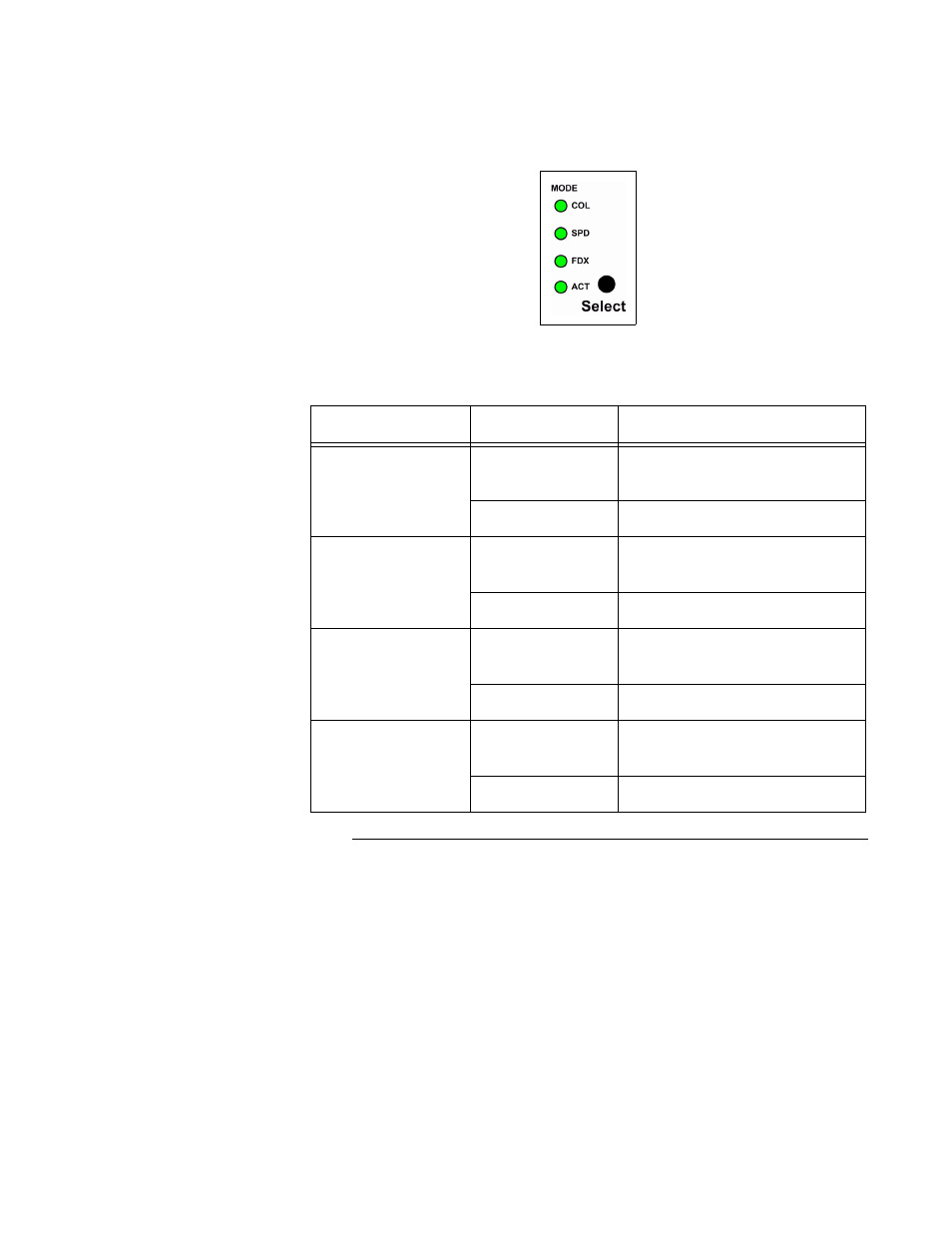

Figure 9 below illustrates the mode LEDs on the front panel and Table 5
below gives the functional description of each LED.

Figure 9

Front Panel Mode Selection LEDs

Note

Please refer to Table 6, “Port LED Mode/Indications for AT-8000GS/
24 & AT-8000GS/48” on page 20 for t
he corresponding Port LED
Mode functions.

RJ-45 Port LEDs

on AT-8000GS/24

& AT-8000GS/48

Figure 10 on page 20 illustrates the RJ-45 port LEDs for the AT-8000GS/
24 Gigabit Ethernet Switch and AT-8000GS/48 Gigabit Ethernet Switch.

Table 5 Mode LED Indication (Non POE Only)

LED Description

LED Indication

Functional Description

COL

Green

Indicates that Collision status
is displayed on right port LED.

Off

Another Mode is displayed.

SPD

Green

Indicates that Speed status is
displayed on right port LED.

Off

Another Mode is displayed.

FDX

Green

Indicates that Duplex status is
displayed on right port LED.

Off

Another Mode is displayed.

ACT

Blinking Green

Indicates that Activity status is
displayed on right port LED.

Off

Another Mode is displayed.
