Chapter 1: Overview

14

AT-8000GS/48

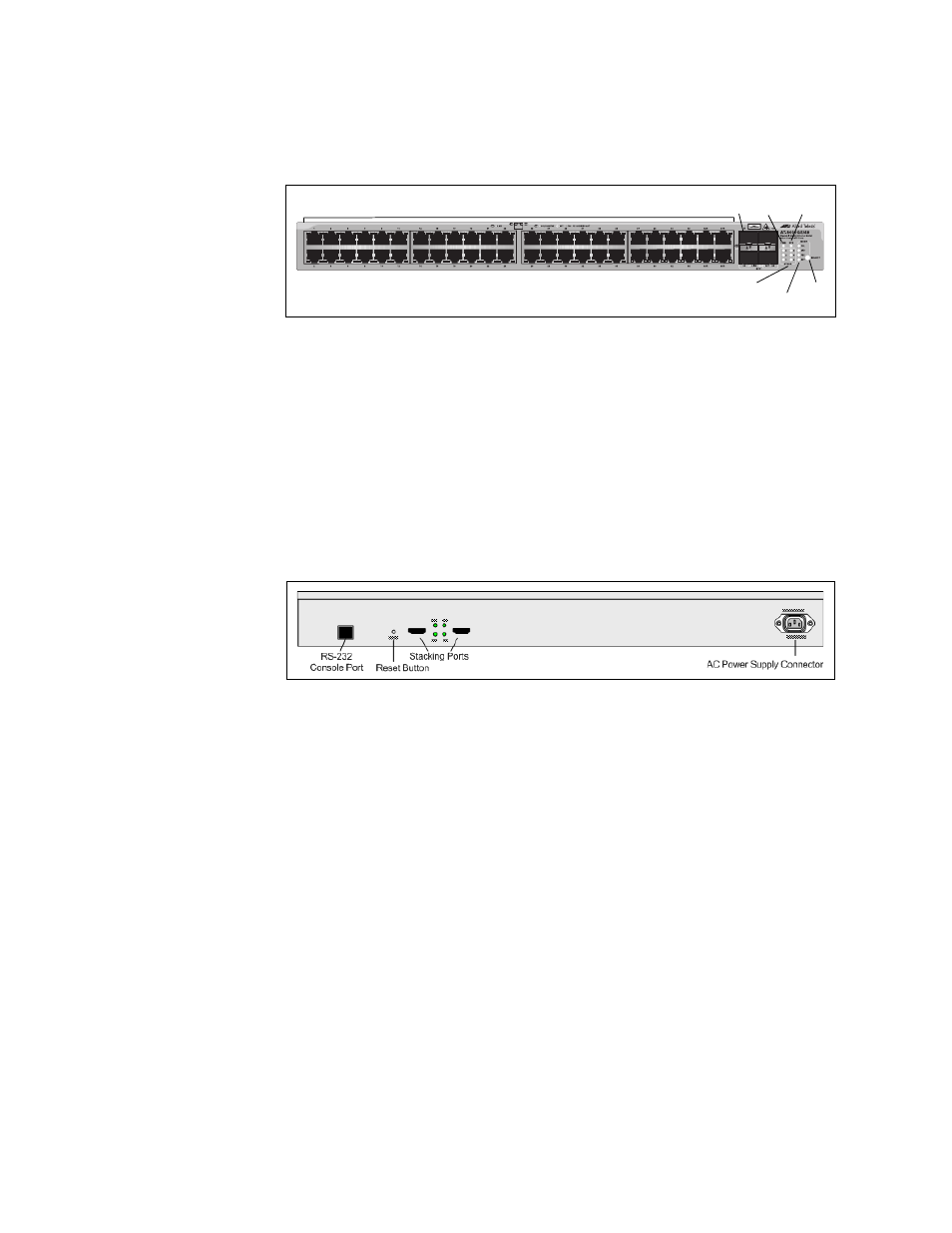

The following figure illustrates the AT-8000GS/48 front panel.

Figure 5

AT-8000GS/48 Gigabit Ethernet Switch Front Panel

The AT-8000GS/48 device front panel is configured as follows:

ˆ

48 10/100/1000 Mbps ports — RJ-45 ports designated as 10/100/
1000Mbps Base-T. The RJ-45 ports are designated as Ports 1-48.

ˆ

4 SFP Ports — There are four 1000Base-X SFP combo ports. These
ports are associated with the RJ-45 copper ports: 45, 46, 47, and 48.

ˆ

Select Button — Selects the port LED indications.

The following figure illustrates the AT-8000GS/48 back panel.

Figure 6

AT-8000GS/48 Gigabit Ethernet Switch Back Panel

The AT-8000GS/48 back panel is configured as follows:

ˆ

Power Connector — AC power supply interface.

ˆ

2 Stacking Ports — Two HDMI connector stacking ports .

ˆ

Console Port — An RJ-45 connector supporting the RS-232 electrical
specification.

ˆ

Reset Button — Button to reset the device.

1338

SFP Ports

Mode

Button

Mode

LEDs

Power

LED

LED

Stacking

LEDs

10/100/1000Base-T Ports

Diagnostic
