Chapter 2: Installation
36

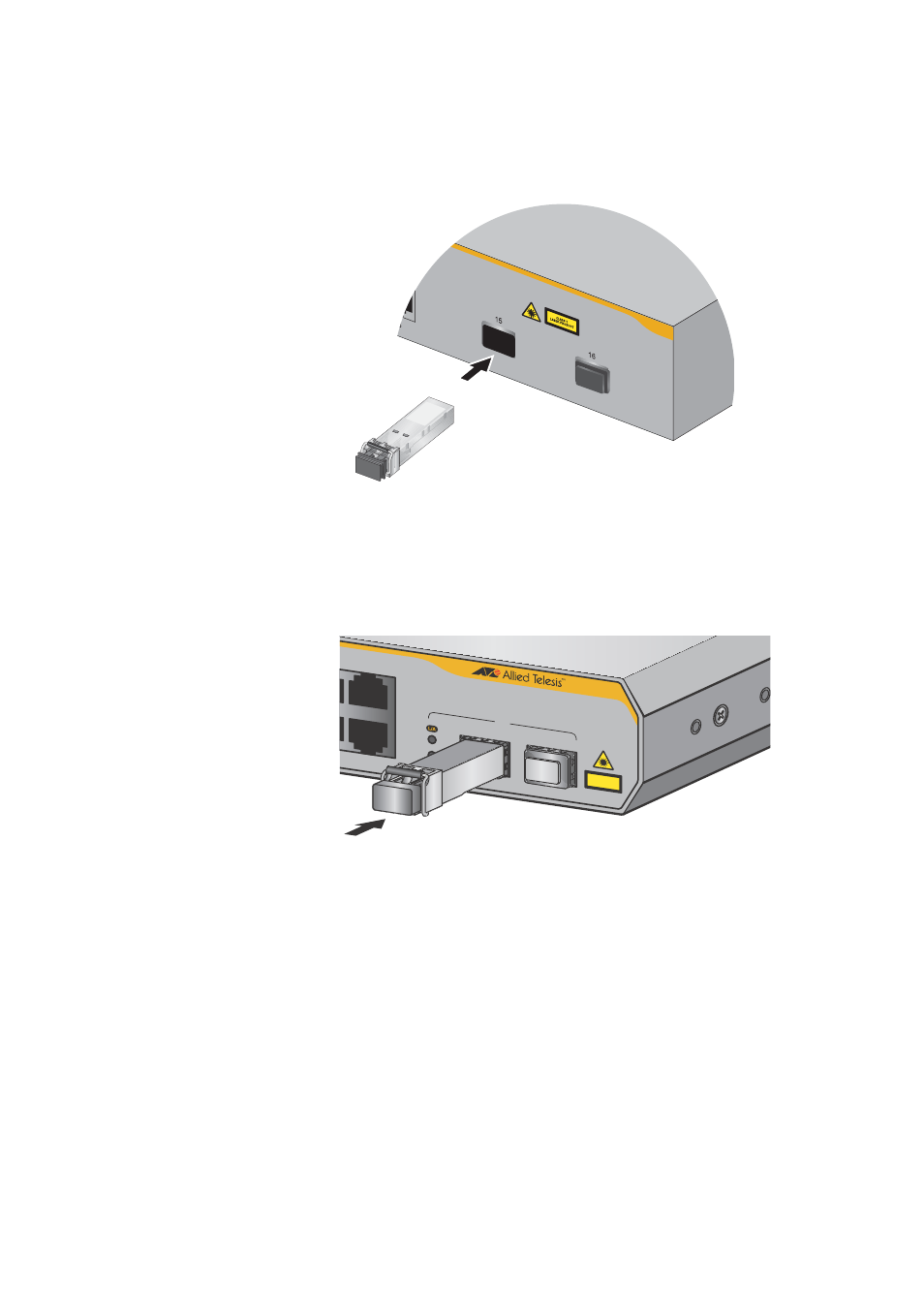

4. For an AT-x210-24GT Switch, gently slide the transceiver into the SFP
slot until it clicks into place, as shown in Figure 28.
Figure 28. Inserting the SFP on an AT-x210-24GT
5. For an AT-x210-16GT Switch, gently slide the transceiver into the SFP
slot until it clicks into place, as shown in Figure 29.
Figure 29. Inserting the SFP on an AT-x210-16GT
1981
R
R
15R
16R
15
16
15
16
AT-x210-16GT
Gigabit Ether
net Sw itch
L/A LINK /
ACT
SFP
CLASS 1 LASER PRODUCT
