AT-x210-9GT, AT-x210-16GT, and AT-x210-24GT Switches Installation Guide
31
6. Mount an AT-x210-16GT switch in a 19-inch equipment rack using the
provided spacer bracket mounts with four equipment rack screws (not
provided with the switch), as shown in Figure 20.

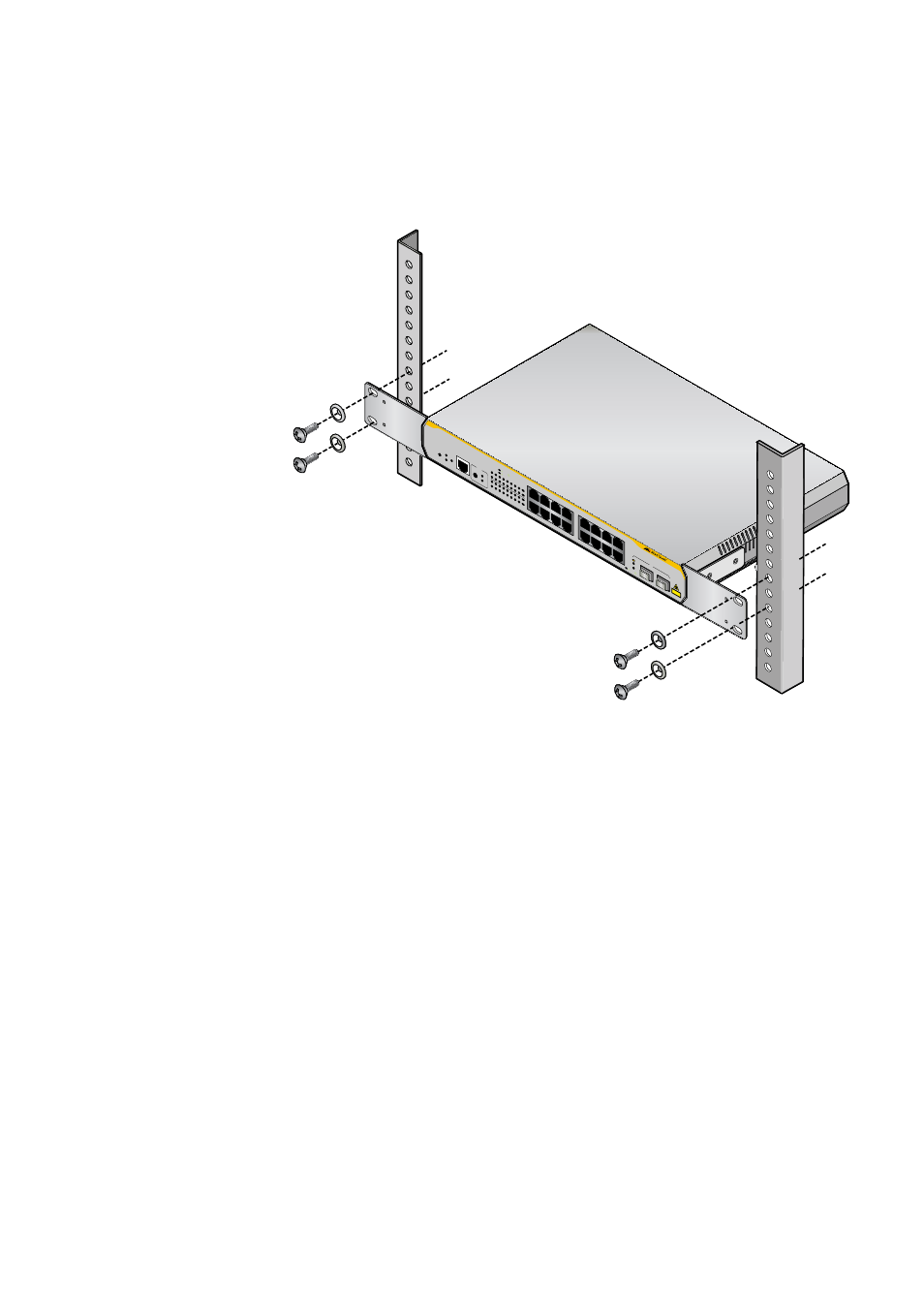

Figure 20. Mounting an AT-x210-16GT Switch in an Equipment Rack
