Chapter 1: Overview
10

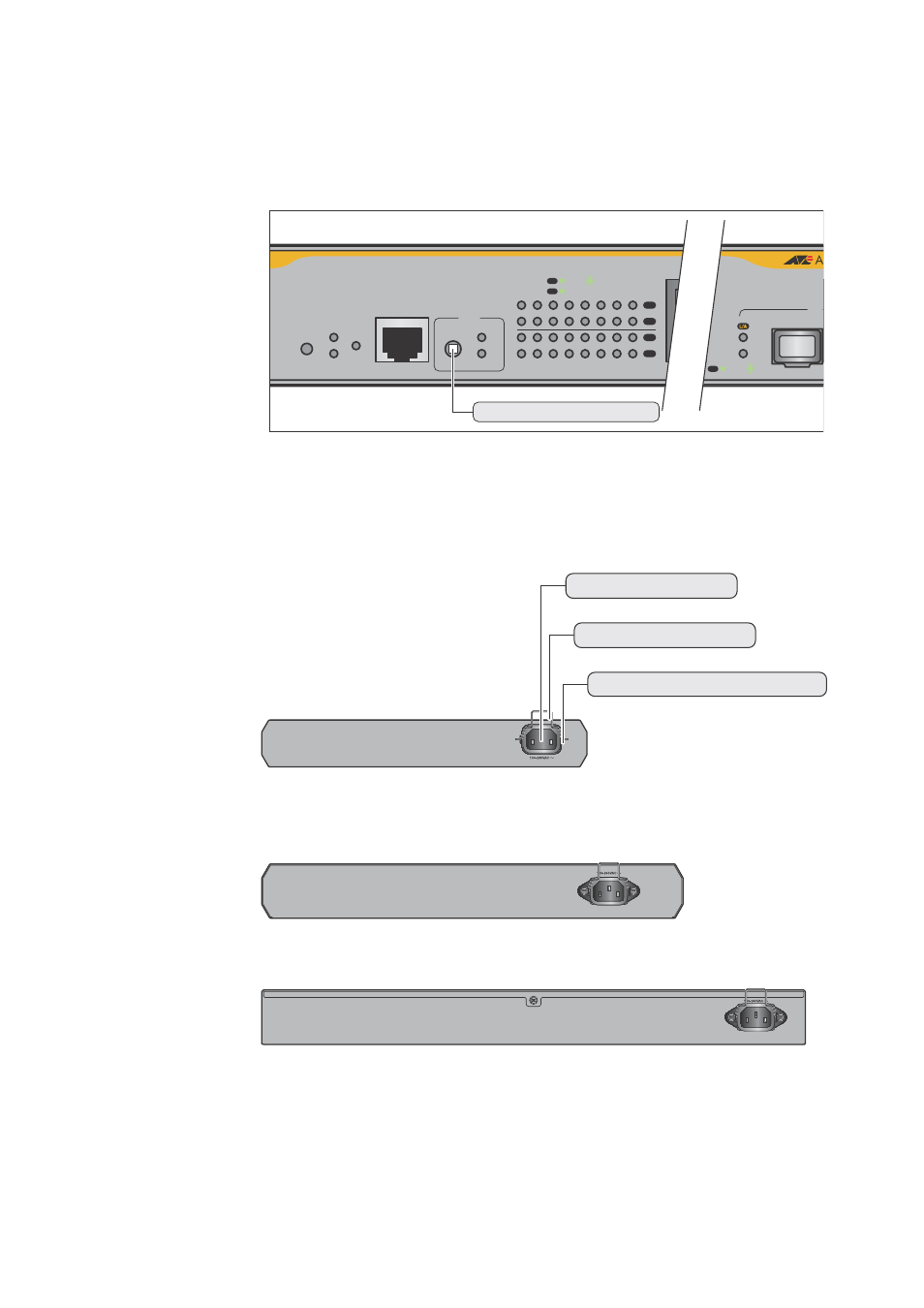

Figure 3 illustrates the MODE LED toggle button on the front panel of the
of the AT-x210-9GT and AT-x210-16GT Gigabit Ethernet Switches. This
button changes front panel LEDs for SPEED, DUPLEX, or turns off LEDs.
Figure 3. MODE LED Toggle button
Figure 4 illustrates the front panels of the AT-x210-9GT, AT-x210-16GT,
and AT-x210-24GT Gigabit Ethernet Switches.
Figure 4. AT-x210-9GT, AT-x210-16GT, and AT-x210-24GT Back Panels
1 3 5
2 4 6
FAULT
STANDBY RESET
POWER
CONSOLE
RS-232
SELECT
SPEED
DUPLEX
2 4 6 8 10 12 14 16R
1 3 5 7 9 11 13 15R
L/A
MODE
L/A
MODE
MODE SPEED / DUPLEX
L/A LINK / ACT
MODE
15
16
15
AT-x21
Gigabit Ethern
L/A LINK / ACT
SFP
MODE LED Toggle button
AT-x210-16GT
AT-x210-24GT
AT-x210-9GT
⑨ Power connector
⑩ Power cable hook
⑪ Power cable hook mount
