Allied Telesis x310 Series User Manual
Page 91
x310 Series Installation Guide for Stand-alone Switches
91
7. Connect the fiber optic cable to the transceiver, as shown in Figure 44.
The connector on the cable should fit snugly into the port, and the tab
should lock the connector into place.

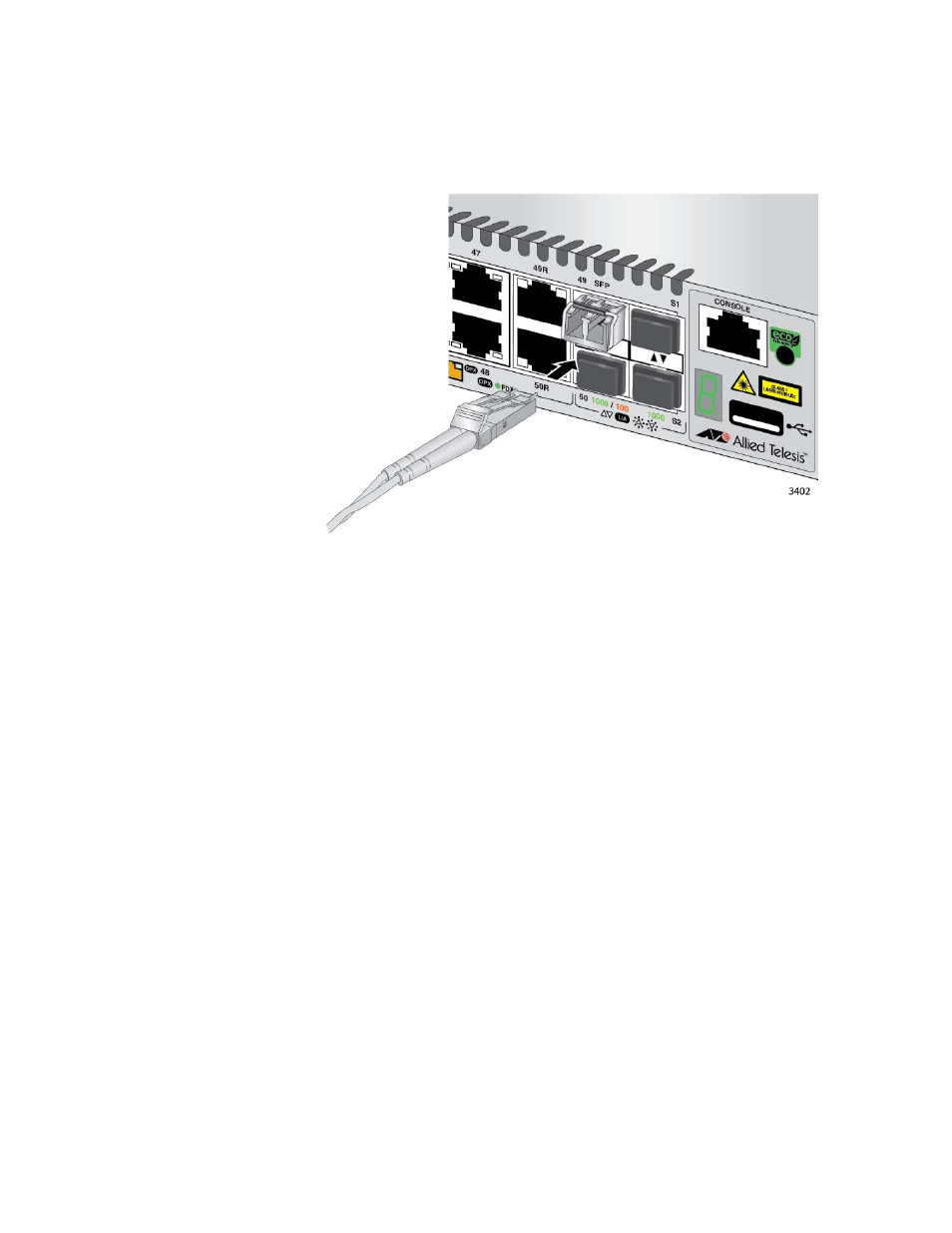

Figure 44. Connecting a Fiber Optic Cable to an SFP Transceiver
8. Repeat this procedure to install a second transceiver.
9. After installing the transceivers, go to Chapter 6, “Powering On the
