Figure 37: securing the switch to the plywood base – Allied Telesis x310 Series User Manual
Page 81
x310 Series Installation Guide for Stand-alone Switches
81

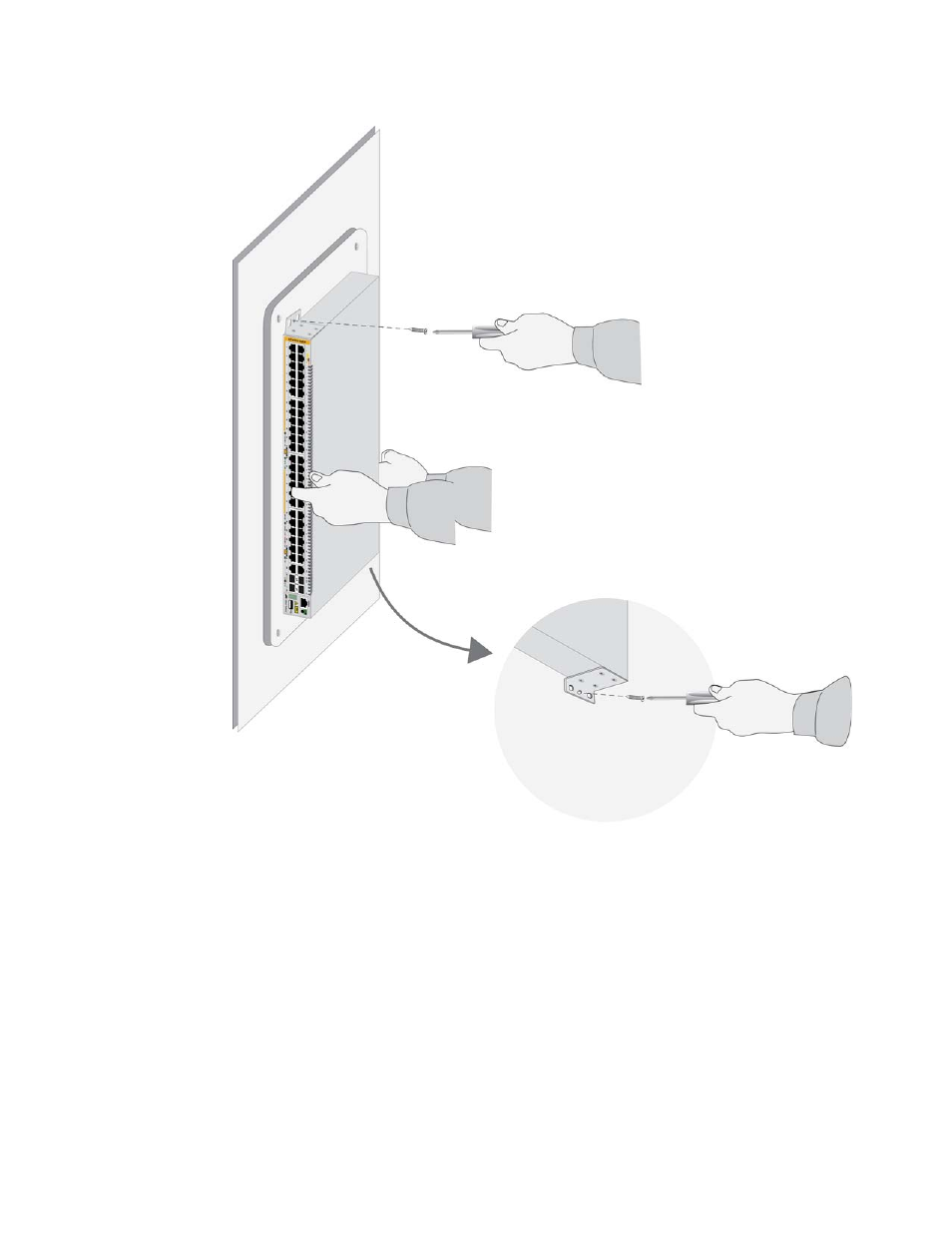

Figure 37.
Securing the Switch to the Plywood Base
This completes the procedure for mounting the switch on the wall. Go to
Chapter 5, “Cabling the Networking Ports” on page 85, for instructions on
how to connect the network cables to the ports on the switch.
