Allied Telesis x310 Series User Manual
Page 74
Chapter 4: Installing the Switch on a Wall
74
the front panel is on the left. Figure 31 shows the recommended position
of the device when the front panel is on the right.

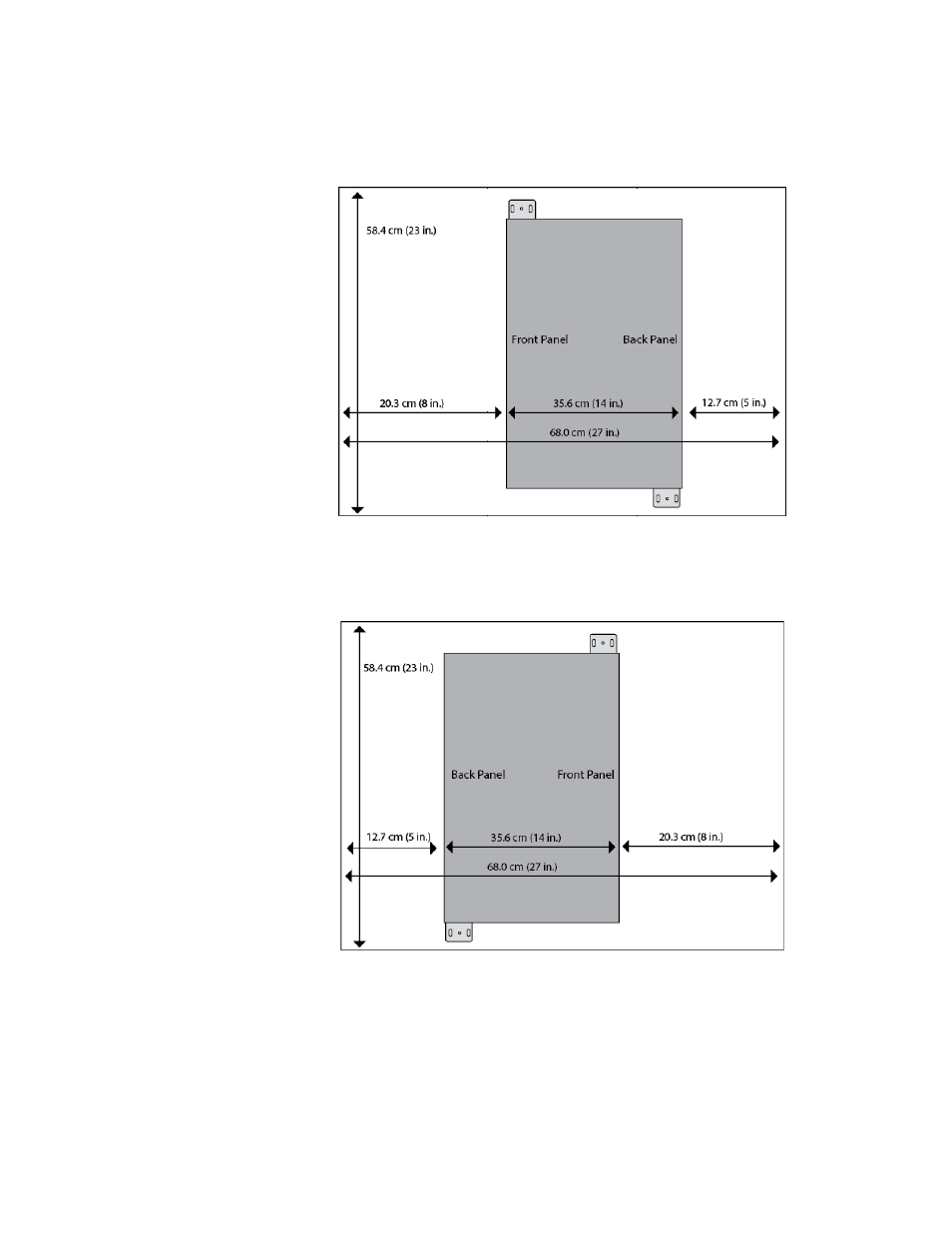

Figure 30. Minimum Wall Area Dimensions for the Switch When the Front
Panel is on the Left
Figure 31. Minimum Wall Area Dimensions for the Switch When the Front
Panel is on the Right
