x310 Series Installation Guide for Stand-alone Switches
89
Installing SFP
Modules
To install SFP transceivers in slots 25 and 26 of the 26-port switches or
slots 49 and 50 of the 50-port switches, perform the following procedure:
1. Remove the dust plug from a transceiver slot on the switch. Refer to
Figure 40.

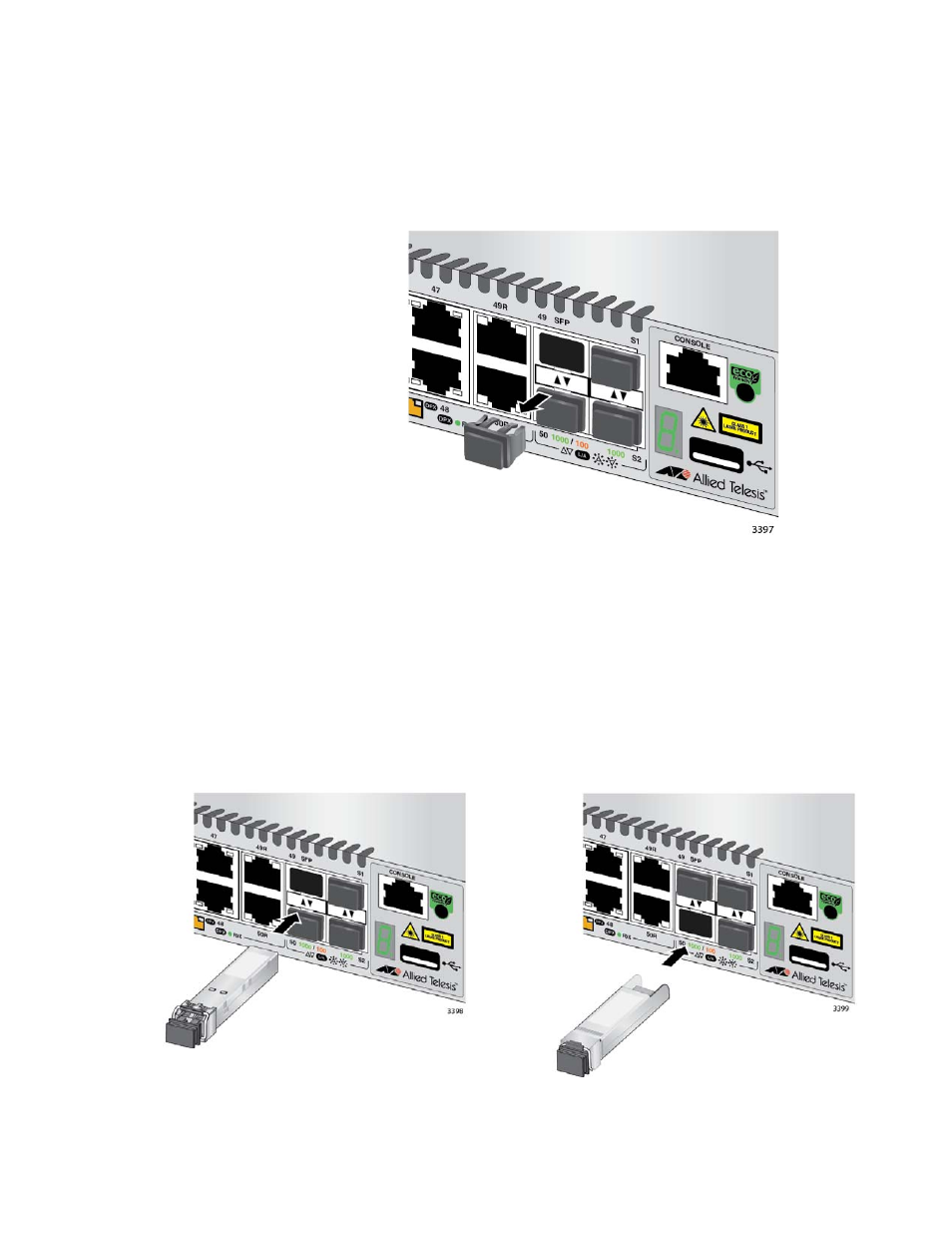

Figure 40. Removing the Dust Plug from an SFP Slot
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. If you are installing the transceiver in a top slot, position the transceiver
with the handle on top. If you are installing the transceiver in a bottom
slot, position the transceiver with the handle beneath the module.
4. Slide the transceiver into the slot until it clicks into place. Refer to
Figure 41.
Figure 41. Installing an SFP Transceiver
