x310 Series Installation Guide for Stand-alone Switches

Positions of the

Brackets

You should install the two brackets diagonally across from each other on
the sides of the switch. Allied Telesis recommends installing the bracket
for the front panel above the chassis and the bracket for the back panel
below the chassis. Refer to Figure 32.

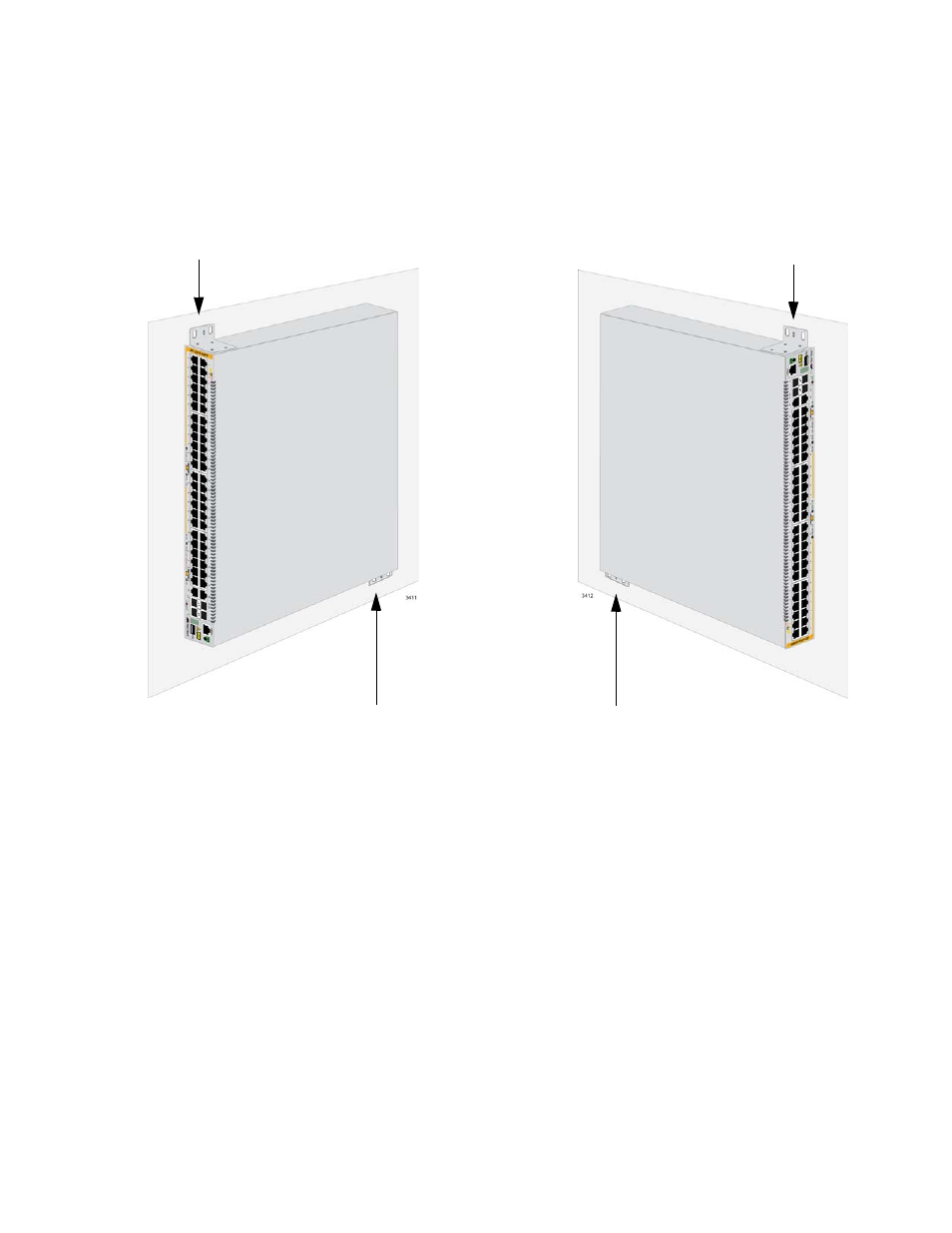

Figure 32. Bracket Positions on the Switch

Plywood Base for

a Wall with

Wooden Studs

If you are installing the AT-x310-26FP, AT-x310-50FT, or AT-x310-50FP
Switch on a wall that has wooden studs, Allied Telesis recommends using
a plywood base to attach the device to the wall. (A plywood base is not
required for a concrete wall.) Refer to Figure 33 on page 76.

Bracket
