Introduction

20

Back Panel

Ports

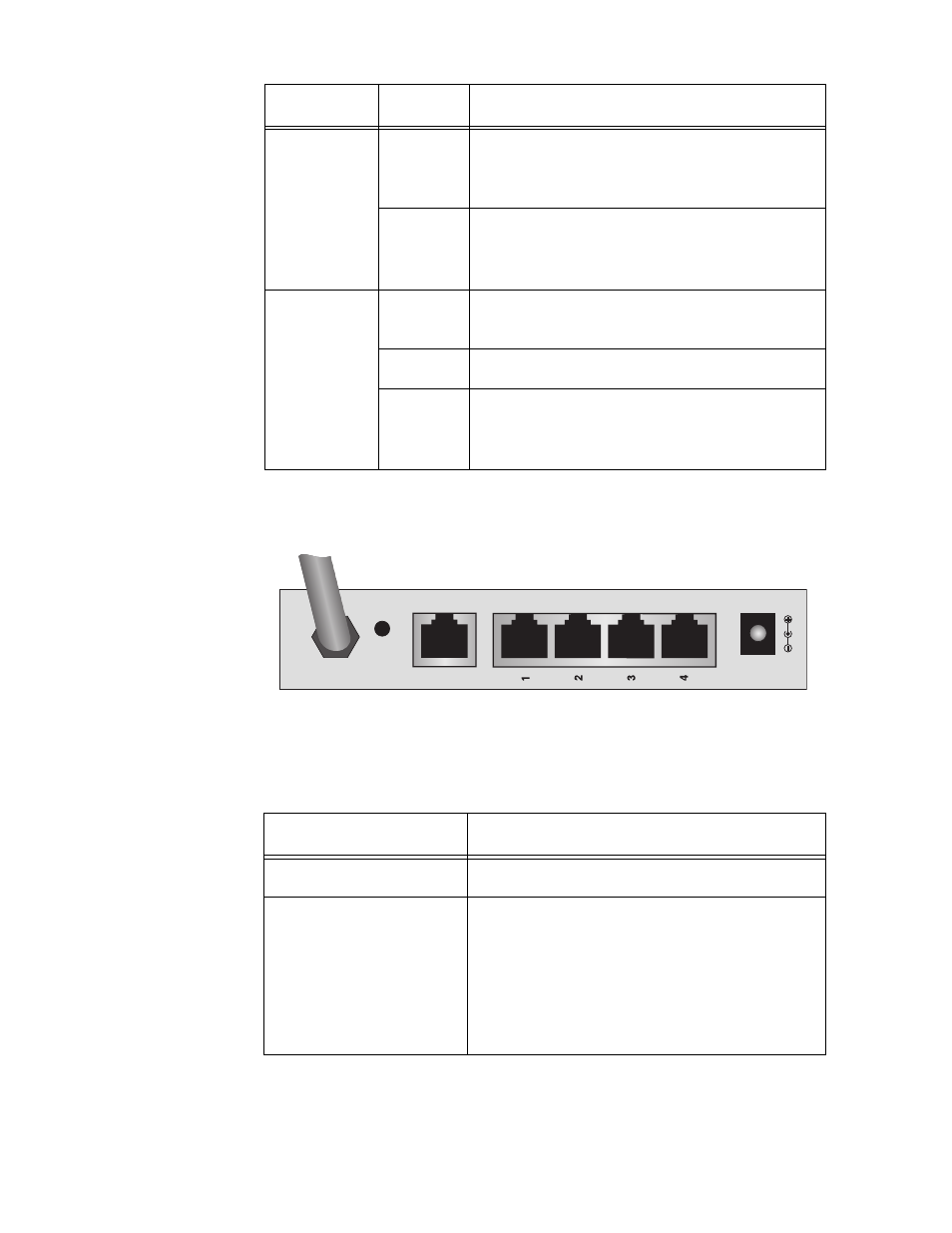

Figure 3 AT-WA1004G Back Panel

Table 2 Ports

WAN

ON

Connection to the Broadband Modem
attached to the WAN (Internet) port is
established.

OFF

No connection to the Broadband Modem.
Flashing - Data is being transmitted or
received via the WAN port.

WLAN

ON

Wireless connection available; Wireless
Access Point is ready for use.

OFF

No Wireless connection available.

Flashing

Data is being transmitted or received via
the Wireless access point. Data includes
“network traffic” as well as user data.

LED

Status

Description

Port

Description

Power

Connect the supplied power adapter here.

10/100Base-T LAN

Use standard LAN cables (RJ-45 connectors)
to connect your PCs to these ports.

If required, any port can be connected to
another hub. Any LAN port will
automatically function as an “Uplink” port
when necessary.

POWER

LAN

WAN

INIT
