Section 4. The PC400 Main Screen

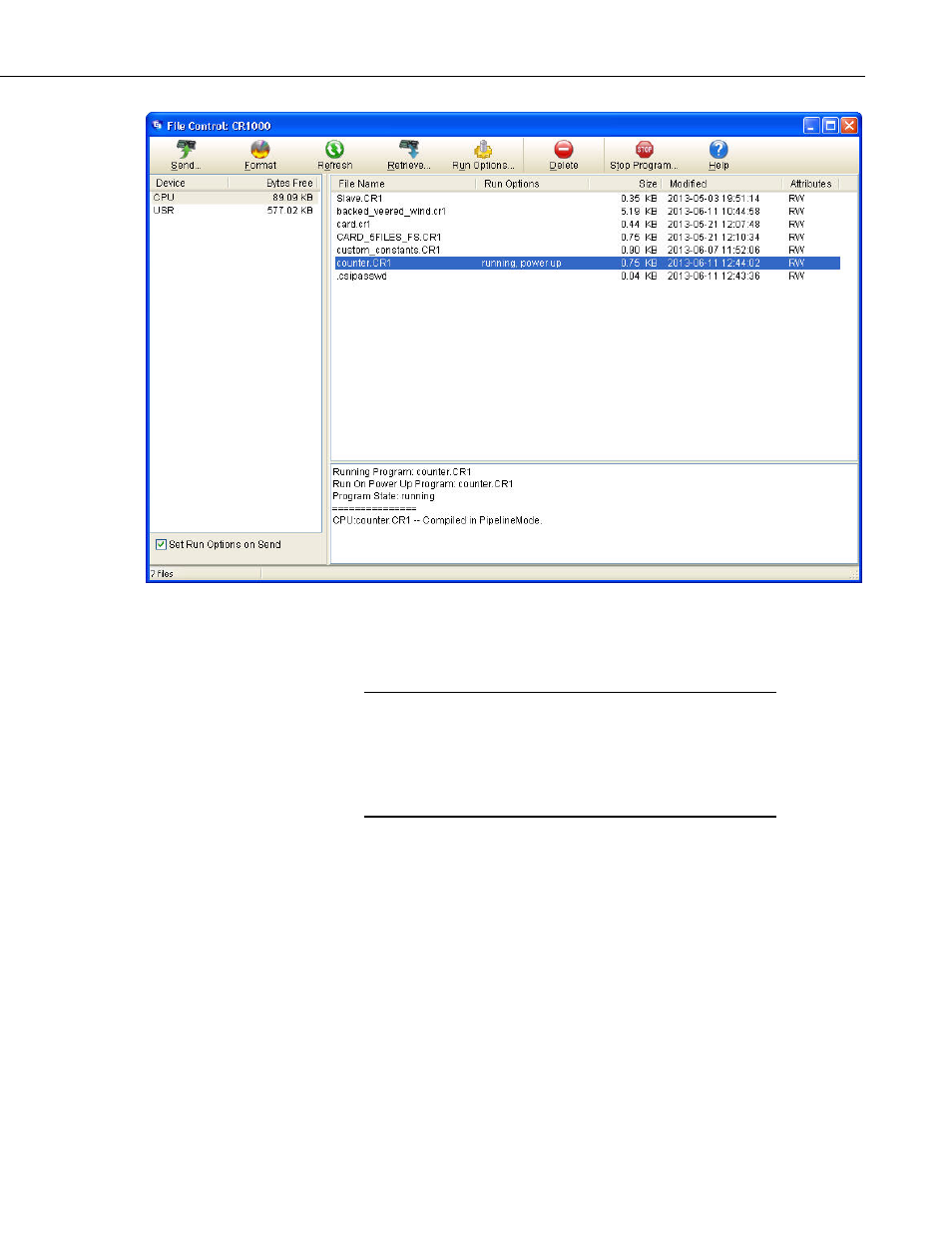

The File Control window displays a list of files stored on the datalogger’s
CPU, PC card, SC115 USB drive, or USR drive. The window on the left lists
all of the data storage devices available for the selected datalogger (CPU, CRD,
USB, or USR). Selecting a device shows a list of the files stored there.
The USR drive is a user-created drive in the CR800, CR1000,
and CR3000 dataloggers. It can be set up by assigning a value to
the datalogger’s UsrDriveSize setting in the Status table. This
drive must be set to at least 8192 bytes, in 512 byte increments
(if the value entered is not a multiple of 512 bytes, the size will
be rounded up). NOTE
The Run Options for a file indicate whether it is set to running, power up, or
running, power up. The currently executing program is indicated by running.
The file size is displayed, as well as the last time the file was modified and
whether or not the file is Read Only (R) or Read/Write (RW). Note that the
Size, Modified date, and Attributes may not be available for all dataloggers.
At the bottom of the right-hand side of the window is a summary box that
indicates the Running Program, the Run On Power Up Program, the current
Program State (running, stopped, or no program), and the last compile results.
There are several options to work with the files and directories on the
datalogger.
Send is used to transfer files from the computer to the datalogger. Clicking the
Send button brings up a standard file selection dialog box. A new file can be
4-13
