Section 14. Lens
14-2

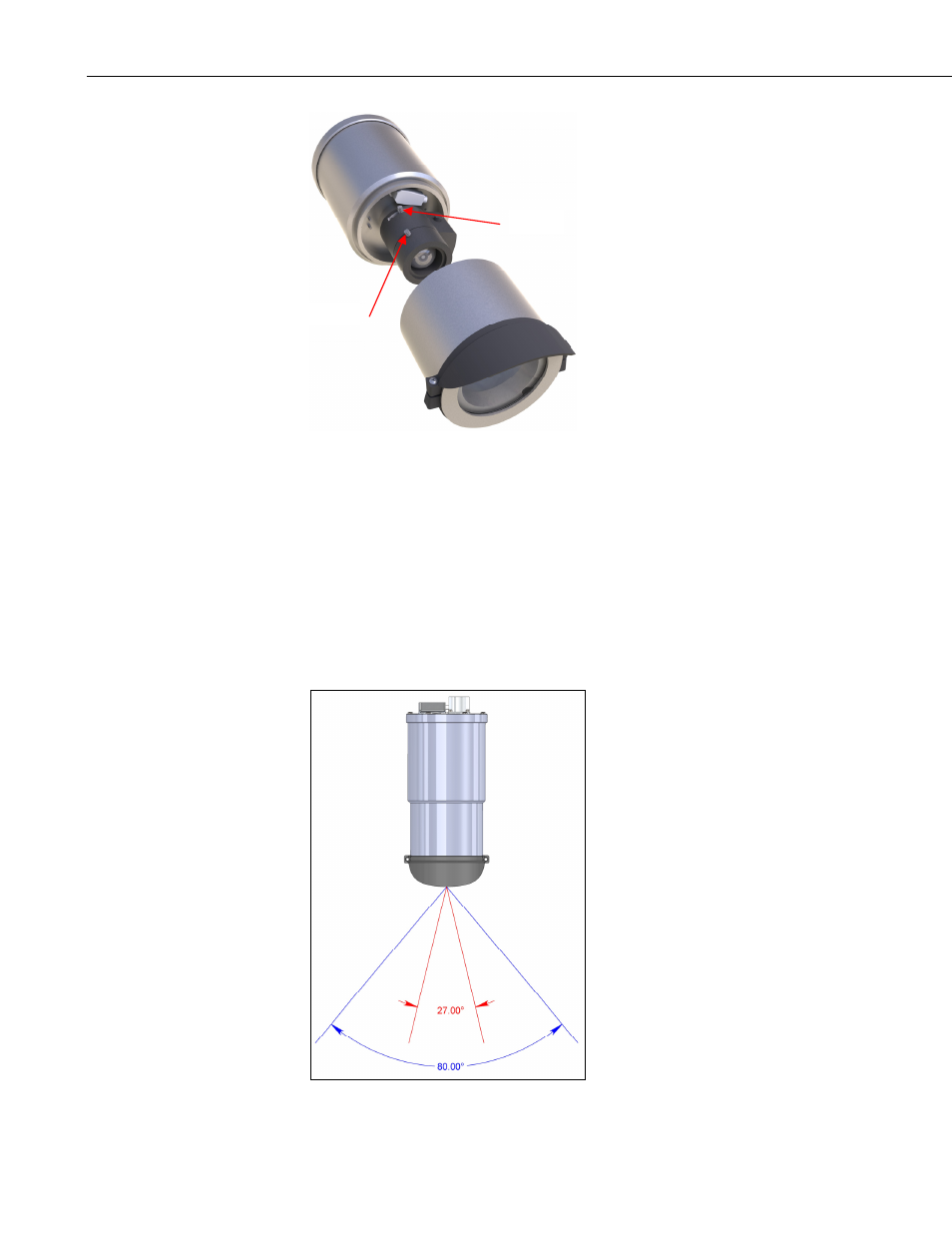

FIGURE 14-2. Focus and Zoom Adjustments
14.1 Camera Lens and Field of View
The CC5MPX camera includes a 4 to 12 mm lens, which provides an
approximate 27° horizontal field of view when fully zoomed in and an 80°
horizontal field of view when fully zoomed out. The CC5MPX with the
special-ordered zoom lens will have a 10 to 40 mm lens, which provides an
approximate 9° horizontal field of view when fully zoomed in and a 35°
horizontal field of view zoomed out. See FIGURE 14-3 for a visual
representation of the field of view.
FIGURE 14-3. CC5MPX Horizontal Field of View
Zoom
Focus
