Campbell Scientific CC5MPX and CC5MPXWD Digital Network Cameras - Manual (Page 63)

Section 7. Camera Operation Using Web Browser Interface
7-27
7.6.2 Self Timed Capture1
The Self Timed Capture1 sub tab (see FIGURE 7-28) is used to configure the
camera to capture still images or video by using the internal clock of the
CC5MPX.

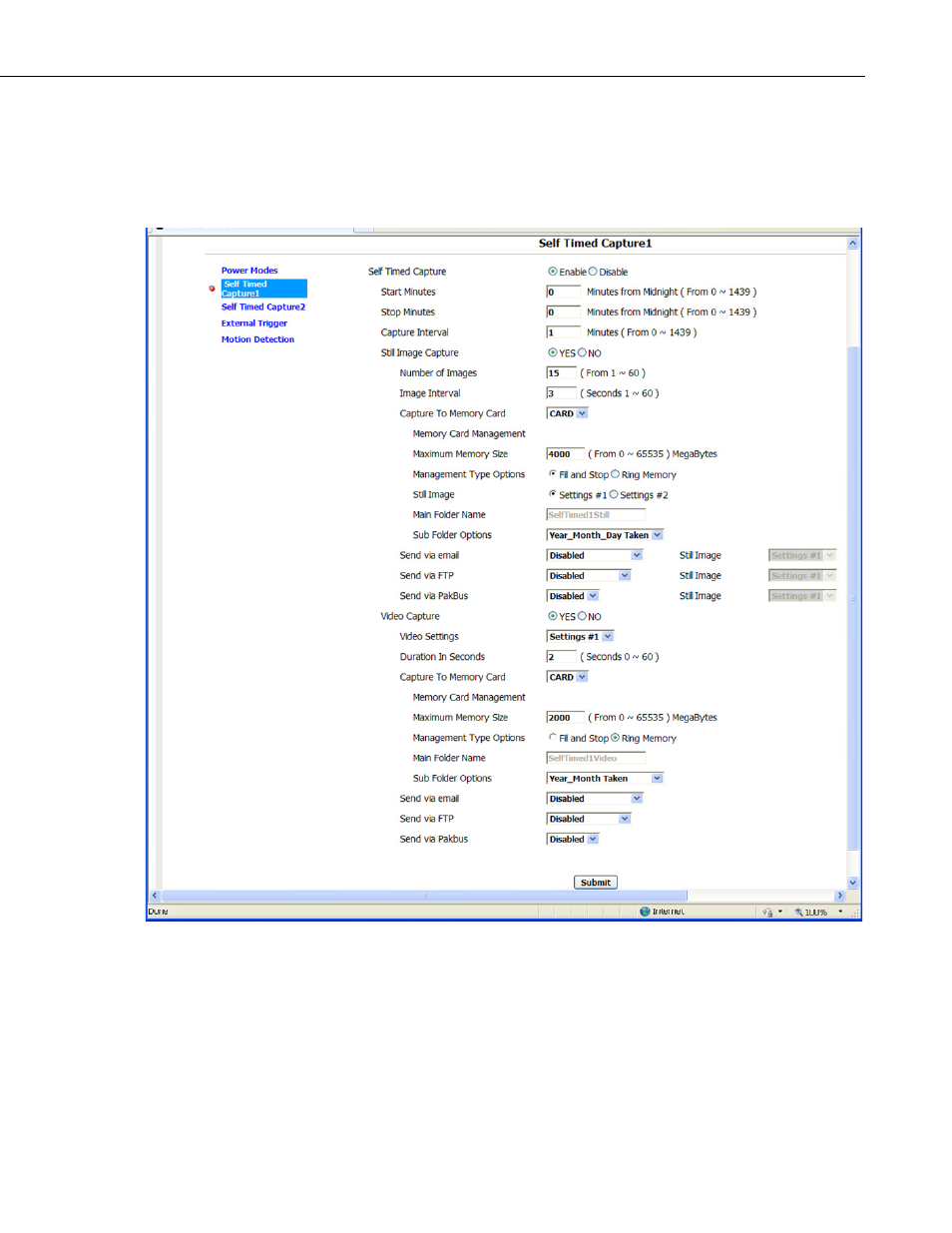

FIGURE 7-28. Self-Timed Capture Page
When either of the Self Timed Capture triggers is enabled, the CC5MPX uses
its internal clock as a trigger to initiate the capture of still images or video. In
addition to the Self Timed Capture1, there is also a second independent Self
Timed Capture2. Each configuration is independent of the other, but
overlapping events may delay or prevent one or the other from occurring. For
example, two video recordings or still image captures cannot occur at the same
time.
