18-1
Section 18. Installation
The camera enclosure is designed to be environmentally sealed for outdoor
installations. The enclosure provides protection from moisture or high
humidity. It is not intended for operation under water. All that is required for
use is an appropriate mounting fixture.

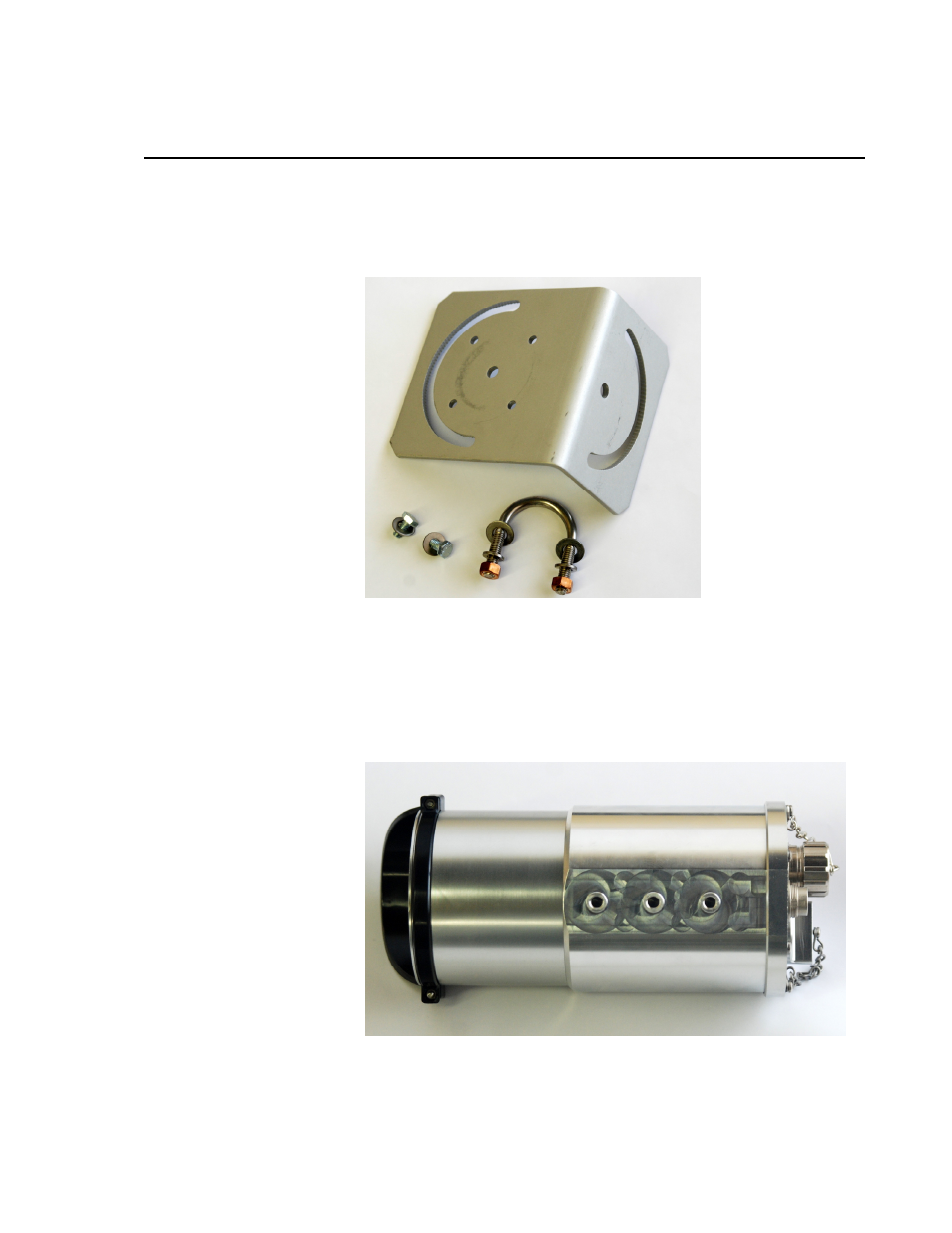

FIGURE 18-1. CC5MPX Mounting Kit
The camera is equipped with a set of three ¼-20 threaded mounting holes (see
FIGURE 18-2). These mounting holes are centered along the bottom of the
camera and are spaced 1.0 in. (25.4 mm) apart from one another. At least two
of the ¼-20 threaded holes are required for mounting the camera.
FIGURE 18-2. CC5MPX Mounting Holes
