Section 7. Camera Operation Using Web Browser Interface

7-20

• SelfTimed1Video

• SelfTimed2Still

• SelfTimed2Video

Clicking on one of the main folders will display the contents inside of that
folder. Normally another set of sub folders will be displayed. The camera
creates sub folders that are named by date. The date sub folders can be
configured to store images in folders named either by Year_Month or
Year_Month_Day (see FIGURE 7-21).

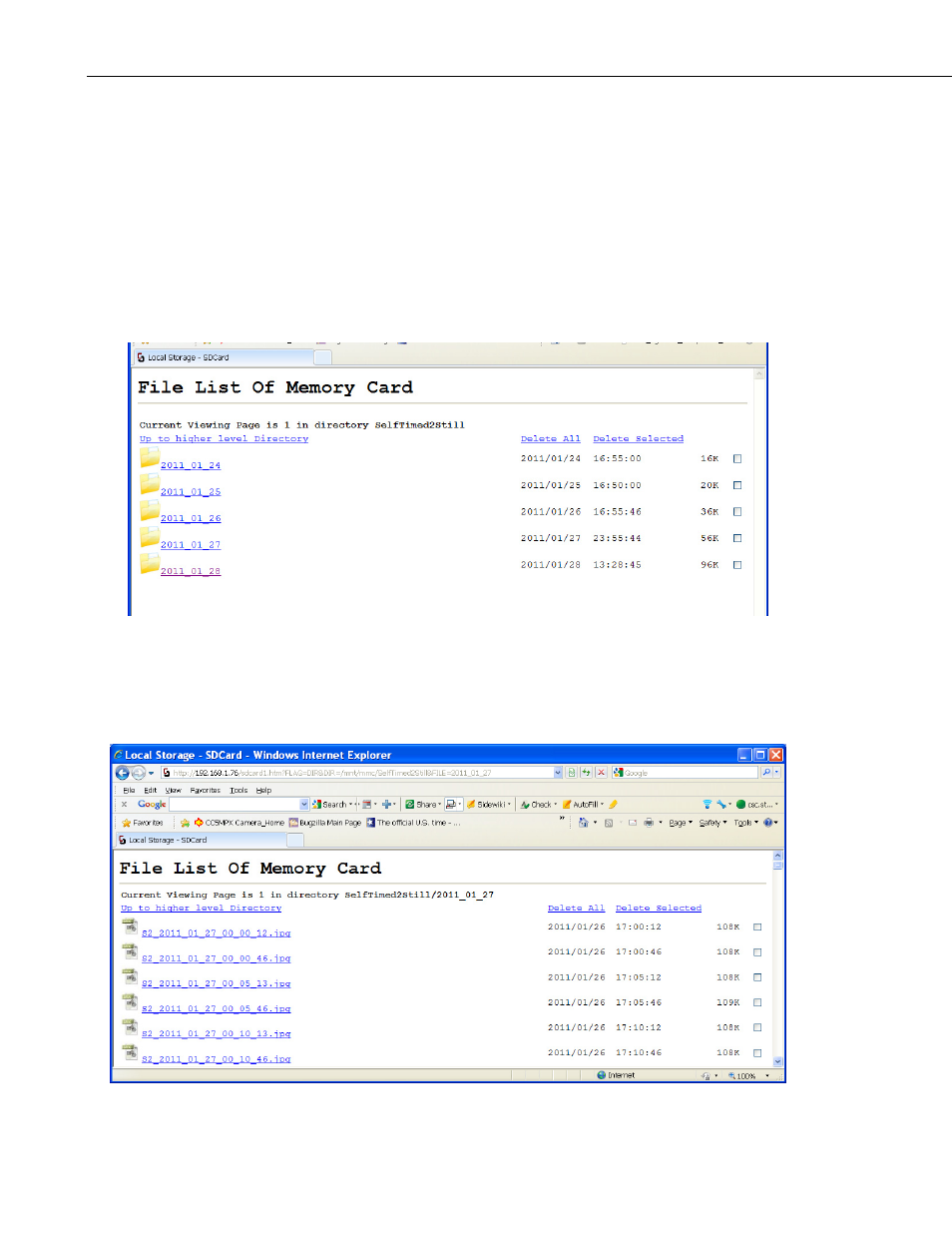

FIGURE 7-21. Date Subfolders

Actual pictures and video will be located in these subfolders and can be viewed
as shown in FIGURE 7-22.

FIGURE 7-22. Example Display of Files
