Section 4. Cables/Wiring
4-4
CC5MPXCBL1
Wire Color
Connection
Black PS100
G
Red PS100
+12V
Green
Gray Terminal Block
White PS100
G
Yellow
Gray Terminal Block
Blue
Gray Terminal Block
Clear PS100
G

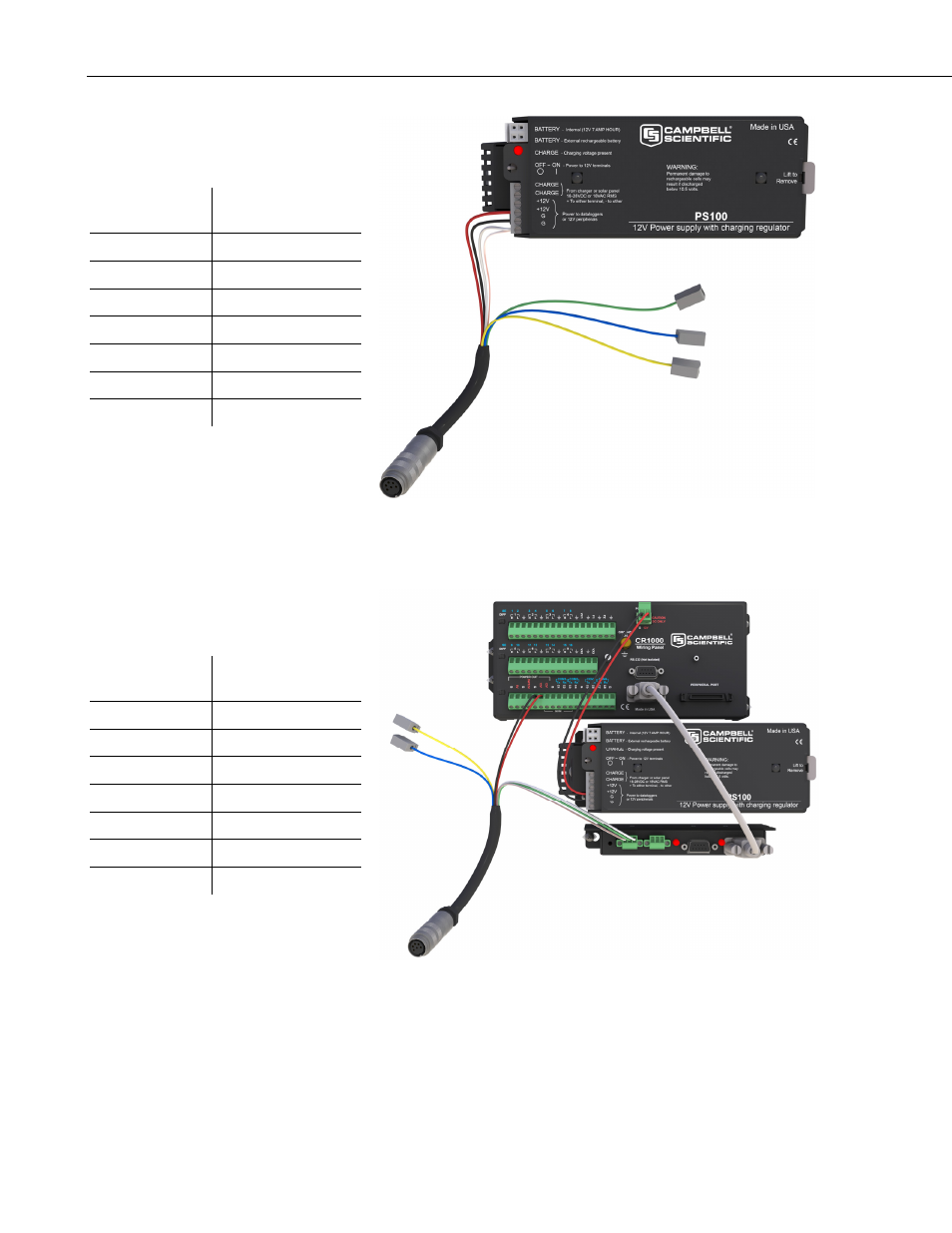

FIGURE 4-3. Camera wired for stand-alone operation without
datalogger. For example, network connection only.
CC5MPXCBL1
Wire Color
Connection
Black
CR1000 Power G
Red CR1000
12V
Green MD485
A
White MD485
B
Yellow
Gray Terminal Block
Blue
Gray Terminal Block
Clear MD485
G
FIGURE 4-4. CC5MPX Connected to MD485 Multidrop Modem
