Section 7. Camera Operation Using Web Browser Interface
7-21
The web interface will display up to 200 files per page. If more files are in the
directory, select “page T” to view the additional files (see FIGURE 7-23).

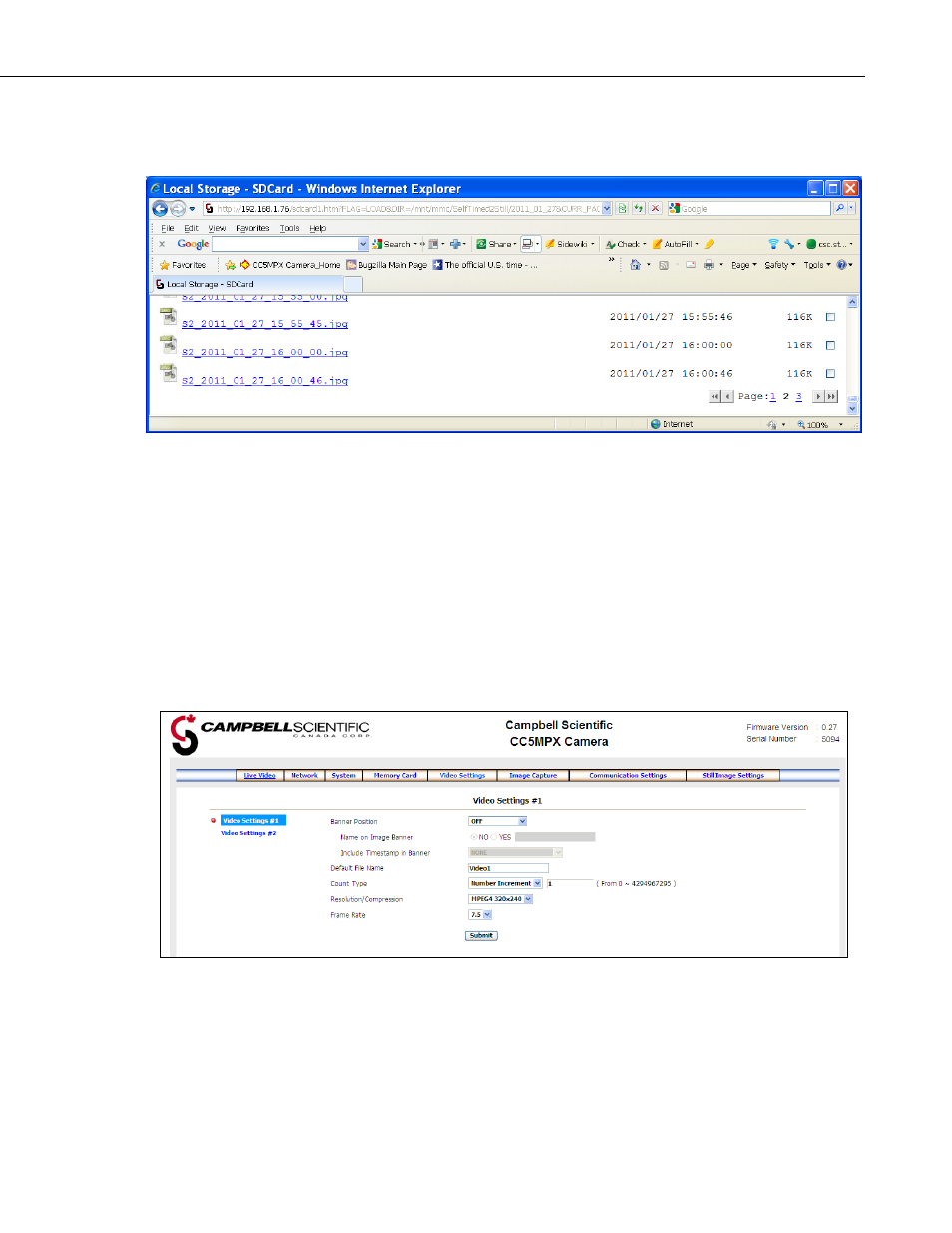

FIGURE 7-23. Example of Multiple Page Viewing
The web interface provides a method of viewing or deleting images and video
from the memory card. It is possible to delete either complete or portions of
Directories or Subfolders as well as individual images or videos. Be cautious
when using the Delete All function.
7.5 Video Settings
Selecting the Video Settings tab will bring up the Video Settings page (see
FIGURE 7-24). There are two sub tabs that provide two independent types of
video to be recorded.
FIGURE 7-24. Video Settings Page
