Section 5. camera hardware description, 1 ethernet rj-45 connection, Camera hardware description -1 – Campbell Scientific CC5MPX and CC5MPXWD Digital Network Cameras User Manual

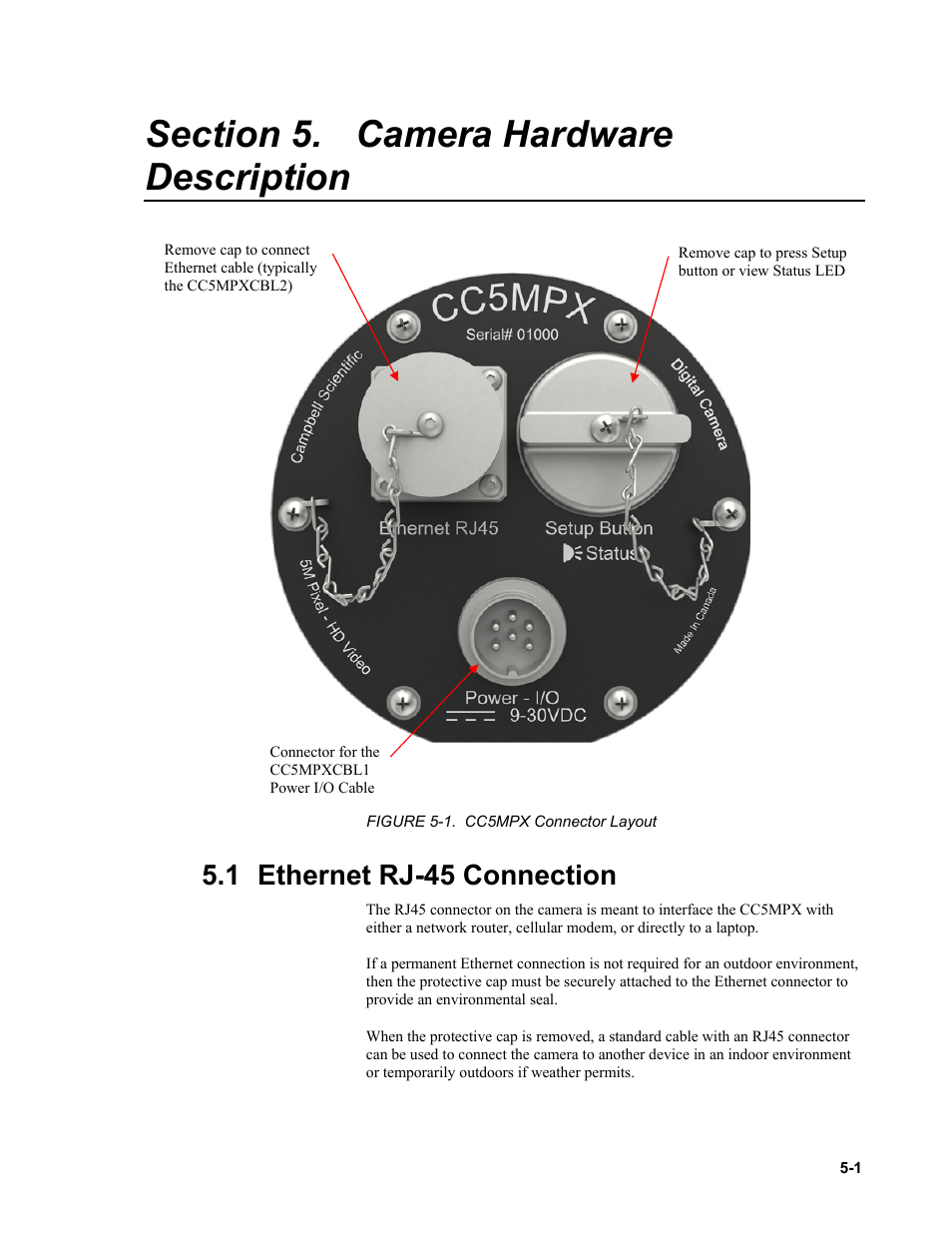

Page 29: Ethernet rj-45 connection -1, Figure 5-1. cc5mpx connector layout -1

Text mode
Original mode

Section 5. camera hardware description, 1 ethernet rj-45 connection, Camera hardware description -1 | Ethernet rj-45 connection -1, Figure 5-1. cc5mpx connector layout -1 | Campbell Scientific CC5MPX and CC5MPXWD Digital Network Cameras User Manual | Page 29 / 130
