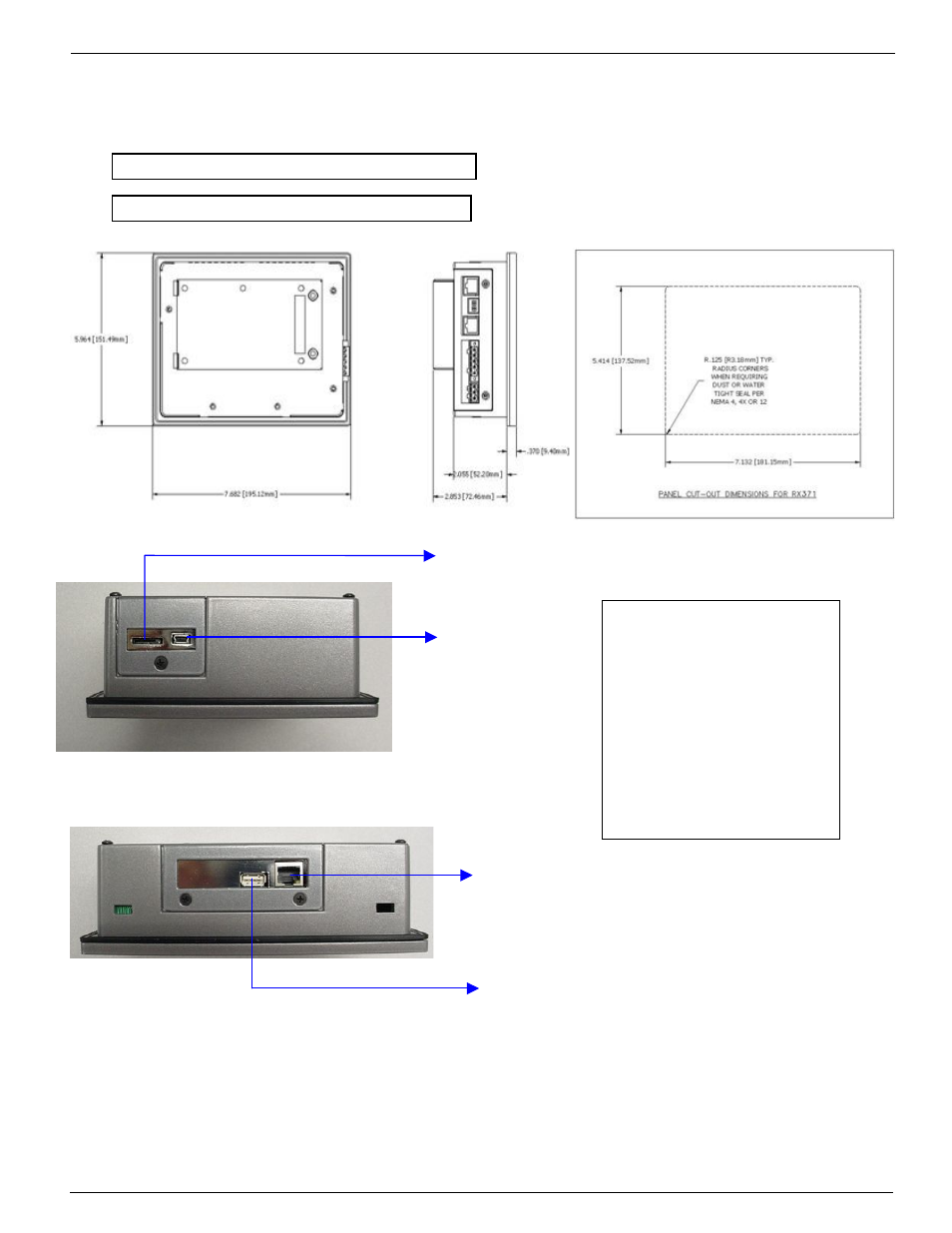

3. Panel Cut out and dimensions
Refer to the RX371 User Manual (MAN0924) for panel box information and a handy checklist of requirements.
4.
Ports and Connectors
Note: The tolerance to meet NEMA standards is ± 0.005” (0.1 mm).
Note: Max. Panel thickness: 5 mm
Ethernet
USB A
USBA: For flash drive connectivity
USBB: For network communication and
programming of OCS
Removable Memory: Uses Removable
Memory for data logging, screen captures,
program loading and recipes. Horner Part
No.: HE-MC1
Serial Communications: MJ1/MJ2: (RS-
232 / RS-485) Use for Cscape programming
and Application-Defined Communications.
Ethernet: Used for Cscape programming
and Application-Defined Communications.
Removable Media
USB B
