Horner APG XL10e OCS - Manual (Page 2)

MAN0945-04-EN Specifications / Installation
__________________________________________________________________________________________________________________________________________________________________________
1/24/2011 Page 2 of 4 #1037
4

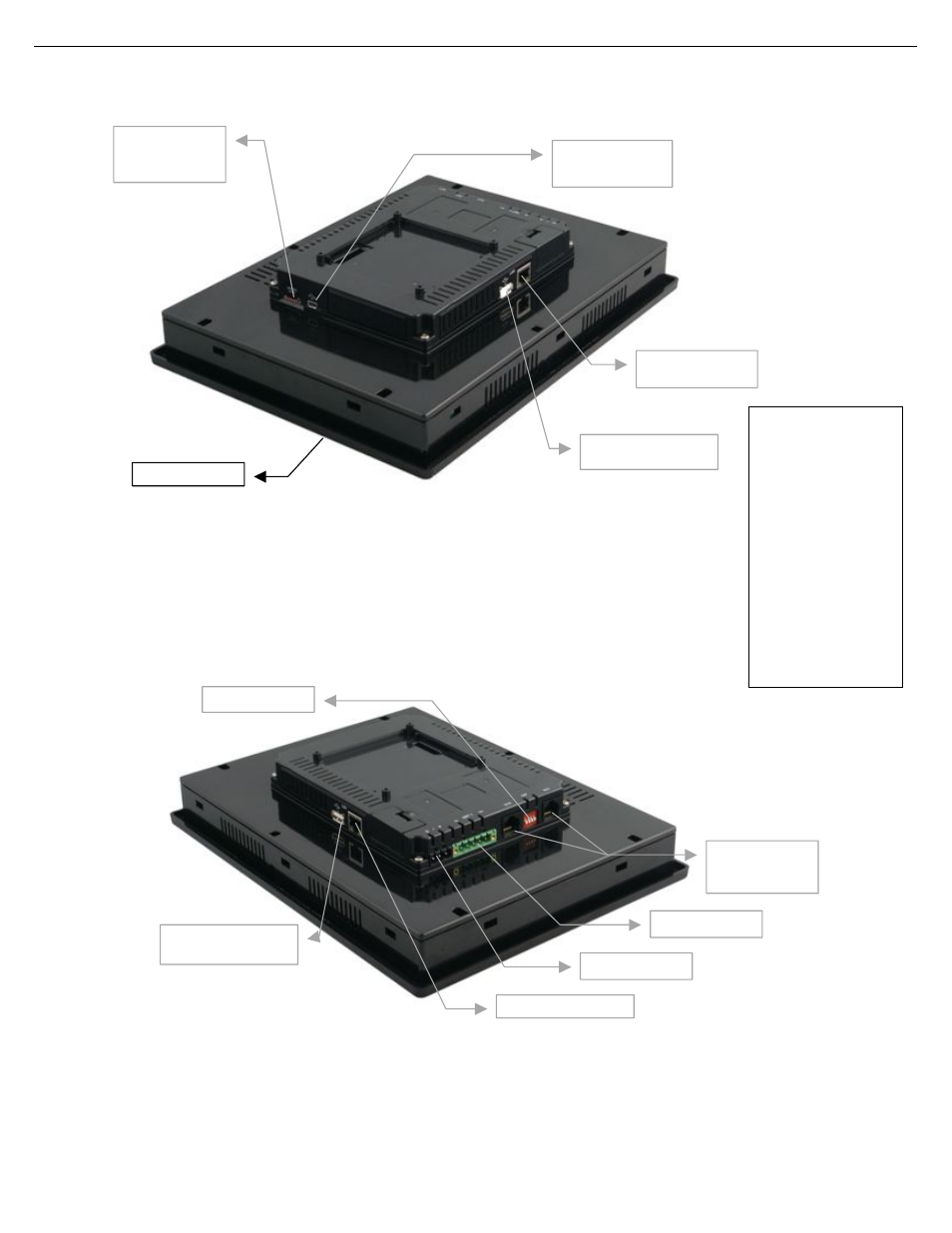

Ports and Connectors
Removable
Media
Memory Slot
User Interface
USB
Mini B USB 5 pin
programming port
Serial Comm
MJ1
MJ2
CAN Comm
USB
USB A Port
DIP Switches
Power
Micro SD Memory Slot:
Uses Removable Memory for
data logging, screen captures,
program loading and recipes.
Horner Part No.: HE-MC1
USBA: For flash drive
connectivity
Serial Communications:
MJ1/MJ2: (RS-232 / RS-485)
Used for Cscape programming
and Application-Defined
Communications.
Ethernet: Used for Cscape
programming and Application-
Defined Communications.
USBB: For network
communication and
programming of OCS
USB
USB A Port
Ethernet
Ethernet
