Instruc
tions manual - English - EN
7

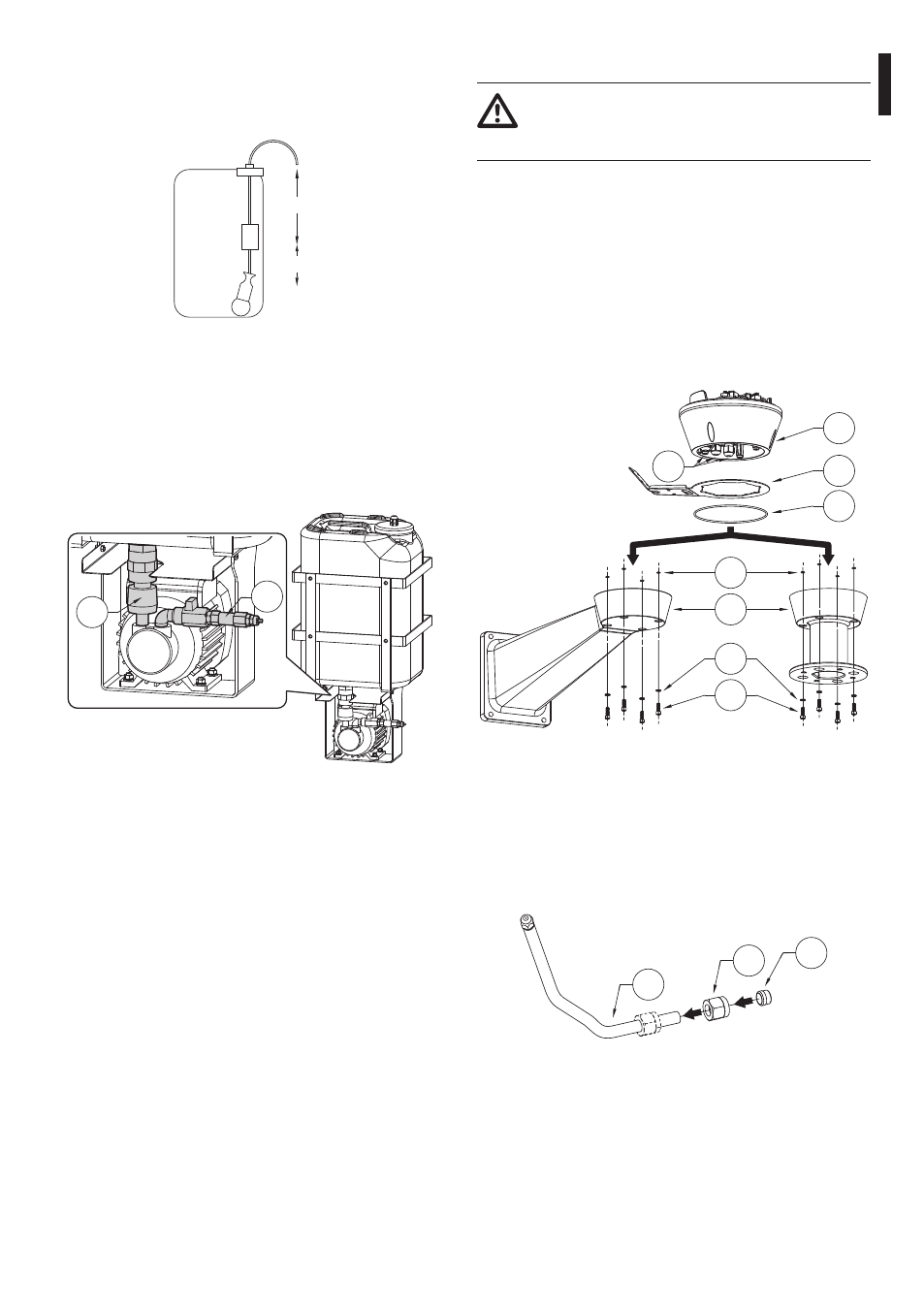

6.1.5.3 Pump with 30m (98ft) delivery
Adjust the position of the level controller and the
weight.
220mm
120mm
Fig. 11
Fill the tank with water and insert it in the metal
cage, taking care to insert the male/female hydraulic
coupling (01) correctly. Put the float inside the tank
and screw the plug on. Check the delivery hose
coupling for the pump (02) to make sure a small
quantity of water comes out.
02
01
Fig. 12
Connect the supply pipe.
The system is ready to be powered.
6.1.6 Washer installation (ULISSE)
To attach the base to the support use the
provided screws (05), washers (06), screw
gaskets (07) and gasket (08).
Fastening the support (01), place the washer pipe
support (03) in the desired position.
Insert the cables inside the support so that they
protrude by about 50cm. Insert the cable in the cable
glands (02). Keeping the base (04) at about 20cm
(7.9in) from the support, lock the cable glands. Set
the base up on the stand arranging the cables inside.
Attach the base to the support using the screws
supplied (05).
01
02
03
04
05
06
07
08
Fig. 13
Cut the cables to size and either restore or make the
connections to the positioning unit.
Shorten the washer pipe (01) as needed. Unscrew the
nut (02) and slide it along the pipe. Insert the end of
the pipe into the ogive (03).
03
01
02
Fig. 14
