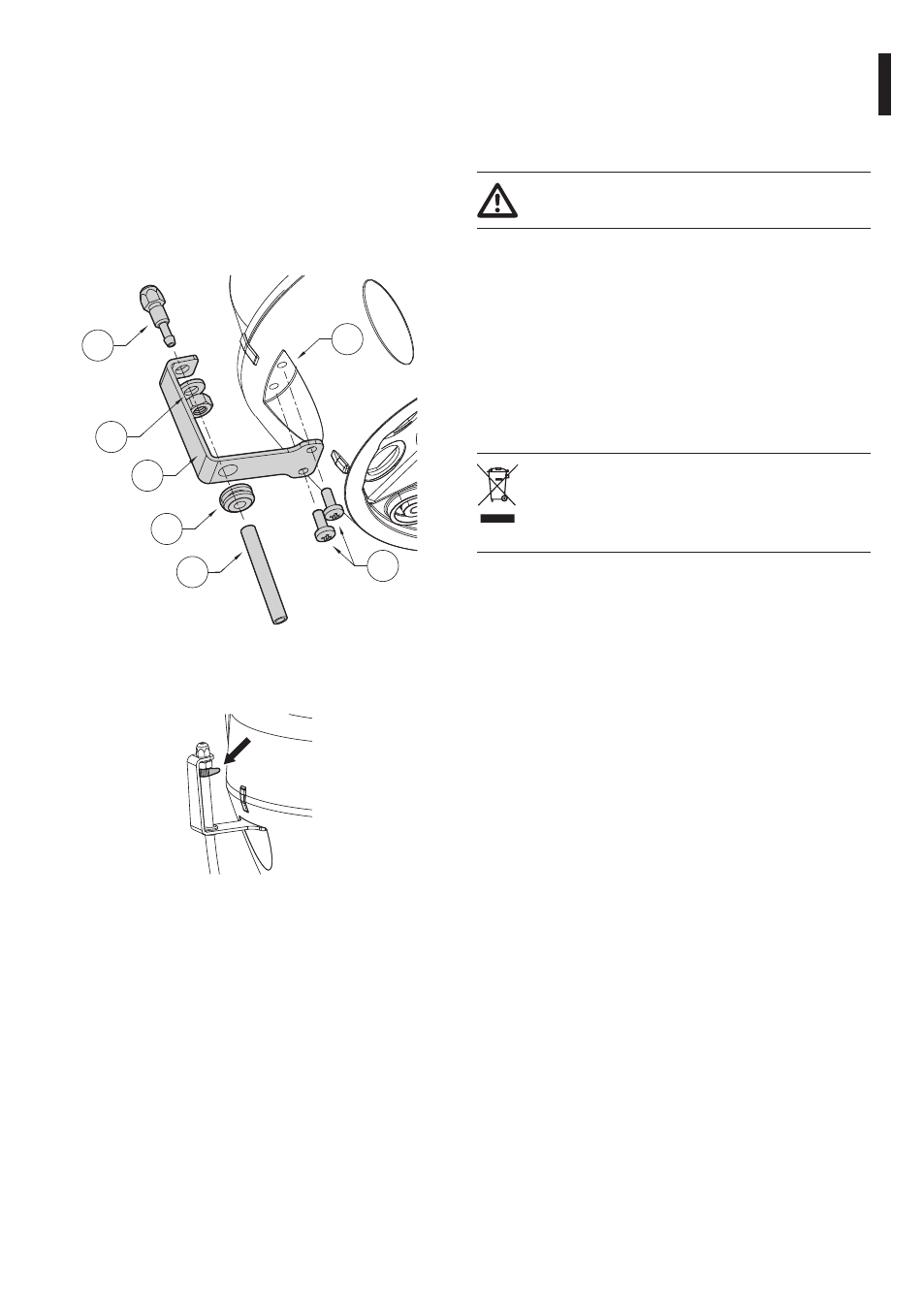

6.1.7 Washer installation (ULISSE
COMPACT)
Position the nozzle support bracket (01) in the
appropriate groove on the base (02) and lock it using
the 2 screws (03). Remove the nozzle (04) from the
supplied pipe. Position the nozzle and lock it using
washer and nut (05). Install the gasket (07) on the
bottom hole on the bracket. Pass the supply pipe (06)
through the gasket and connect it to the nozzle.
02
04
06
07
01
05
03
Fig. 20
Secure the supply pipe using the provided clamp.
Fig. 21 Final washing position.
To start the washer refer to the pan & tilt manual.
7 Maintaining and cleaning
7.1 Maintaining
7.1.1 Fuses replacement
Operation valid for pump with 5m (16ft) or
11m (36ft) delivery.
Should it need to be replaced, the fuses fitted are the
follow:
OMEGA GT520242
Alternatively use fuses with the following features:
T 4A L
