Instruc
tions manual - English - EN
5

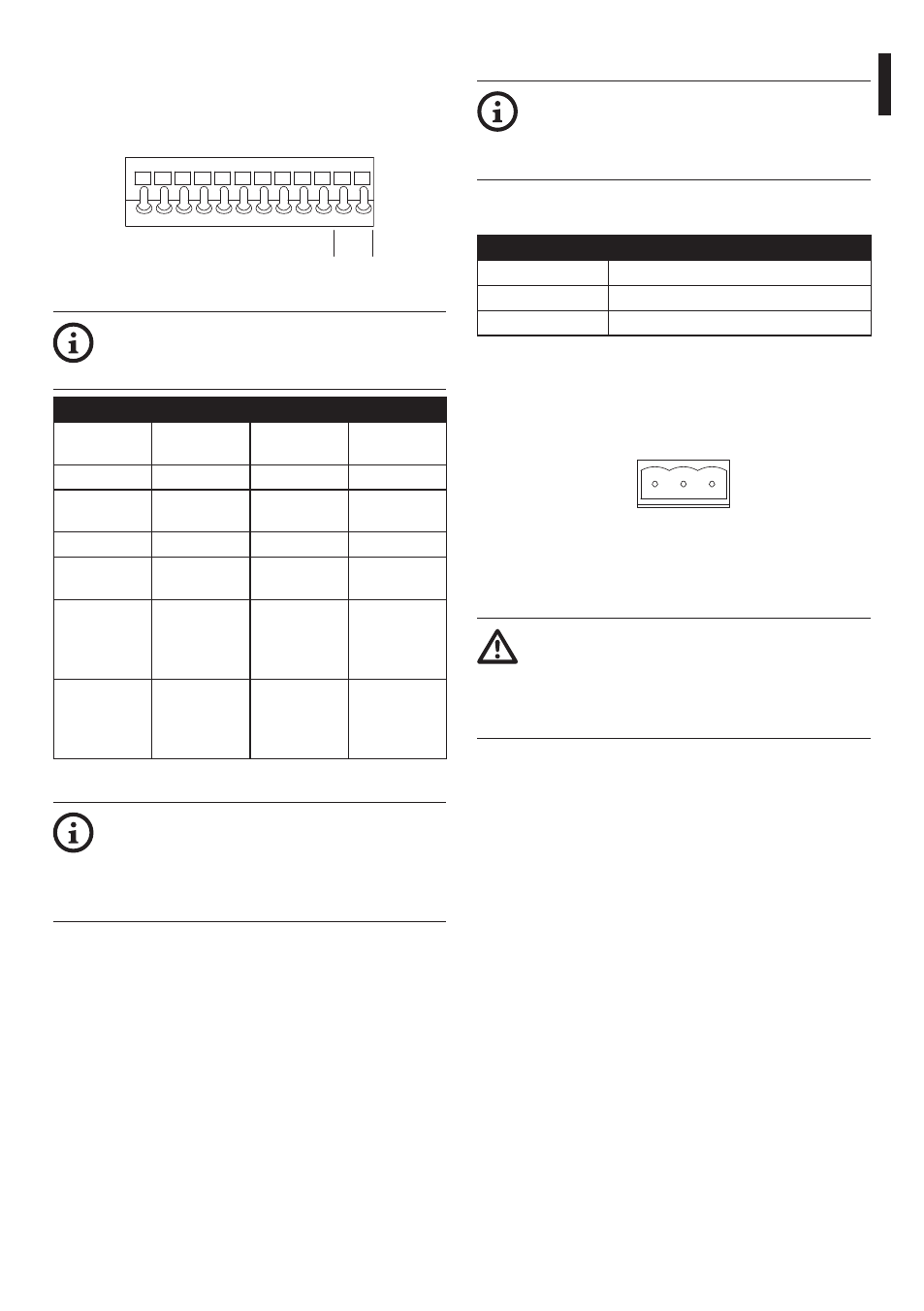

6.1.4.2 Pump and alarms connection
Connect the Pan & Tilt to the J9 terminal contacts as
described in the table below.
J9
A B
RS485 GND
AV
L
A2L A1L
GC
W
CW
GCP
CP L2 L1
Fig. 7
The AVL, GND, A1L 2 A2L contacts can only
be used in pump models equipped with
floats.
PUMP AND ALARMS CONNECTION
Connector Function ULISSE ULISSE
COMPACT
CP Pump control O1 R2A
CGP GND Pump
control
C1 R2B
AVL Float alarm AL1 W
GND GND Float
alarm
COM / AGND G
A1L Float alarm
(Clean con-
tact)
Alarm contact
1 (only for
network
version)
-
A2L Float alarm
(Clean con-
tact)
ALARMS
contact (only
for network
version)
-
Tab. 2
The pump can be switched on manually
(without using the pan & tilt) using the
CP and CGP dry contacts. This solution is
particularly suitable when washing the
housing windows.
6.1.4.3 Wiper connection
If you are using a pan & tilt equipped with
a wiper, skip the instructions here below
and follow those provided in the relative
manual.
For the manual activation of the wiper, refer to the J9
terminal contacts (Fig. 7, page 5).
WIPER CONNECTION
Connector Function
CW Wiper control (clean contact)
CGW GND Wiper control (clean contact)
Tab. 3
Join connector J7 to the wiper observing the order of
the PERM, SW and COM contacts (refer to the wiper
manual).
J7
PERM
SW
CO
M
WIPER
Fig. 8
The voltage applied to connector J7
(WIPER) is the same as the one delivered
to the power supply terminal. Use a wiper
having electric characteristics that are
suitable for the power supply voltage.
