Veriteq vLog 4.4 User’s Guide
37

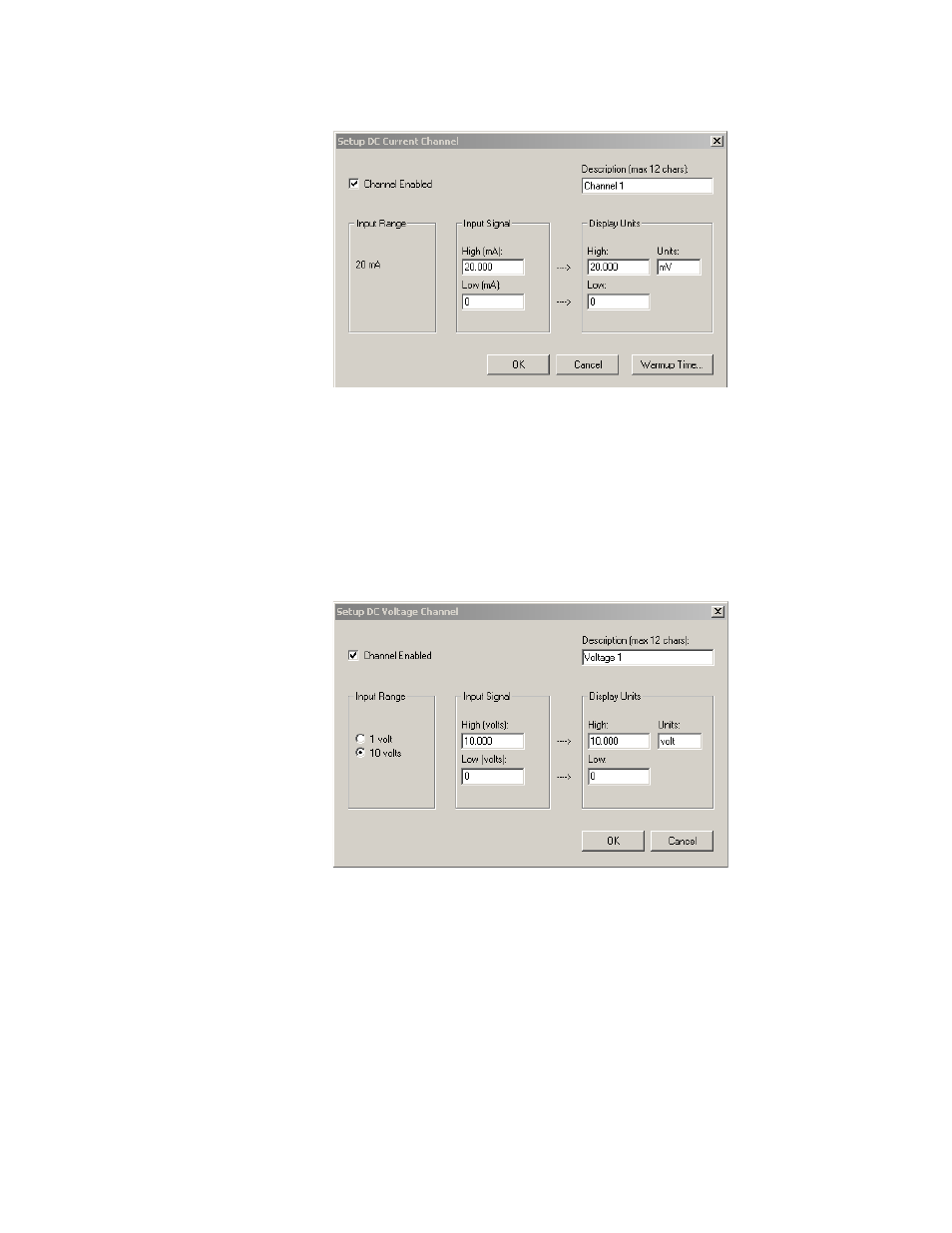

3. To setup a DC Current channel:
a. Ensure the Channel is enabled by selecting the Channel Enabled check
box.
b. If applicable, enter a new channel description.
c. From Input Signal, specify the range for your transducer output.
d. Under Display Units, specify the range and units to display instead of
the input signal range. For example, psi instead of mA.
e. To set warmup time and save transducer battery life, see Configuring
Warm Up Time on page 38.
4. To setup a Voltage channel:
a. Ensure the Channel is enabled by selecting the Channel Enabled check
box.
b. If applicable, enter a new channel description.
c. If applicable, for input range, choose whether this is a 1 or 10 volt range
channel.
d. From Input Signal, specify the range for your transducer output.
e. Under Display Units, specify the range and units to display instead of
the input signal range. For example, psi instead of v.
Veriteq also supports a Boolean DC Voltage Channel type on some VL-
4000 loggers. For this type, specify the Threshold Voltage and the result-
ing display units. For example, if you want voltage above the threshold
