Vaisala PTB330TS - Manual (Page 85)

Chapter 7 ____________________________________________________________ Technical Data
VAISALA_______________________________________________________________________ 83

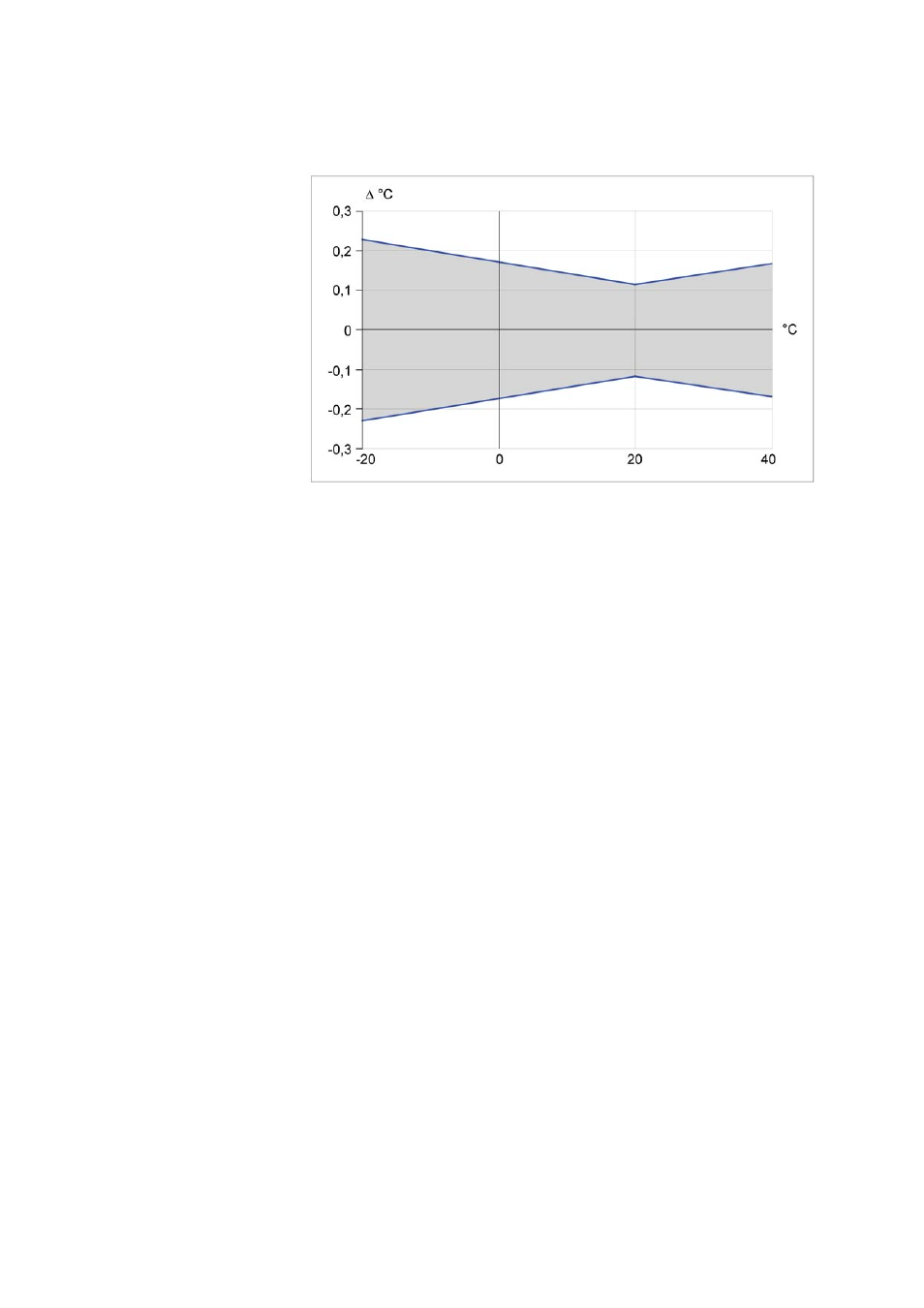

0901-016 Figure 28 Accuracy Over Temperature Range
Inputs and outputs
Available Parameters
Pressure parameters P, P
3h
, HCP, QFE, QNH
Humidity and temperature parameters RH, T, T
df
, T
d
, x, T
w
MI70 probe ports 2
MI70 data interface RS-232 (accessible only with MI70
Link software)
PTB330 supply voltage 10 ... 35 VDC (if not powered by
MI70)
PTB330 data interface RS-232C
PTB330 serial I/O connectors RJ45 (service port)
Male 8-pin M12 (user port)
HMP155 data interface RS-485
HMP155 serial I/O connector Male 8-pin M12
