User's Guide ______________________________________________________________________
24 ___________________________________________________________________M210983EN-A
A shoulder strap is included with the transport case. The attachment
holes for the shoulder strap are located on the handle; see
. The other two holes on the case can be used to lock the case
with a padlock (not supplied).
0902-009

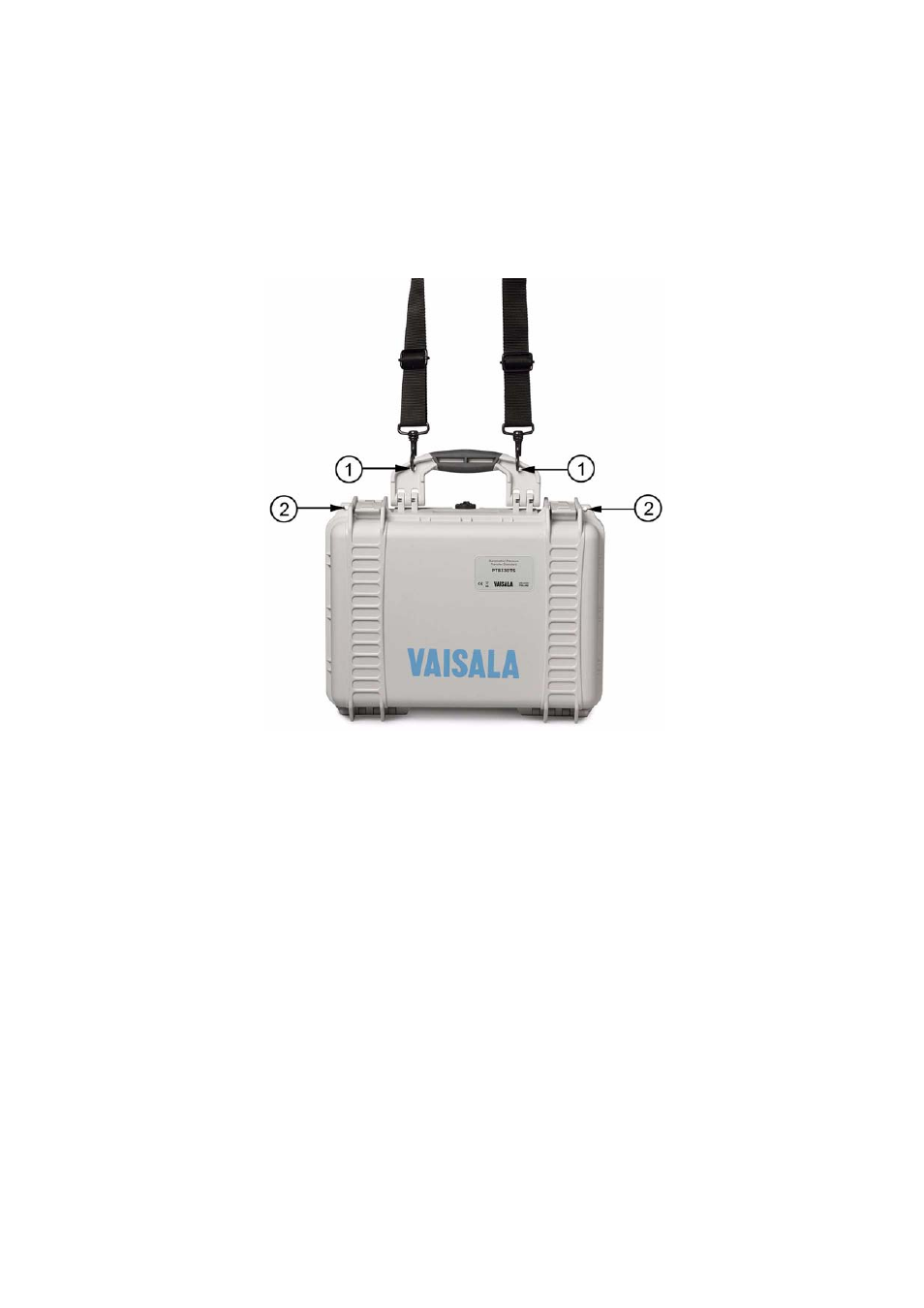

Figure 6
Transport Case With Shoulder Strap
Basic Use of the MI70 Indicator
The MI70 indicator is used as the display and keypad in the PTB330TS.
Connections to the PTB330 barometer and the HMP155 probe are
through the two connection ports at the bottom of the indicator. The
MI70 indicator has a rechargeable battery, which provides the operation
power to the PTB330 and the HMP155.
where
1
=
Holes for shoulder strap clips
2
=
Padlock holes for locking the case (lock not included)
