Chapter 3 ________________________________________________________________ Operation
VAISALA_______________________________________________________________________ 27
0810-073

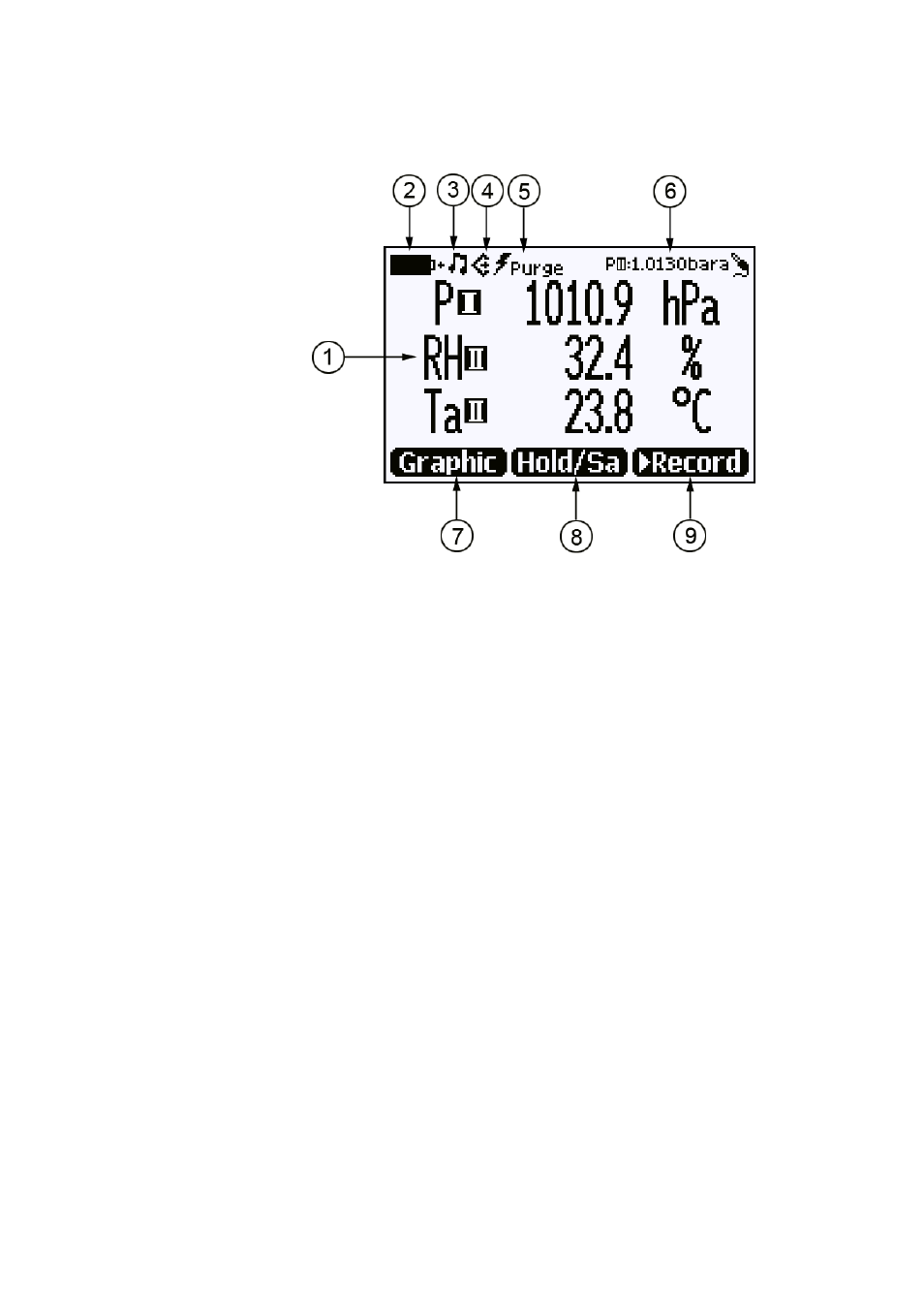

Figure 9
MI70 Basic View
You can change the default shortcuts of the shortcut buttons; see section
MI70 Indicator Settings on page 31
.
Numbers refer to
1
=
Selected quantities (1 ... 3), measurement value and unit.
Also shows the MI70 port (I or II) that is connected to the
instrument that measures the quantity.
2
=
Battery indicator (showing full battery)
3
=
Alarm indicator, shown when the alarm function is enabled.
4
=
Indicator for serial connection, shown when the MI70 is
connected to a PC
5
=
Indicator for chemical purge, shown when purge is active
6
=
Environment settings (showing pressure compensation setting
for RH measurement)
7
=
Shortcut button Graphic switches the display to graph mode
8
=
Shortcut button Hold/Sa freezes the display, and allows you
to save the data point to memory
9
=
Shortcut button Record takes you to the Recording/Viewing
menu
