3. Adjust the length of cable
between the cable gland and the
terminal blocks. Make the cable
short enough to close the cover
without leaving a cable loop in
the transmitter.
4. Disconnect the wired screw
terminal blocks by pulling them
off from the component board.

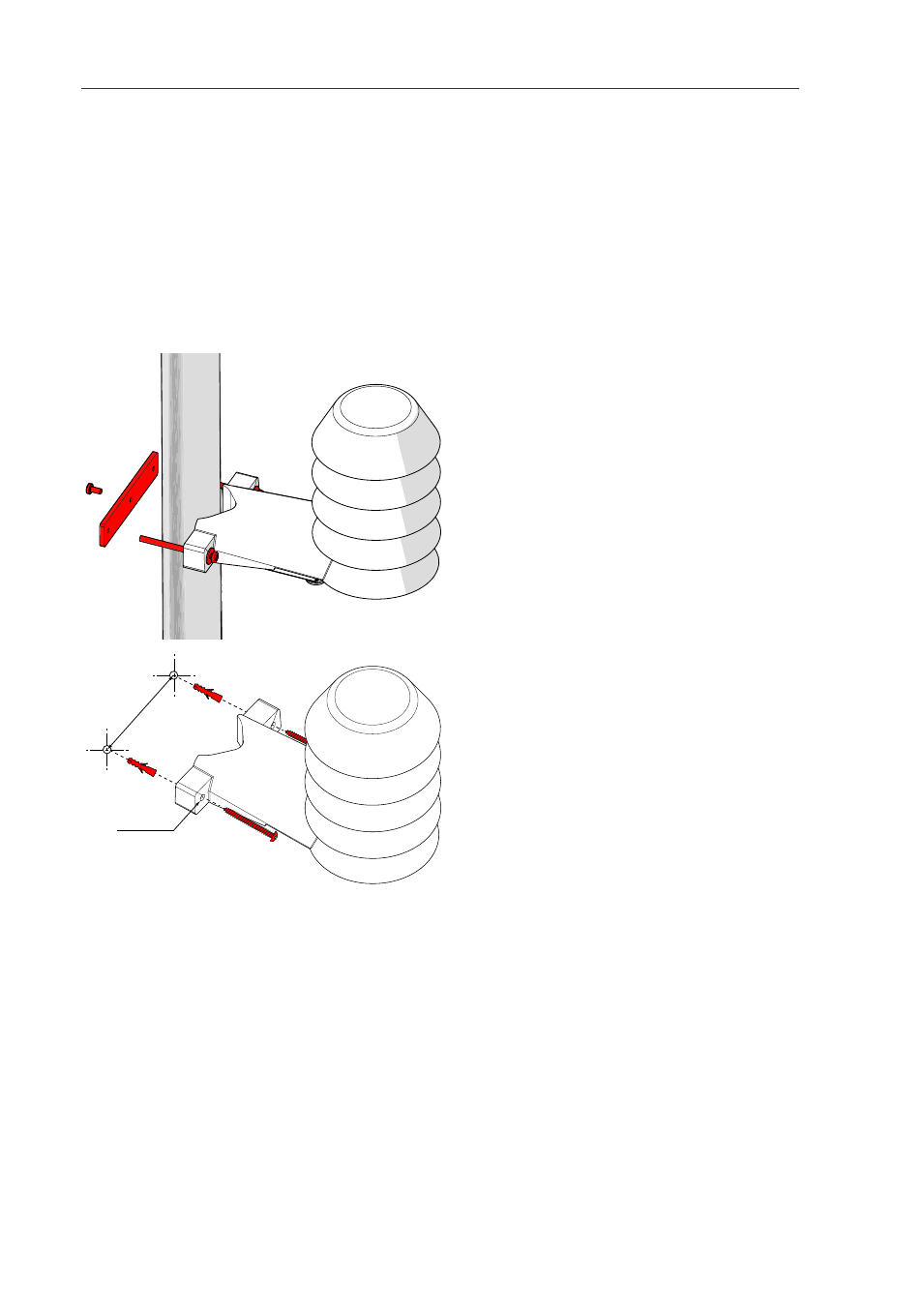

5. Mount the transmitter according
to the type of the installation site:
o
Pole installation
a. Use the supplied clamp
and screws to mount the
transmitter on a pole.
b. To prevent the transmitter
from turning on the pole,
tighten the set screw on
the center hole of the
clamp.
o Wall installation
a. Drill two holes for wall
plugs 100 mm apart.
b. Place the wall plugs in the
holes.
c. Mount the transmitter
using two screws of
sufficient length.
100 mm
Ø 5.5 mm
