HMD110/112 Installation
n
Medium size crosshead screwdriver (Pozidriv) for screws on
cover and flange.
n
Small slotted screwdriver for screw terminals.
n
Drill with 2.5 mm and 13 mm bits for making the installation
holes.
n
Tools for cutting and stripping wires.
n
19 mm open-end wrench for tightening the cable gland.

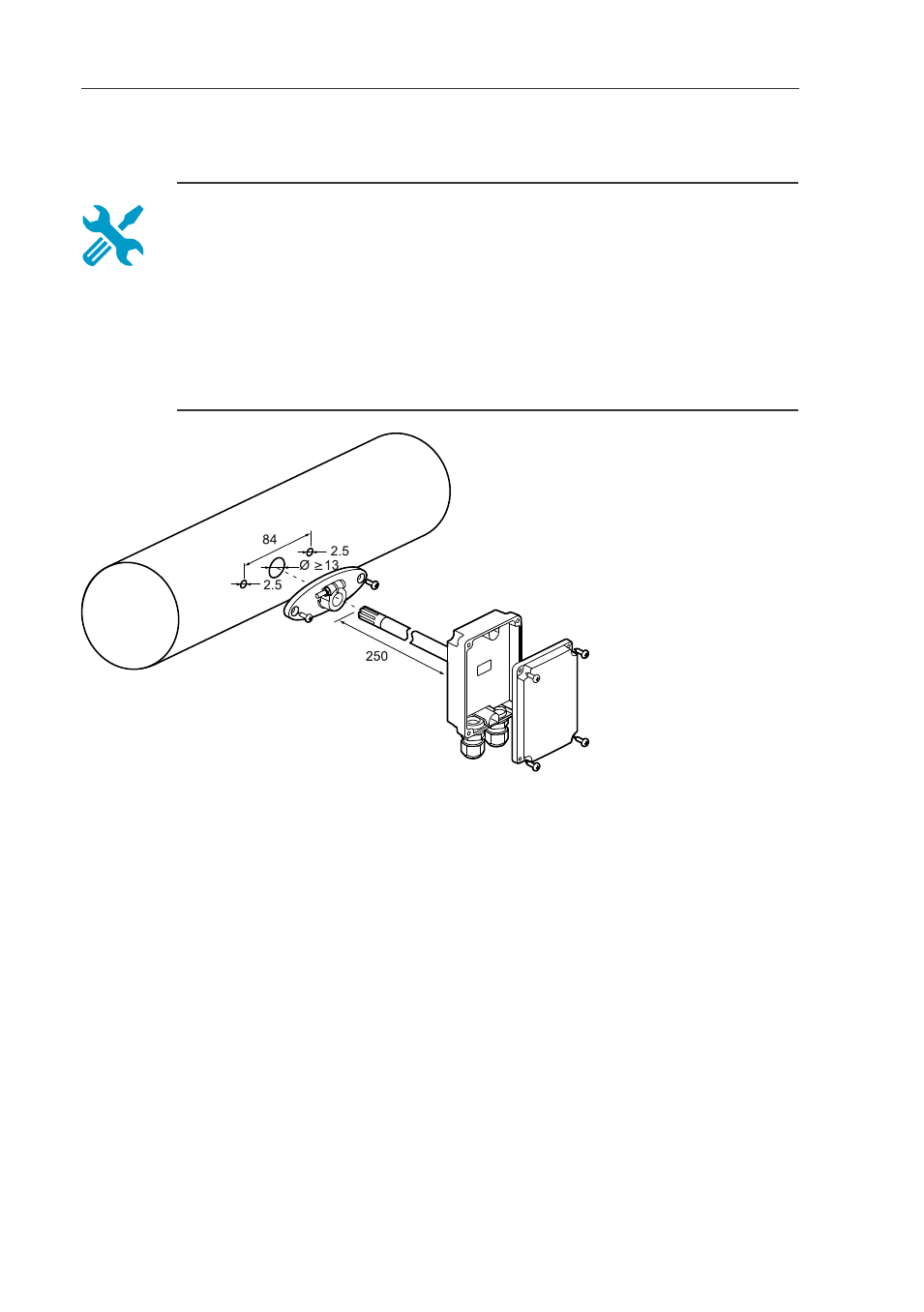

Figure 5 HMD110/112 Installation
1. Remove the yellow transport protection cap and separate the fastening
flange from the transmitter.
2. Use the flange to mark the location and size of the installation holes on the
side of the duct.
3. Drill the installation holes in the duct. Secure the fastening flange to the duct
with the two screws (included).
