HMS110/112 Parts

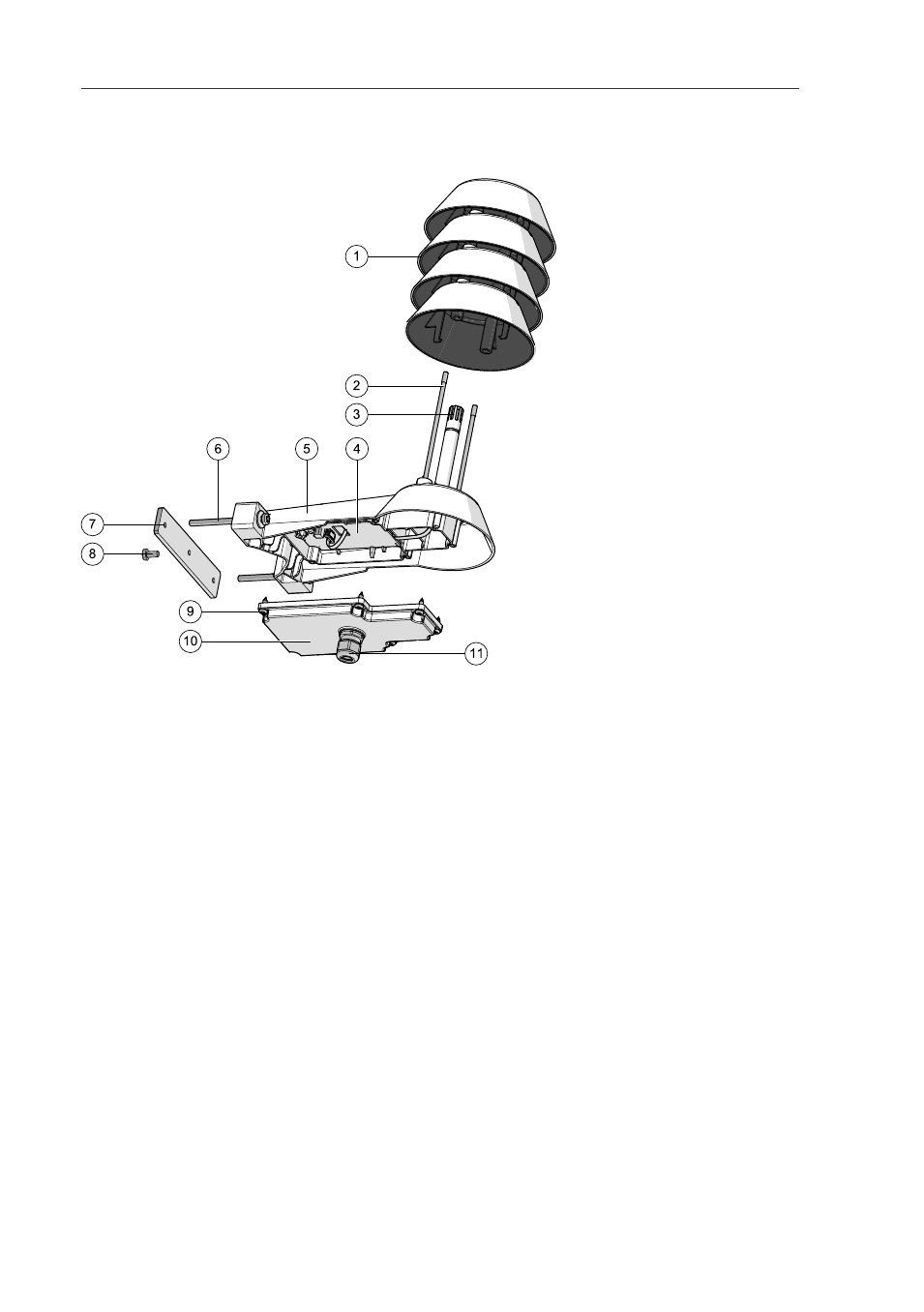

Figure 3 HMS110/112 Parts
1 = Radiation shield. Do not remove for installation, only when replacing the
sensor or filter.
2 = Long screws that keep the radiation shield in place (2 pcs),
3 mm hex socket.
3 = Sensors for humidity and temperature under PTFE membrane filter.
4 = Component board. See Component Board on the facing page.
5 = Transmitter body.
6 = Screws for pole mounting (2 pcs, medium size Pozidriv).
7 = Clamp for pole mounting. The holes are threaded for the included pole
mounting screws and set screw.
8 = Set screw (medium size Pozidriv). Install after pole mounting to stop the
transmitter from turning.
9 = Medium size crosshead screws (6 pcs).
10 = Transmitter cover.
11 = Cable gland. Suitable for 4 ... 8 mm diameter cable.
