Mac mini (Late 2009) Take Apart — Interconnect Board 128 2009-11-03
Removal
Remove the black
1
tape (not shown)
covering the 3
connectors.

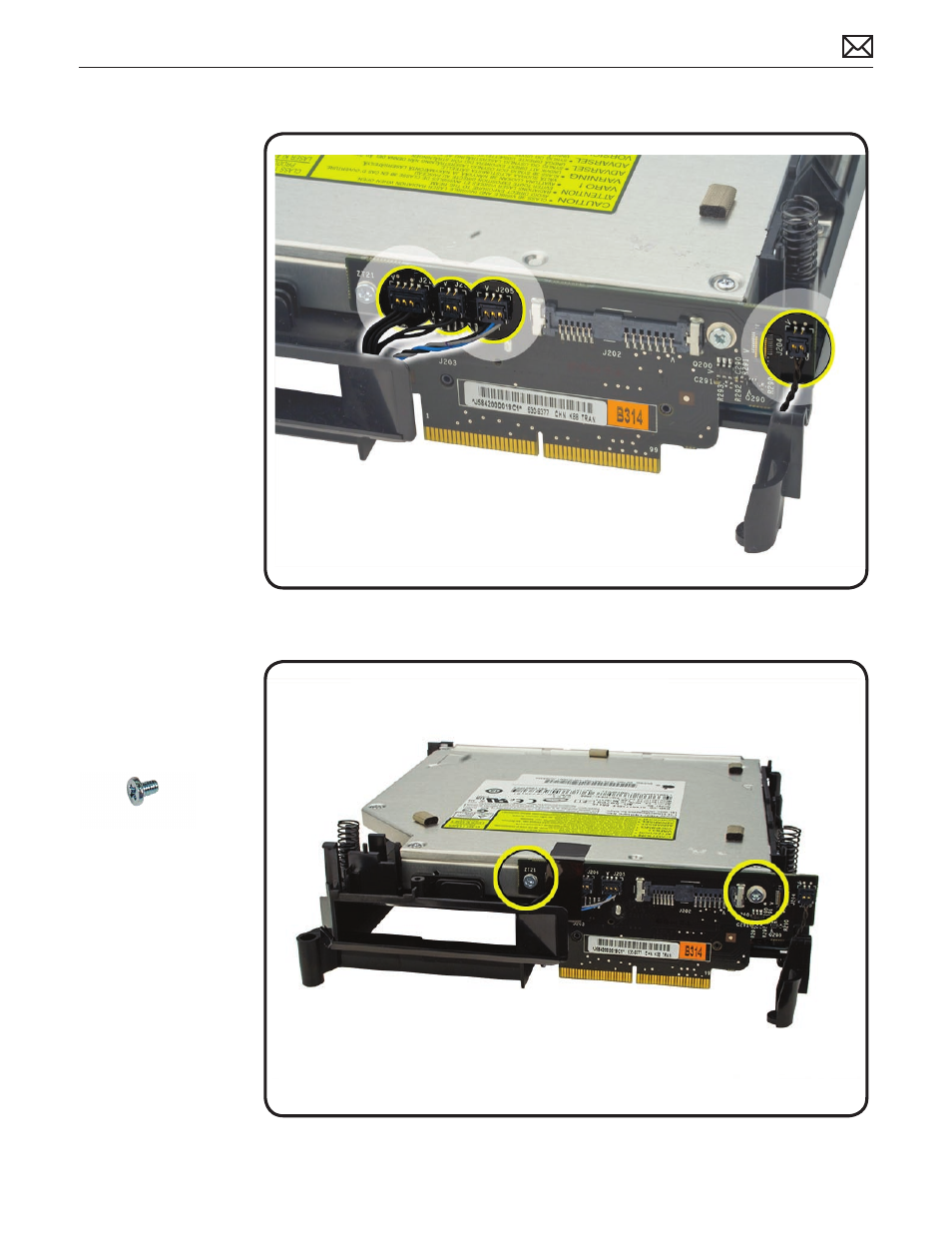

Disconnect 4 cables:
2
IR (J211) •
speaker (J206) •
fan (J205) •
hard drive sensor •
(J204)
3
Using Phillips #0
screwdriver, remove 2
screws 922-8820.
Pry the interconnect 4.
board from the
connectors on the
optical and hard drive.
