2. Next, install the SIM Shelter. With a 3/16" (5 mm) drill bit, drill two holes approxi-
mately 2" (50 mm) apart. Use a carpenter’s level to ensure the holes will be level.
3. Drill two more holes 7-1/32" below the upper holes.
4. Insert the 1/4" x 1-1/2" lag screws through the flat washers, and through the holes
at the top of the shelter into the post.
Using an adjustable wrench or 7/16" wrench, tighten the lag screws.
5. Insert the 1/4" x 1-1/2" lag screws through the flat washers, and through the holes
at the bottom of the shelter into the post.
6. Using an adjustable wrench or 7/16" wrench, tighten the lag screws.

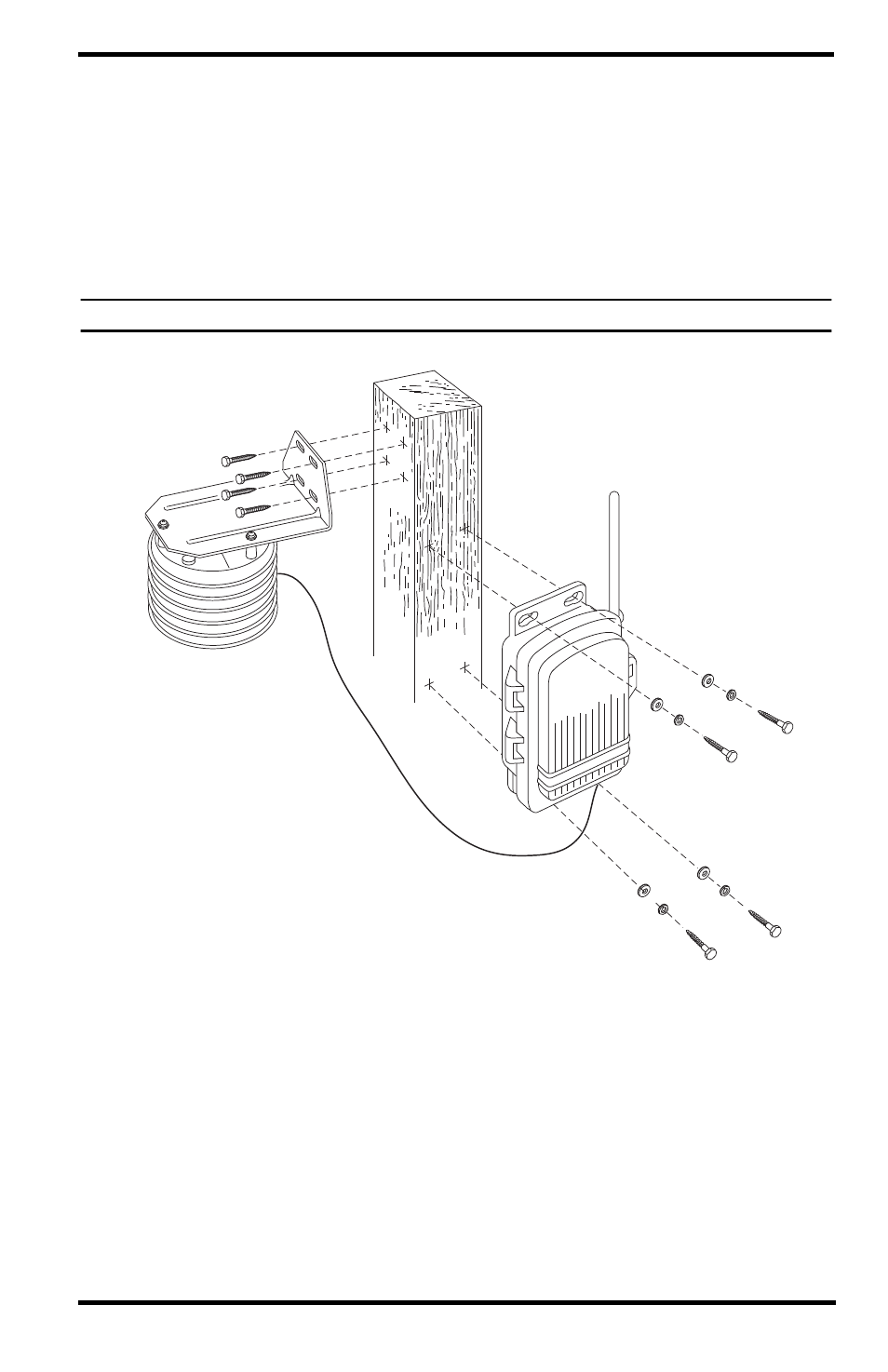

Note: Review the illustration below to see how the Temp/Hum Station is mounted on a vertical surface.
Mounting on a Vertical Surface
1/4" x 1-1/2" Lag Screws
1/4" Flat Washers
1/4" Lock Washers
1/4" x 1-1/2" Lag Screws
Sensor Cable
