3. When the screws are completely loos-
ened, lift the mounting bracket away
from the radiation shield.
4. Rotate the mounting bracket and
replace it on the radiation shield.
5. Fasten the mounting bracket in place
using the three long screws as shown in
the illustration right.
Applying Power
1. Locate the SIM Shelter and open it by
pushing the latch away from the Shelter
body while pulling up on the tab with your index finger. Once open, you should
be able to see the sensor interface module (SIM).

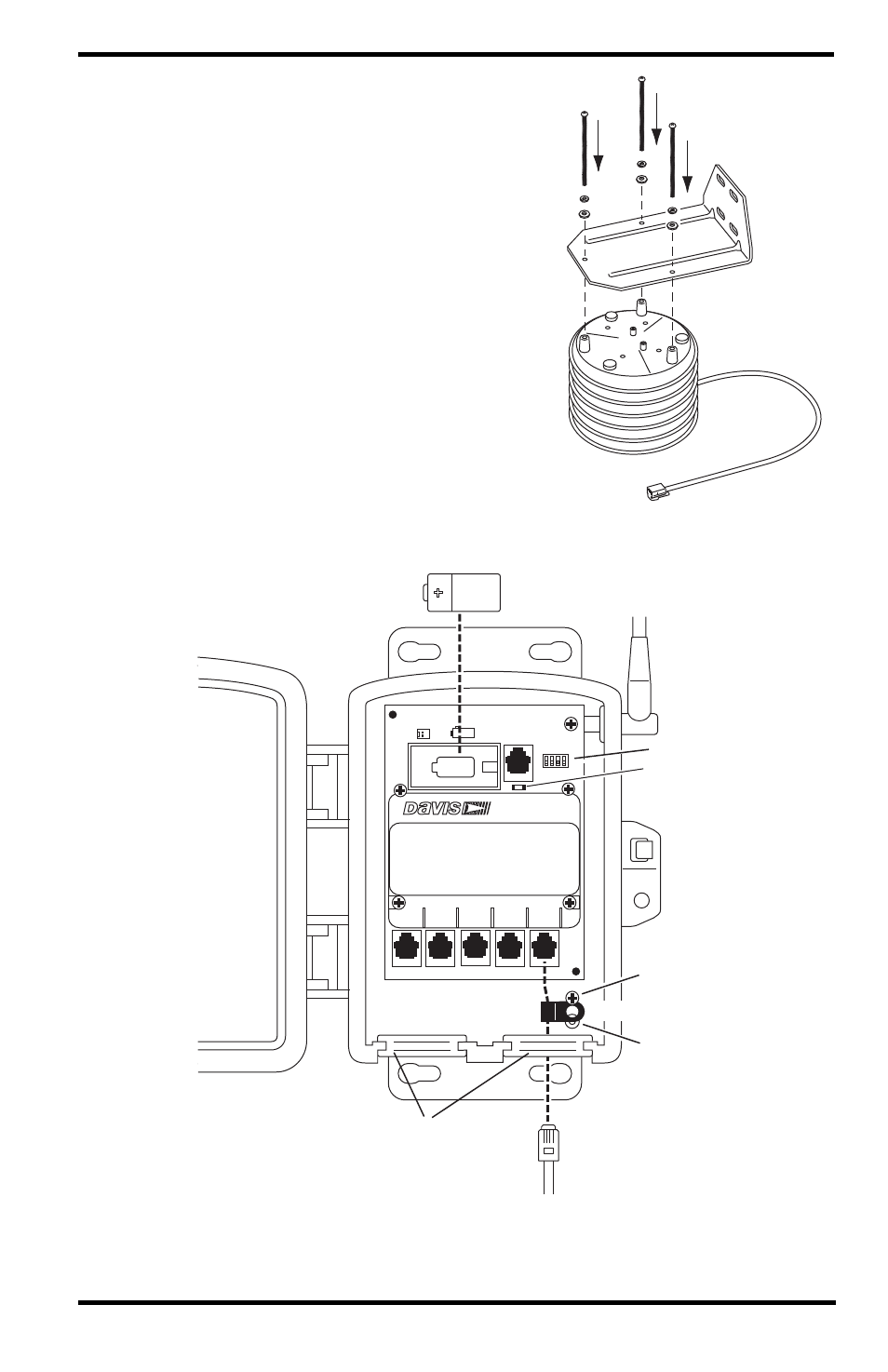

SIM Shelter open. Note positions of battery, DIP switches and Cable Clamp
Re-install
Mounting
Bracket
Radiation
Shield
Assembly
Lock Washers
Flat Washers
4" Bolts
3-Volt
Lithium Battery
DIP Switches
Cable Clamp
Mount
Temp/Hum Sensor Cable
from Radiation Shield
Square Black Grommets
SENSOR SENSOR
INTERFACE INTERFACE
MODULE MODULE
UV UV SUN SUN RAIN RAIN WIND WIND
TEMP TEMP
HUM HUM
+
-
Cable Clamp
Test LED
Cable Clamp
Screw
