Tighten all four sets of washers and hex nuts until the mounting bracket is firmly
mounted on the pole.
3. Next, install the SIM Shelter. While holding the shelter against the pole, place a
U-bolt around the pole and through the two holes on at the top of the shelter.
4. Place a flat washer, a lock washer and a hex nut on each of the bolt ends.
5. Using an adjustable wrench or 7/16" wrench, tighten the nuts.
6. Place the second U-bolt around the pole and through the two holes at the bottom
of the shelter.
7. Put a flat washer, a lock washer, and a hex nut on each bolt end, and tighten the
hex nuts.
8. Use 8”Cable Ties to secure sensor cable to pole to prevent fraying in wind.

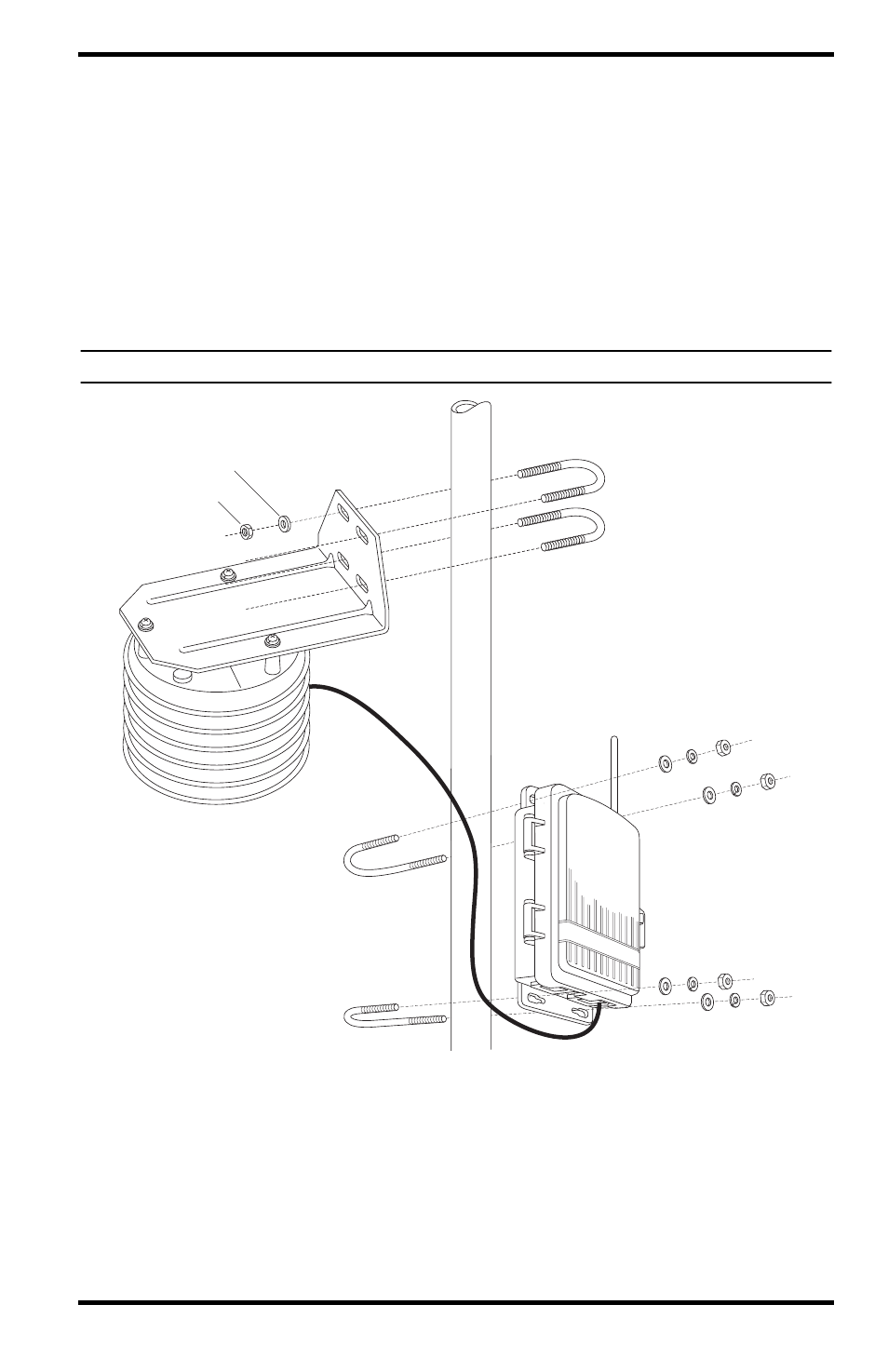

Note: Review the illustration below to see how the Temp/Hum Station is mounted on a pole.
Mounting on a Pole
Mounting on a Vertical Surface
1. Using four 1/4" x 1-1/2" lag screws, attach the mounting bracket to the surface in
the desired location.
Drill holes using a 3/16" (5 mm) drill bit. Use a carpenter’s level when marking the
holes, to ensure that the bracket will be level.
Flat
Washer
Lock
Washer
Hex
Nut
1/4" Flat Washer
2-1/8" U-Bolts
1/4" Hex Nut
Sensor Cable
2-1/8" U-Bolts
