2
Tools for Setup
In addition to the hardware provided, you will need some or all of the following
materials:
• Small phillips head screwdriver
• Adjustable wrench or 7/16" wrench
• Ballpoint pen or paper clip (small pointed object of some kind)
• Drill and 3/16" (5 mm) drill bit (if mounting on a flat, vertical surface)
Installation Steps
For ease of installation, please follow the steps in the order presented.
• Preparing the Temp/Hum Station, page 2
• Rotating the Mounting Bracket, page 2
• Applying Power, page 4
• Setting the Transmitter ID, page 4
• Setting Console Station ID on the Console, page 5
• Setting the Console Station ID using WeatherLink, page 5
• Viewing Current Temperature and Humidity, page 5
• No Communication with Temp/Hum Station, page 6
• Choosing a Location for the Temp/Hum Station, page 7
• Testing Transmission from Proposed Location, page 7
• Mounting the Temp/Hum Station, page 7
• A Note on Securing Cables, page 10
For maintenance information, see “Maintenance” on page 10. For Technical Support,
see “Contacting Davis Instruments” on page 10. Product specifications are located
on page 11.
Preparing the Temp/Hum Station
Rotating the Mounting
Bracket.
To facilitate packing and shipping the
Temp/Hum Station, the mounting
bracket is installed upside down at the
factory. You will need to rotate the
mounting bracket 180° before you
install the station
1. Place the Temp/Hum Station on a
level surface.

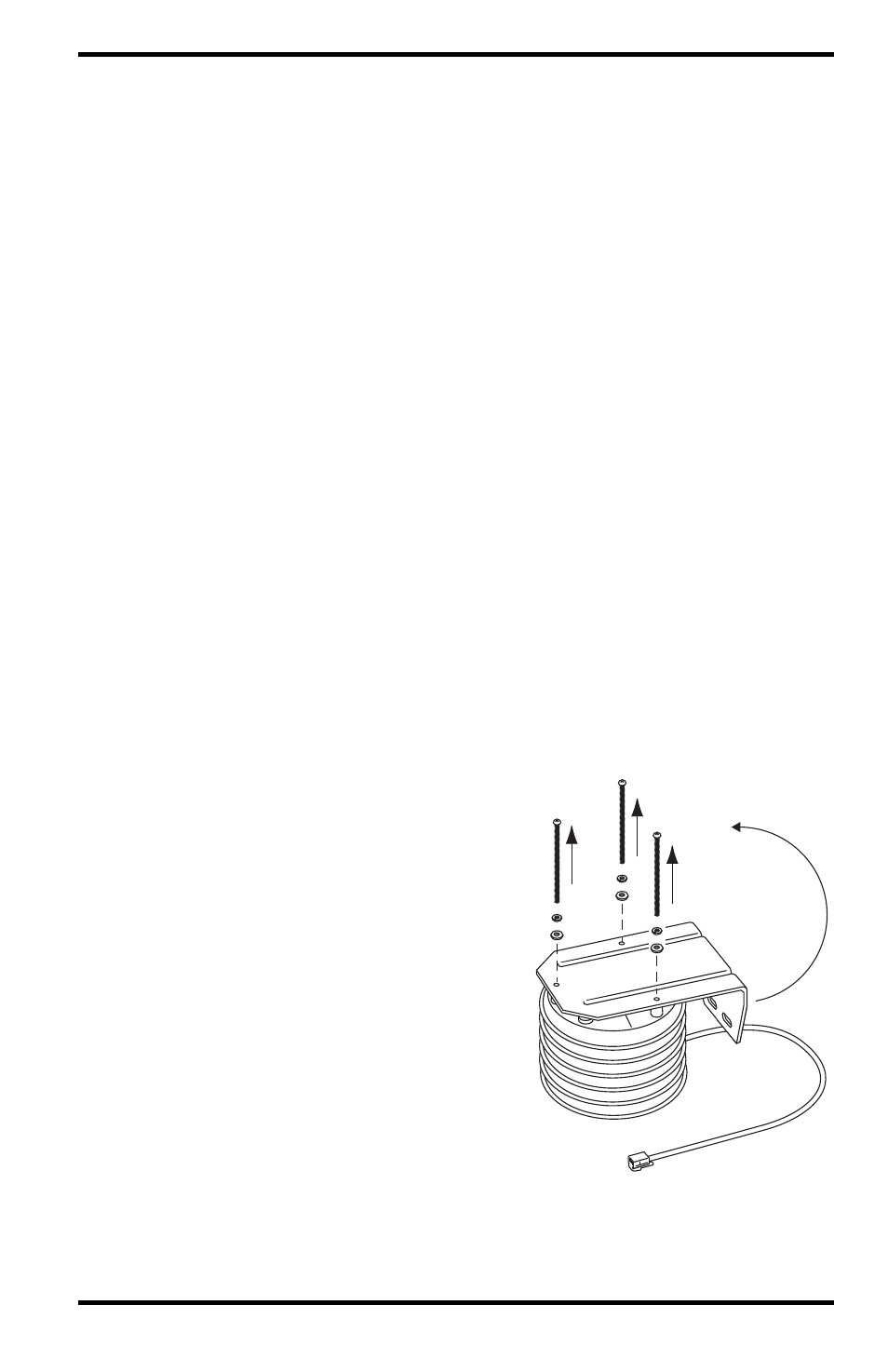

2. Loosen the three mounting screws
that hold the mounting bracket and
the radiation shield together as
shown in the illustration right.
Radiation
Shield
Assembly
Remove
and Flip
Mounting
Bracket
Remove
Mounting
Screws
