Reassembling the radiation shield – DAVIS Vantage Pro ISS Fan-Aspirated Add., 2003 & later User Manual
Page 9

Preparing the ISS for Installation
Page 9
Reassembling the Radiation Shield
1.
Make sure the Temp/Hum sensor cable runs through the provided cable
channels and that the fan unit is seated on the fan plate.
2.
Install the Junction Board Cover as shown in the illustration. The Junction
Board Cover presses easily into place when you are installing it.
Note: To remove the cover, press gently in on both sides to release the latches holding it in
place.
3.
Place the two radiation shield plates on top of the fan plate, open plate first
with the closed plate on top, being careful to line up the three screw holes.
Fan Unit
Fan Deflector
Motor Connector
Junction Board
Temp/Hum
Sensor Cable
Channel
Fan Plate
Temp/Hum
Sensor
Cable

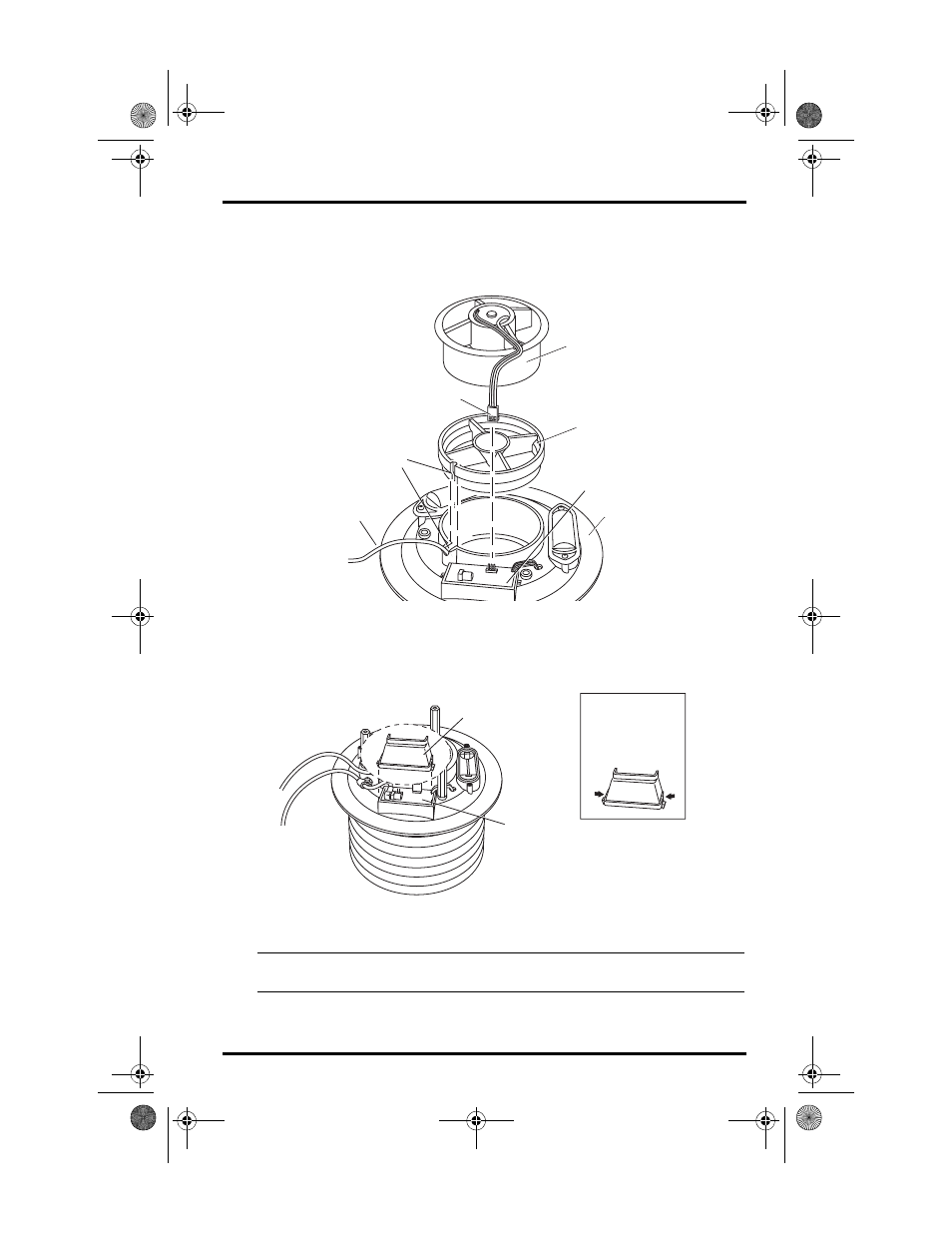

Sensor Cable Channel in Fan Plate and Fan Deflector
Junction Board
Cover
Junction
Board
Press in on Sides
near latches to
install or remove
cover.
Note:
Junction Board Cover Installation
ISS Fan Rev B.fm Page 9 Thursday, November 14, 2002 4:29 PM
