Outbuilding” system configuration – DAVIS GroWeather/EnviroMonitor: Systems Installation User Manual
Page 22
System Installation
Page 22
Industrial System Installation Manual
“Outbuilding” System Configuration

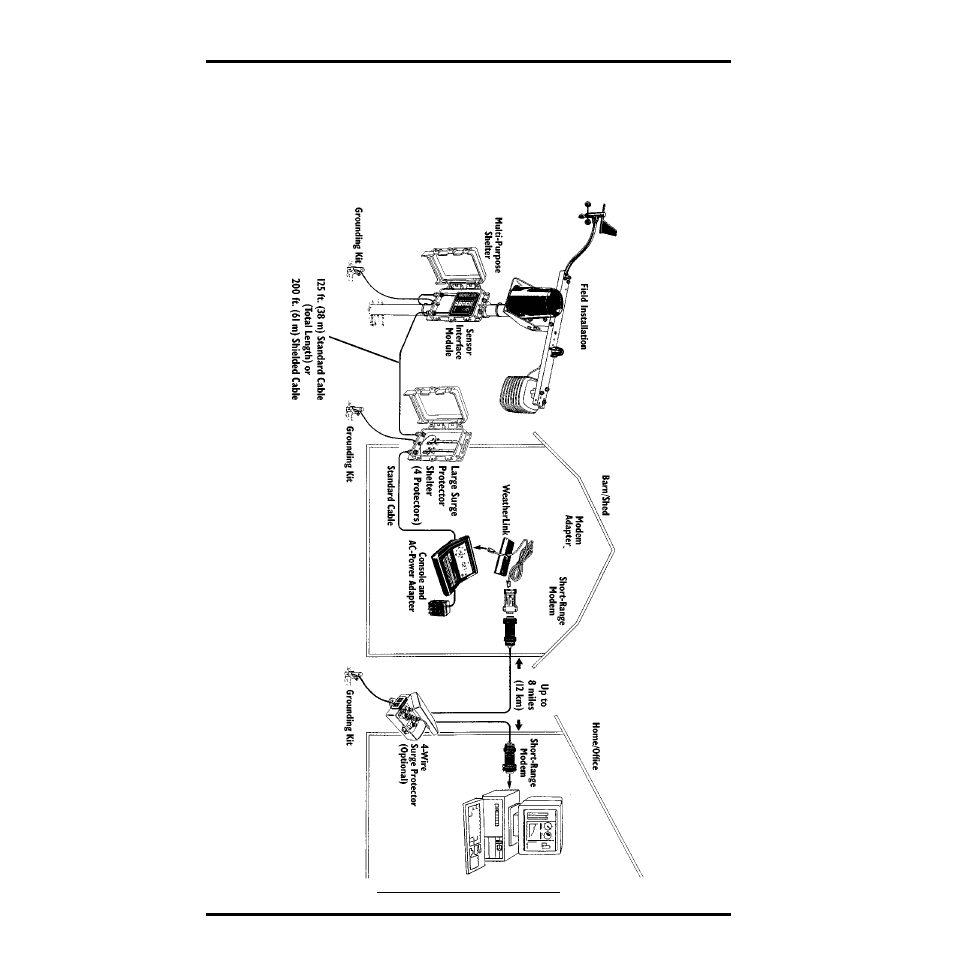

This variation of the “Field System Installation” (page 16) places the console
and WeatherLink in a barn or other shelter and then uses a Short-Range
Modem Pair (or radio) to communicate with the computer at the “central” site.
The figure below shows the use of Surge Protectors (optional) on the SIM-to-
console and WeatherLink cables.
“O
UTBUILDING
” S
YSTEM
C
ONFIGURATION
