Displaying the Console
Industrial System Installation Manual Page 11

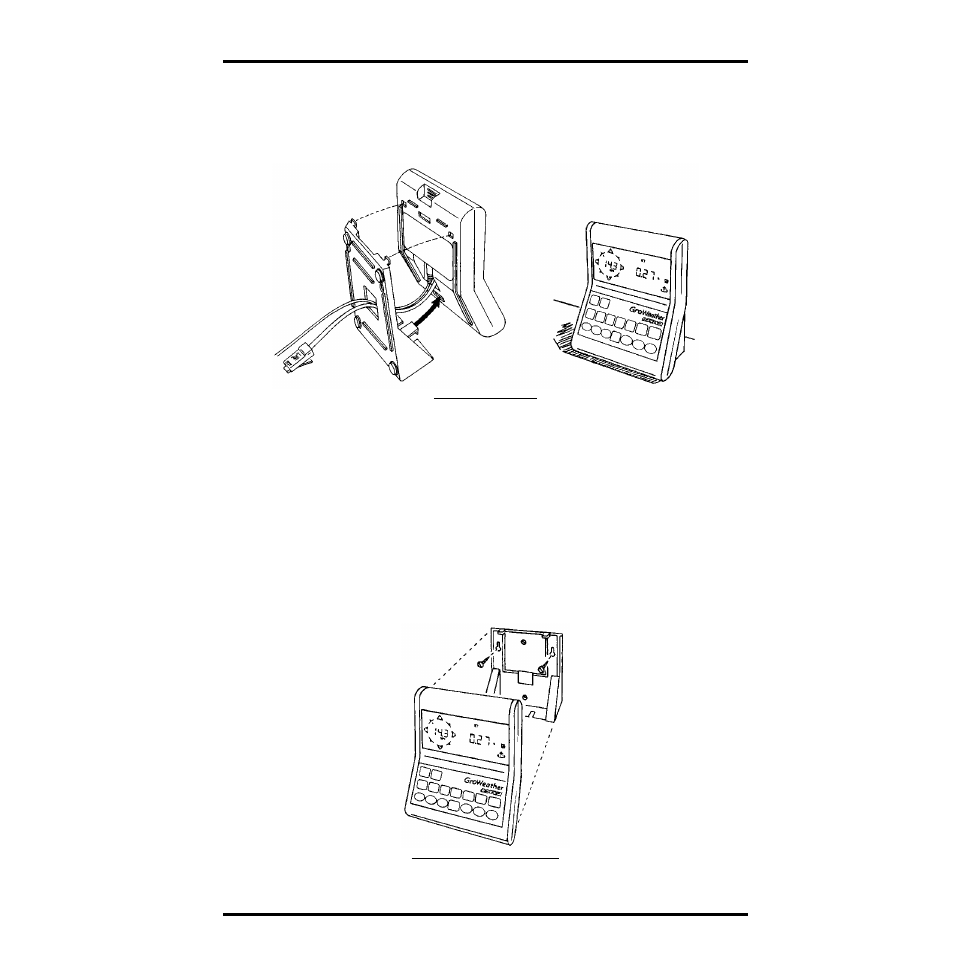

“ Vertical” Orientation
Use this mounting base orientation if the console’s LCD will be at or above eye
level once the console is positioned. Attach the mounting base as shown below
and then place the console onto any flat surface.
V ERTICAL O RIENTATION
To Display the Console on a Wall
If you want to attach the console to a wall, follow the instructions below.
1. Mark the location of the two keyholes on the back of the mounting base.
2. Use a drill with a #29 (.136” or 3.5-mm) drill bit to make pilot holes in these locations.
3. Drive the two #8 x 3/4” pan head screws into the wall.
Leave at least 1/8” (3 mm) between the wall and the heads of the screw.
4. Attach the mounting base to the console in the vertical orientation position.
5. Slide the keyholes on the back of the mounting base over the two screw heads. Lock
the console into place by gently sliding it downward until it no longer moves.
A TTACHING C ONSOLE TO A W ALL
