JKS9602 JKS Shock Conversion Installation 2 Page
 While still secured in vice, completely thread
the M20 Nylock Nut (B) onto threaded stud and
remove. HINT: This cuts a groove in the Nylock
material, making final installation easier.
‰ 3. RE-INSTALL SHOCK ABSORBERS
 Insert threaded stud of Shock Conversion (A)
through original shock mounting hole in upper
fender well of vehicle.

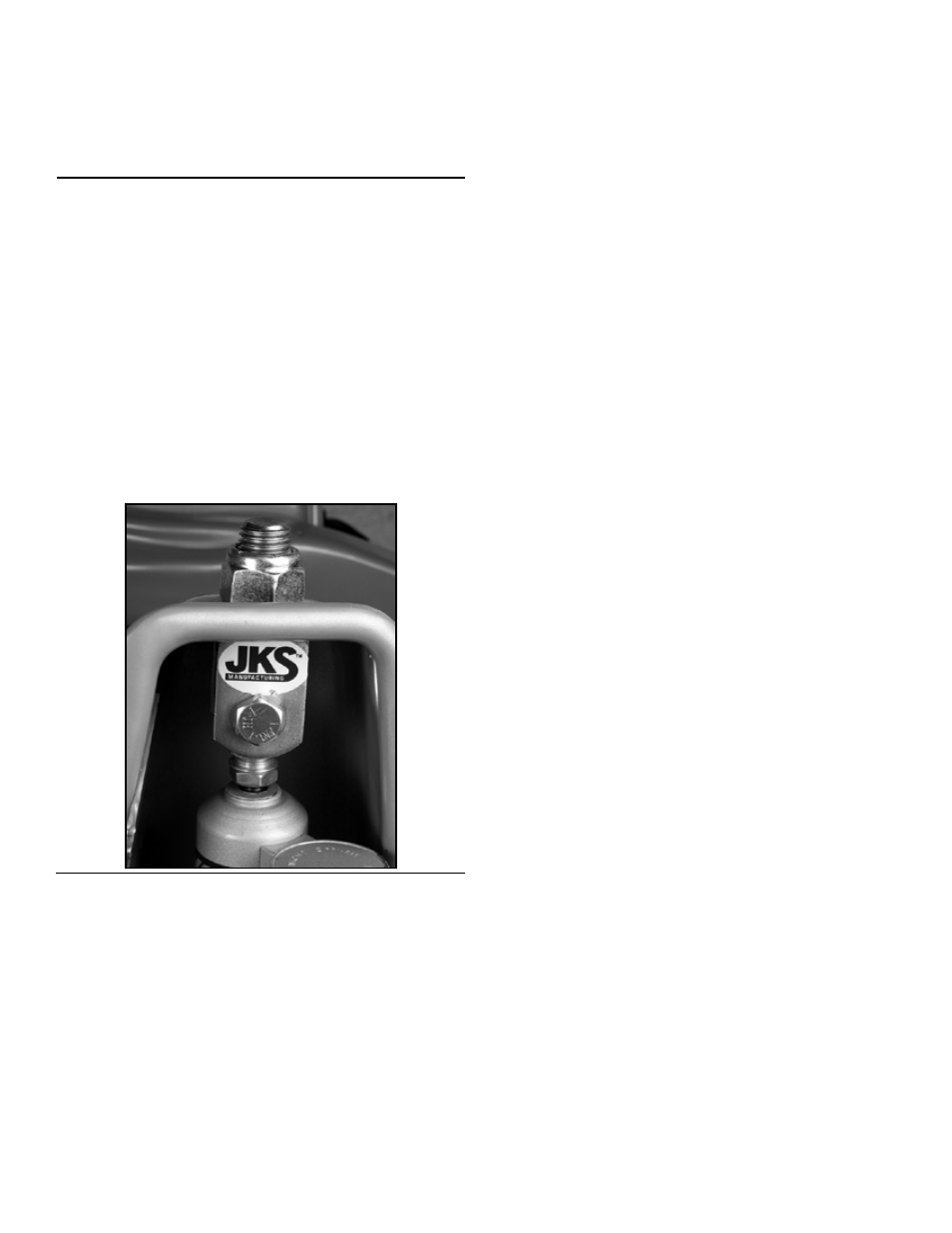

IMPORTANT: Shock Conversion must be positioned
with the JKS decal facing you (away from vehicle).
 Install the M20 Nylock Nut (B) onto threaded stud
of Shock Conversion (A) from above the shock
mounting bracket. HINT: Shock may be used as
a lever to hold Shock Conversion in position while
installing Nylock Nut.
 Tighten the M20 Nylock Nut (B) to 80 ft-lbs.
 Install shock absorber to lower mount per factory
service manual instructions.
©2013 JKS Manufacturing, Inc & Aftermarketing, LLC
Revision Date 10/30/2013
