c. If you are active LACP’s actor, when you are select trunking port, the active
status will be created automatically.

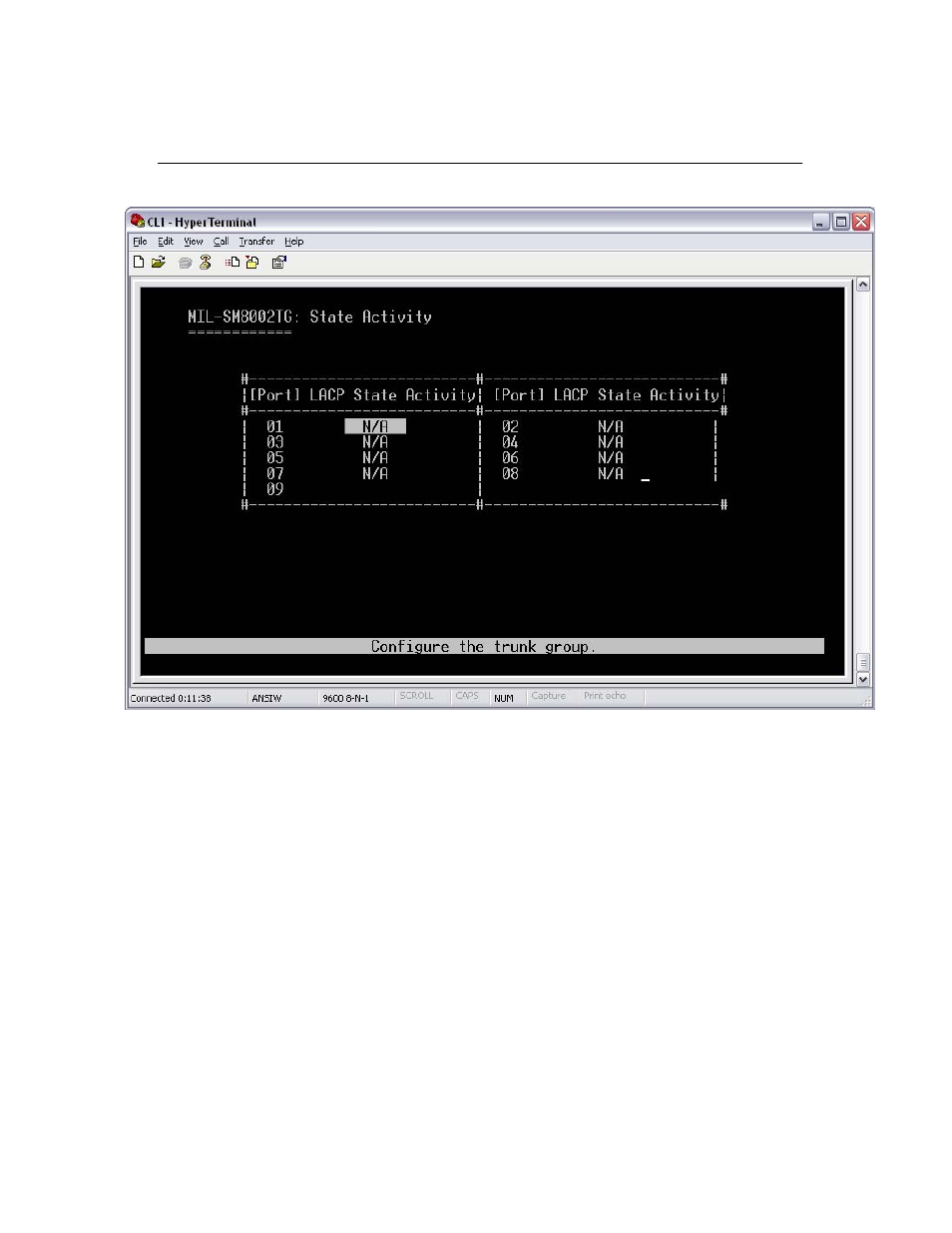

Trunk Configuration ─ State Activity
Port Mirroring Configuration
The port mirroring is a method for monitor traffic of switched networks. The specific port
can monitor traffic through the mirror ports. The monitored ports in or out traffic will be
duplicated into monitoring port.
1. Analysis Port (TX): It’s mean mirror port can be used to see all monitor port traffic.
You can connect mirror port to LAN analyzer or Netxray.
2. Analysis Port (RX): Set the destination port of mirroring packet. All of the packets of
mirroring port will be duplicated and sent to Analysis port.
3. Source Port (TX/RX): select the monitor mode of each port. You can choose which
