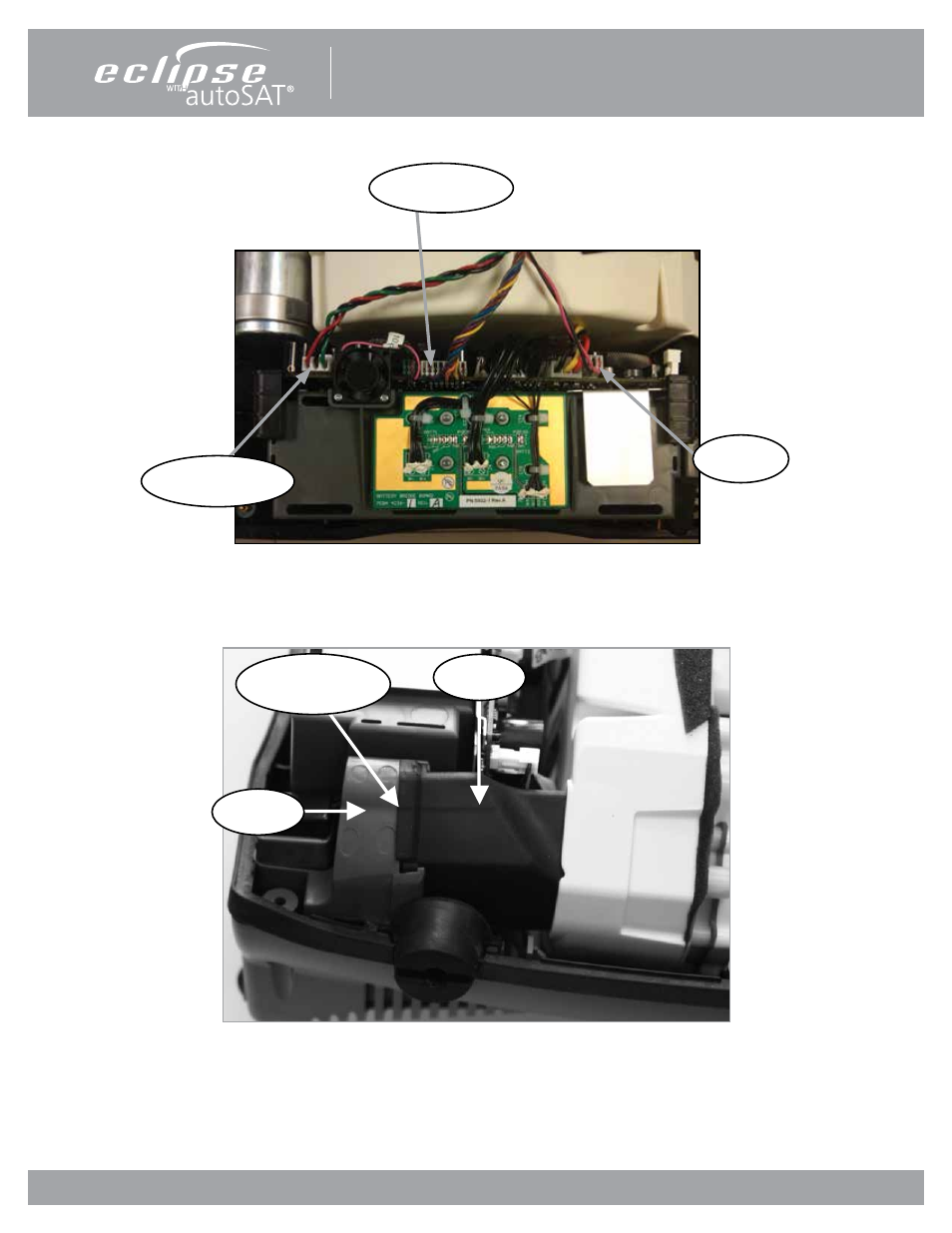

3. Disconnect the 3 wire harnesses shown in Figure 56.
Figure 56: Compressor Box electrical connections.
4. Remove the Exhaust Tube as shown in Figure 57.
Figure 57: Exhaust Tube Removal.
Exhaust
Tube
Verify Engagement
During Installation
Exhaust
Duct
Blower Wire
Harness
Compressor Power
Wire Harness
Compressor Signal
Wire Harness
